Operation / set-up
96

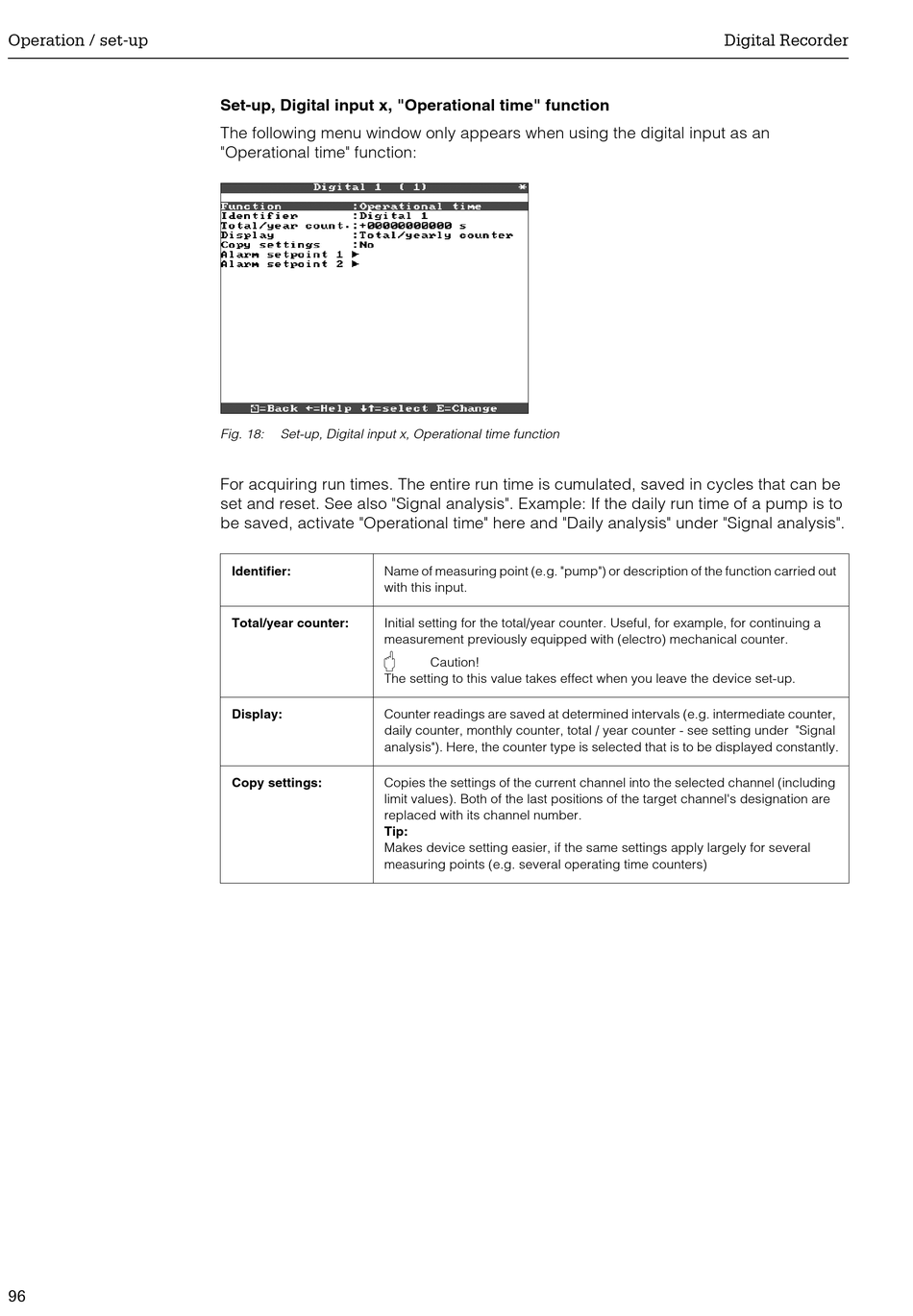

Set-up, Digital input x, "Operational time" function
The following menu window only appears when using the digital input as an
"Operational time" function:
Fig. 18: Set-up, Digital input x, Operational time function
For acquiring run times. The entire run time is cumulated, saved in cycles that can be
set and reset. See also "Signal analysis". Example: If the daily run time of a pump is to
be saved, activate "Operational time" here and "Daily analysis" under "Signal analysis".
Identifier: Name of measuring point (e.g. "pump") or description of the function carried out
with this input.
Total/year counter: Initial setting for the total/year counter. Useful, for example, for continuing a
measurement previously equipped with (electro) mechanical counter.
"
The setting to this value takes effect when you leave the device set-up.
Display: Counter readings are saved at determined intervals (e.g. intermediate counter,
daily counter, monthly counter, total / year counter - see setting under "Signal
analysis"). Here, the counter type is selected that is to be displayed constantly.
Copy settings: Copies the settings of the current channel into the selected channel (including
limit values). Both of the last positions of the target channel's designation are
replaced with its channel number.
Tip:
Makes device setting easier, if the same settings apply largely for several
measuring points (e.g. several operating time counters)
Caution!
