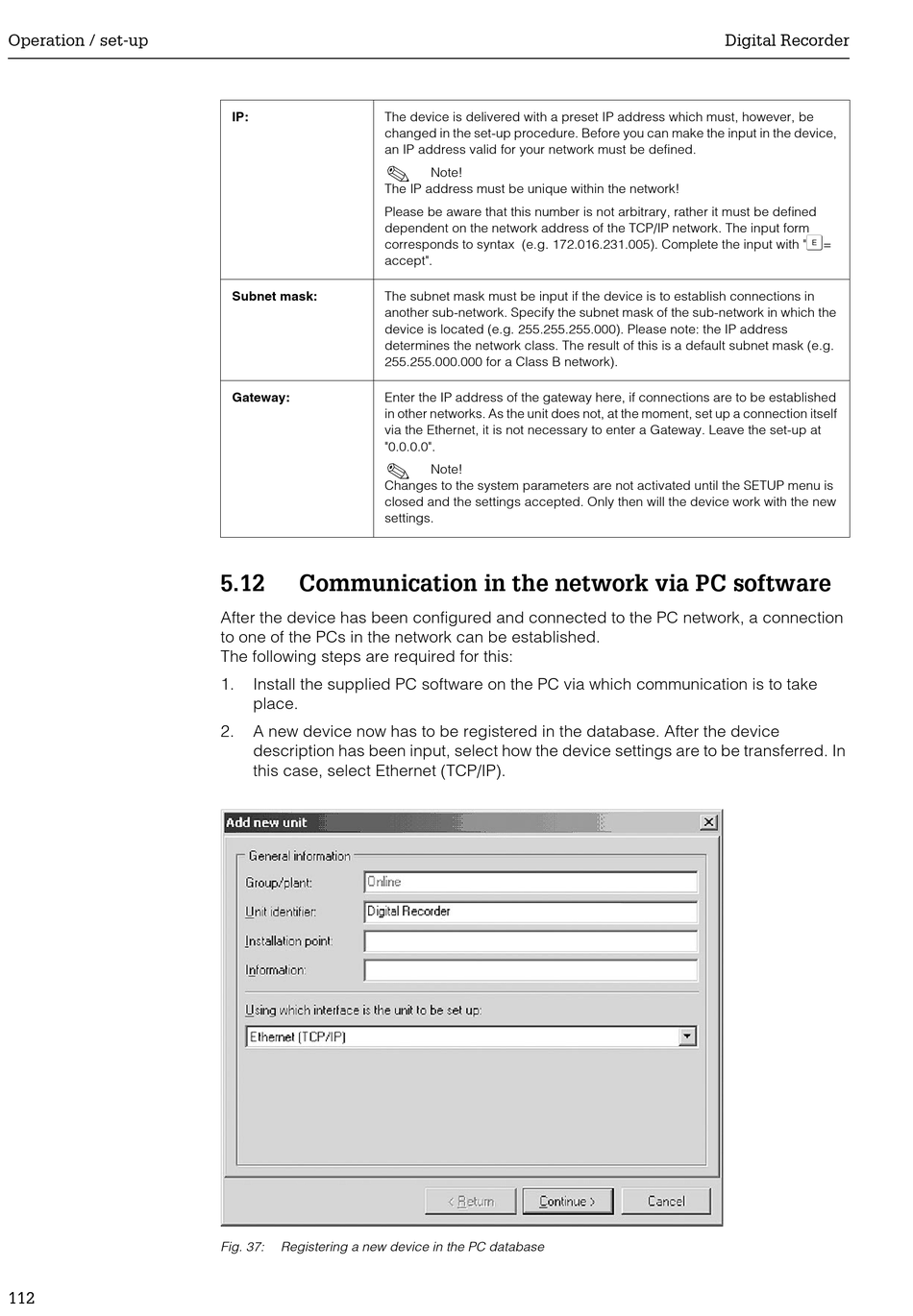

Operation / set-up
112
The device is delivered with a preset IP address which must, however, be
IP:
changed in the set-up procedure. Before you can make the input in the device,
an IP address valid for your network must be defined.
!
The IP address must be unique within the network!
Please be aware that this number is not arbitrary, rather it must be defined
dependent on the network address of the TCP/IP network. The input form
corresponds to syntax (e.g. 172.016.231.005). Complete the input with "
accept".
Subnet mask: The subnet mask must be input if the device is to establish connections in
another sub-network. Specify the subnet mask of the sub-network in which the
device is located (e.g. 255.255.255.000). Please note: the IP address
determines the network class. The result of this is a default subnet mask (e.g.
255.255.000.000 for a Class B network).
Gateway: Enter the IP address of the gateway here, if connections are to be established
in other networks. As the unit does not, at the moment, set up a connection itself
via the Ethernet, it is not necessary to enter a Gateway. Leave the set-up at
"0.0.0.0".
!
Changes to the system parameters are not activated until the SETUP menu is
closed and the settings accepted. Only then will the device work with the new
settings.
5.12 Communication in the network via PC software
After the device has been configured and connected to the PC network, a connection
to one of the PCs in the network can be established.
The following steps are required for this:
1. Install the supplied PC software on the PC via which communication is to take
place.
2. A new device now has to be registered in the database. After the device
description has been input, select how the device settings are to be transferred. In
this case, select Ethernet (TCP/IP).
Fig. 37: Registering a new device in the PC database
