Digital Recorder
!

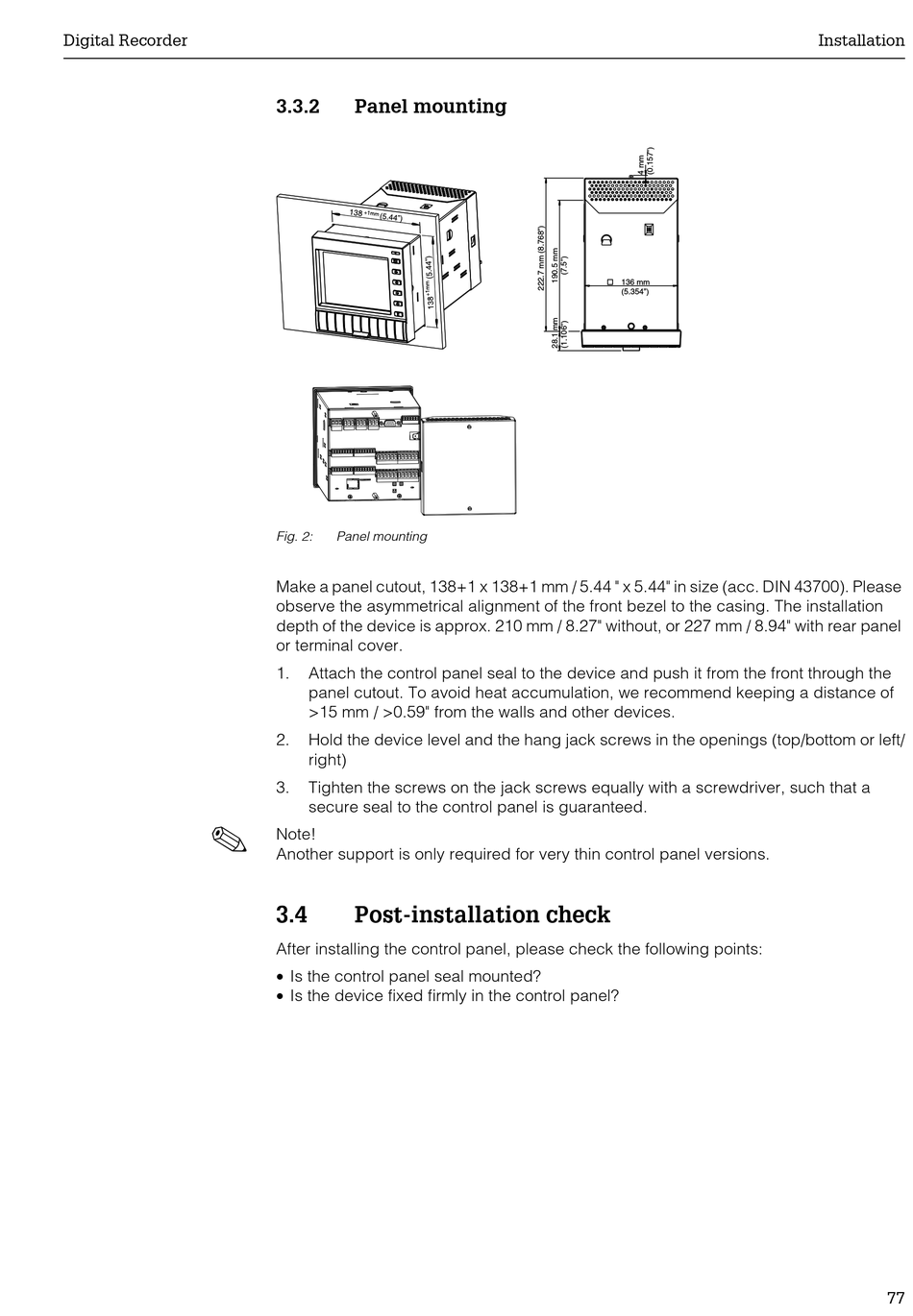

3.3.2 Panel mounting
Fig. 2: Panel mounting
Make a panel cutout, 138+1 x 138+1 mm / 5.44 " x 5.44" in size (acc. DIN 43700). Please
observe the asymmetrical alignment of the front bezel to the casing. The installation
depth of the device is approx. 210 mm / 8.27" without, or 227 mm / 8.94" with rear panel
or terminal cover.
1. Attach the control panel seal to the device and push it from the front through the
panel cutout. To avoid heat accumulation, we recommend keeping a distance of
>15 mm / >0.59" from the walls and other devices.
2. Hold the device level and the hang jack screws in the openings (top/bottom or left/
right)
3. Tighten the screws on the jack screws equally with a screwdriver, such that a
secure seal to the control panel is guaranteed.
Note!
Another support is only required for very thin control panel versions.
3.4 Post-installation check
After installing the control panel, please check the following points:
• Is the control panel seal mounted?
• Is the device fixed firmly in the control panel?
136 mm
(5.354")
Installation
77
