Operation / set-up
100
Copy settings: Copies the settings for this calculation into the selected calculation (incl. limit
values). Both of the last positions of the target channel's designation are
replaced with its channel number.
Tip:
Makes device setting easier, if the same settings apply largely for several
combinations (e.g. several counter sums).
Alarm setpoint x: Settings only required if the result of the combination is also to be monitored for
limit values.
For detailed settings, see digital input limit value settings.
Set-up, Calculation x, "Sum/average" task
The following menu window only appears when using the calculation as a "Sum/
average" task:

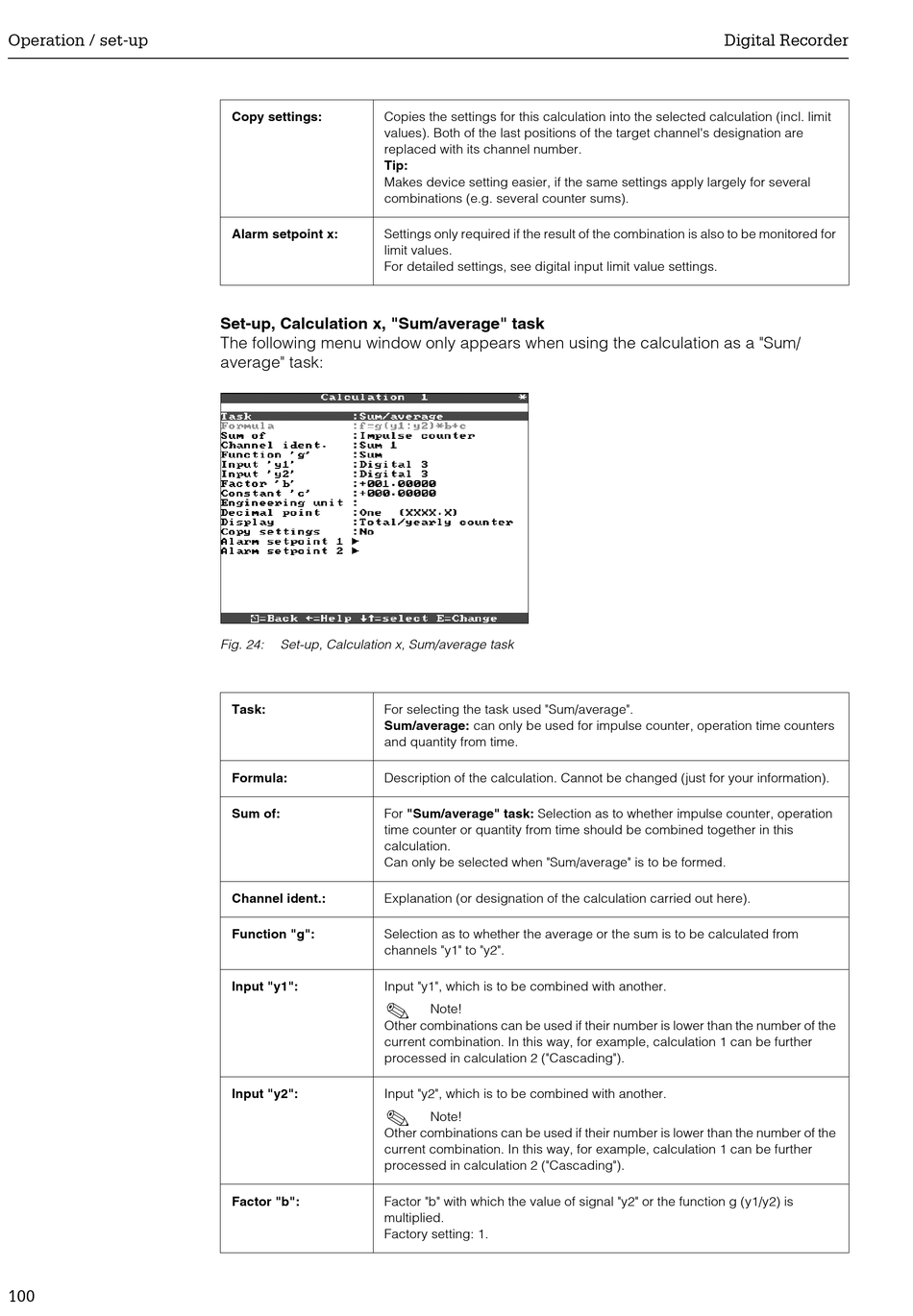

Fig. 24: Set-up, Calculation x, Sum/average task
Task: For selecting the task used "Sum/average".
Sum/average: can only be used for impulse counter, operation time counters
and quantity from time.
Formula: Description of the calculation. Cannot be changed (just for your information).
Sum of: For "Sum/average" task: Selection as to whether impulse counter, operation
time counter or quantity from time should be combined together in this
calculation.
Can only be selected when "Sum/average" is to be formed.
Explanation (or designation of the calculation carried out here).
Channel ident.:
Function "g": Selection as to whether the average or the sum is to be calculated from
channels "y1" to "y2".
Input "y1": Input "y1", which is to be combined with another.
!
Other combinations can be used if their number is lower than the number of the
current combination. In this way, for example, calculation 1 can be further
processed in calculation 2 ("Cascading").
Input "y2": Input "y2", which is to be combined with another.
!
Other combinations can be used if their number is lower than the number of the
current combination. In this way, for example, calculation 1 can be further
processed in calculation 2 ("Cascading").
Factor "b": Factor "b" with which the value of signal "y2" or the function g (y1/y2) is
multiplied.
Factory setting: 1.
Note!
Note!
