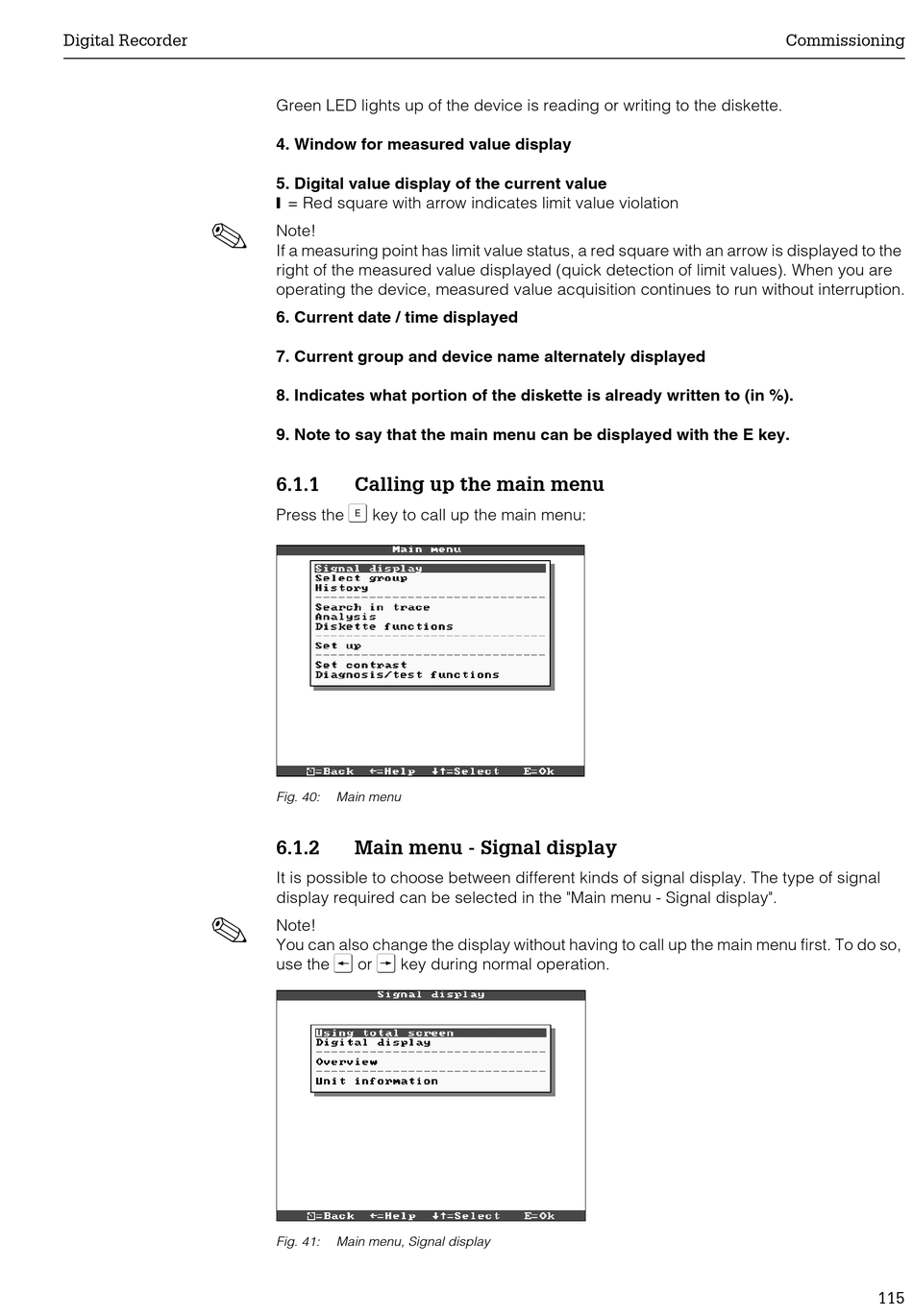

Digital Recorder
!
!
Green LED lights up of the device is reading or writing to the diskette.
4. Window for measured value display
5. Digital value display of the current value
❙ = Red square with arrow indicates limit value violation
Note!
If a measuring point has limit value status, a red square with an arrow is displayed to the
right of the measured value displayed (quick detection of limit values). When you are
operating the device, measured value acquisition continues to run without interruption.
6. Current date / time displayed
7. Current group and device name alternately displayed
8. Indicates what portion of the diskette is already written to (in %).
9. Note to say that the main menu can be displayed with the E key.
6.1.1 Calling up the main menu
F
Press the key to call up the main menu:
Fig. 40: Main menu
6.1.2 Main menu - Signal display
It is possible to choose between different kinds of signal display. The type of signal
display required can be selected in the "Main menu - Signal display".
Note!
You can also change the display without having to call up the main menu first. To do so,
U T
use the or key during normal operation.
Fig. 41: Main menu, Signal display
Commissioning
