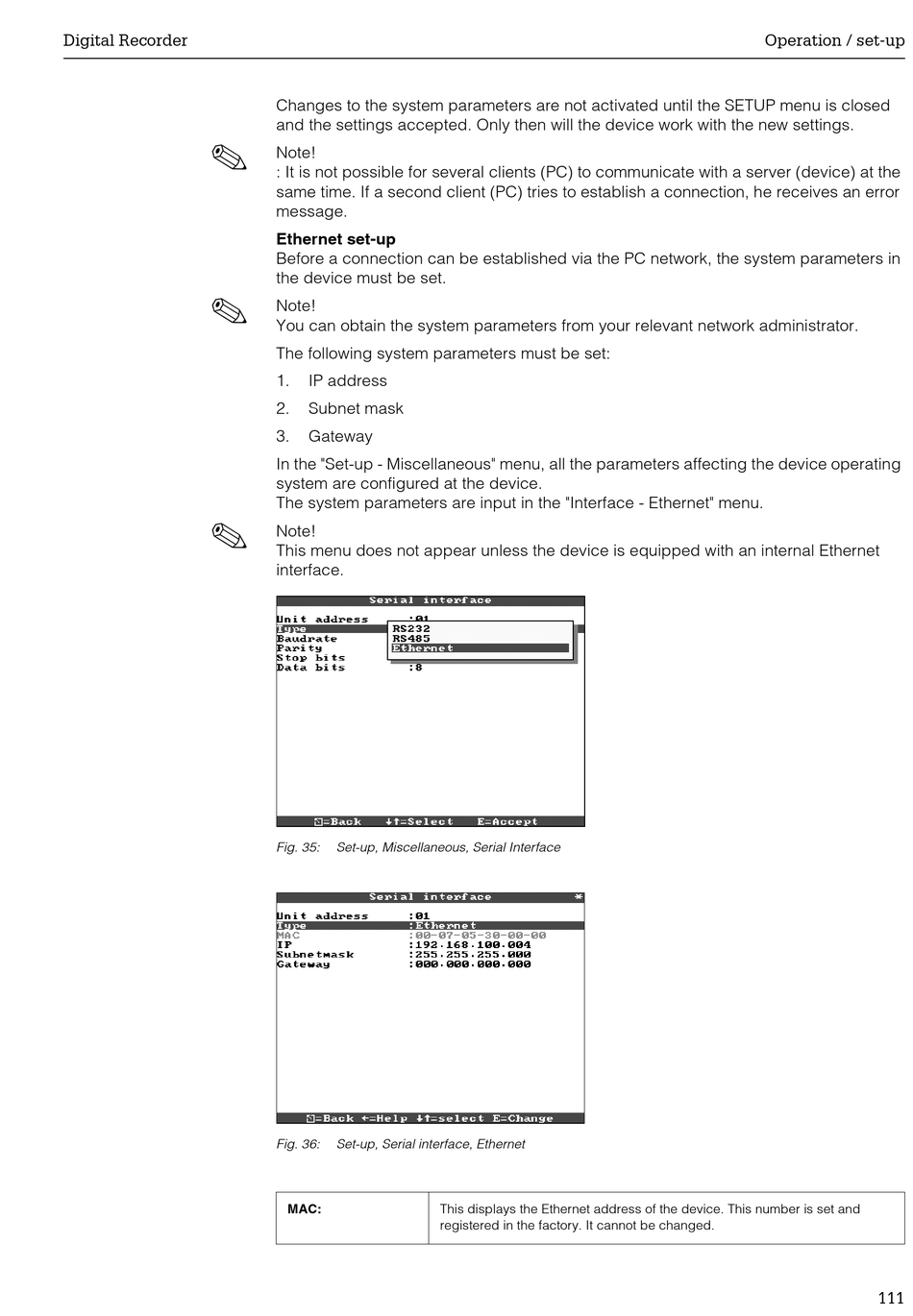

Digital Recorder
!
!
!
Changes to the system parameters are not activated until the SETUP menu is closed
and the settings accepted. Only then will the device work with the new settings.
Note!
: It is not possible for several clients (PC) to communicate with a server (device) at the
same time. If a second client (PC) tries to establish a connection, he receives an error
message.
Ethernet set-up
Before a connection can be established via the PC network, the system parameters in
the device must be set.
Note!
You can obtain the system parameters from your relevant network administrator.
The following system parameters must be set:
1. IP address
2. Subnet mask
3. Gateway
In the "Set-up - Miscellaneous" menu, all the parameters affecting the device operating
system are configured at the device.
The system parameters are input in the "Interface - Ethernet" menu.
Note!
This menu does not appear unless the device is equipped with an internal Ethernet
interface.
Fig. 35: Set-up, Miscellaneous, Serial Interface
Fig. 36: Set-up, Serial interface, Ethernet
MAC: This displays the Ethernet address of the device. This number is set and
registered in the factory. It cannot be changed.
Operation / set-up
