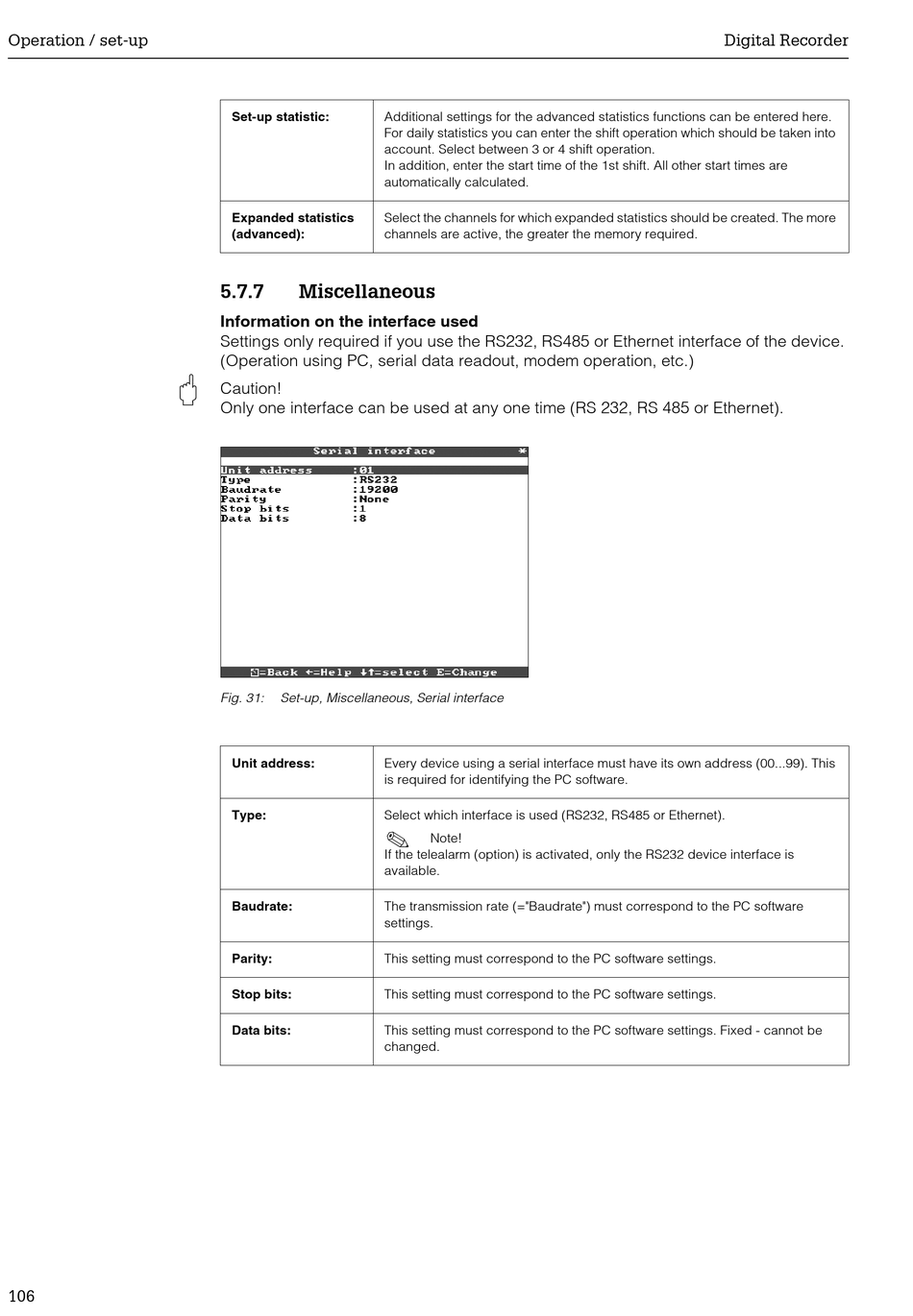

Operation / set-up
"
106
Set-up statistic: Additional settings for the advanced statistics functions can be entered here.
For daily statistics you can enter the shift operation which should be taken into
account. Select between 3 or 4 shift operation.
In addition, enter the start time of the 1st shift. All other start times are
automatically calculated.
Expanded statistics Select the channels for which expanded statistics should be created. The more
(advanced): channels are active, the greater the memory required.
5.7.7 Miscellaneous
Information on the interface used
Settings only required if you use the RS232, RS485 or Ethernet interface of the device.
(Operation using PC, serial data readout, modem operation, etc.)
Caution!
Only one interface can be used at any one time (RS 232, RS 485 or Ethernet).
Fig. 31: Set-up, Miscellaneous, Serial interface
Unit address: Every device using a serial interface must have its own address (00...99). This
is required for identifying the PC software.
Type: Select which interface is used (RS232, RS485 or Ethernet).
!
If the telealarm (option) is activated, only the RS232 device interface is
available.
Baudrate: The transmission rate (="Baudrate") must correspond to the PC software
settings.
Parity: This setting must correspond to the PC software settings.
Stop bits: This setting must correspond to the PC software settings.
Data bits: This setting must correspond to the PC software settings. Fixed - cannot be
changed.
Note!
