Installation
"
76

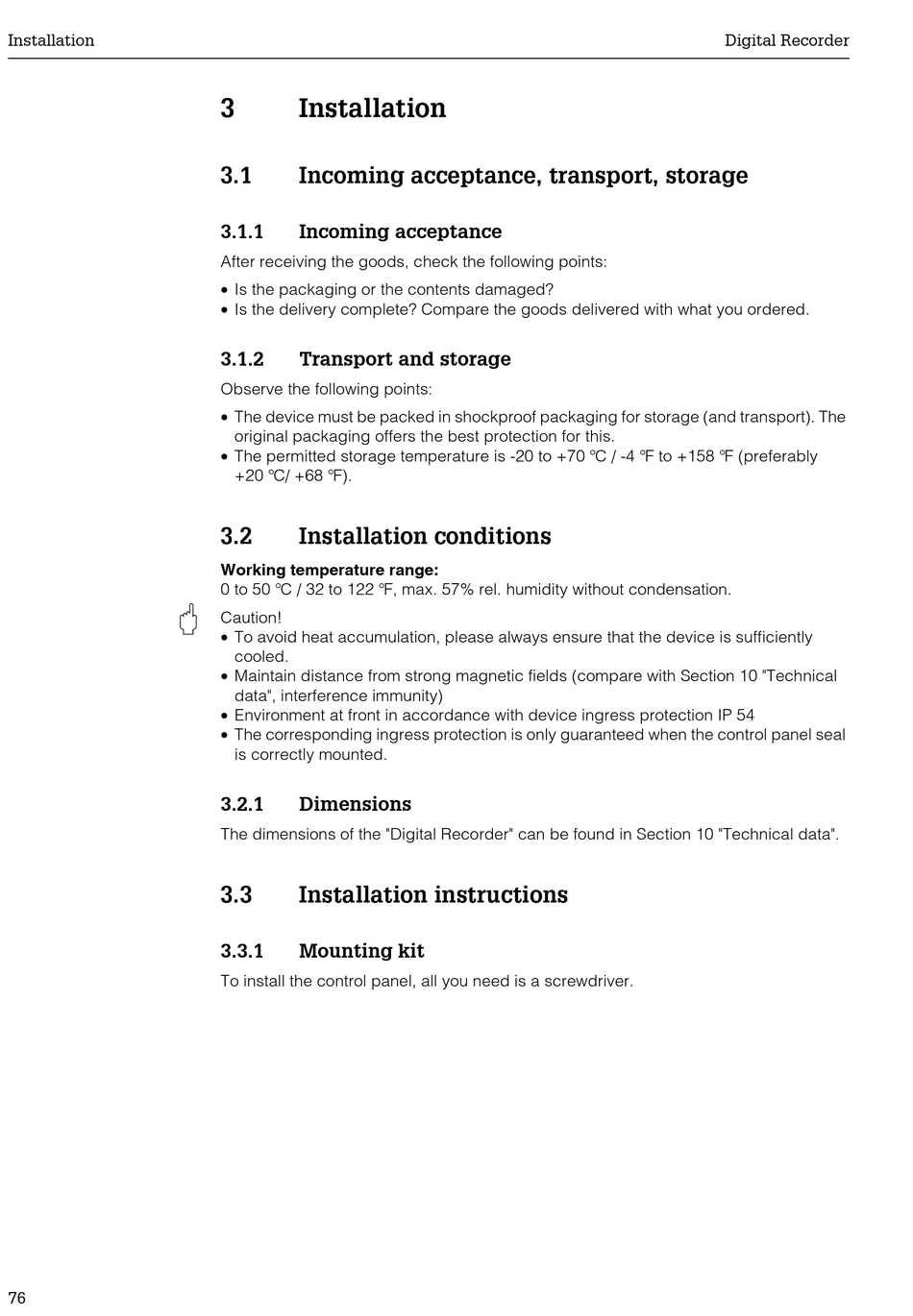

3 Installation
3.1 Incoming acceptance, transport, storage
3.1.1 Incoming acceptance
After receiving the goods, check the following points:
• Is the packaging or the contents damaged?
• Is the delivery complete? Compare the goods delivered with what you ordered.
3.1.2 Transport and storage
Observe the following points:
• The device must be packed in shockproof packaging for storage (and transport). The
original packaging offers the best protection for this.
• The permitted storage temperature is -20 to +70 °C / -4 °F to +158 °F (preferably
+20 °C/ +68 °F).
3.2 Installation conditions
Working temperature range:
0 to 50 °C / 32 to 122 °F, max. 57% rel. humidity without condensation.
Caution!
• To avoid heat accumulation, please always ensure that the device is sufficiently
cooled.
• Maintain distance from strong magnetic fields (compare with Section 10 "Technical
data", interference immunity)
• Environment at front in accordance with device ingress protection IP 54
• The corresponding ingress protection is only guaranteed when the control panel seal
is correctly mounted.
3.2.1 Dimensions
The dimensions of the "Digital Recorder" can be found in Section 10 "Technical data".
3.3 Installation instructions
3.3.1 Mounting kit
To install the control panel, all you need is a screwdriver.
