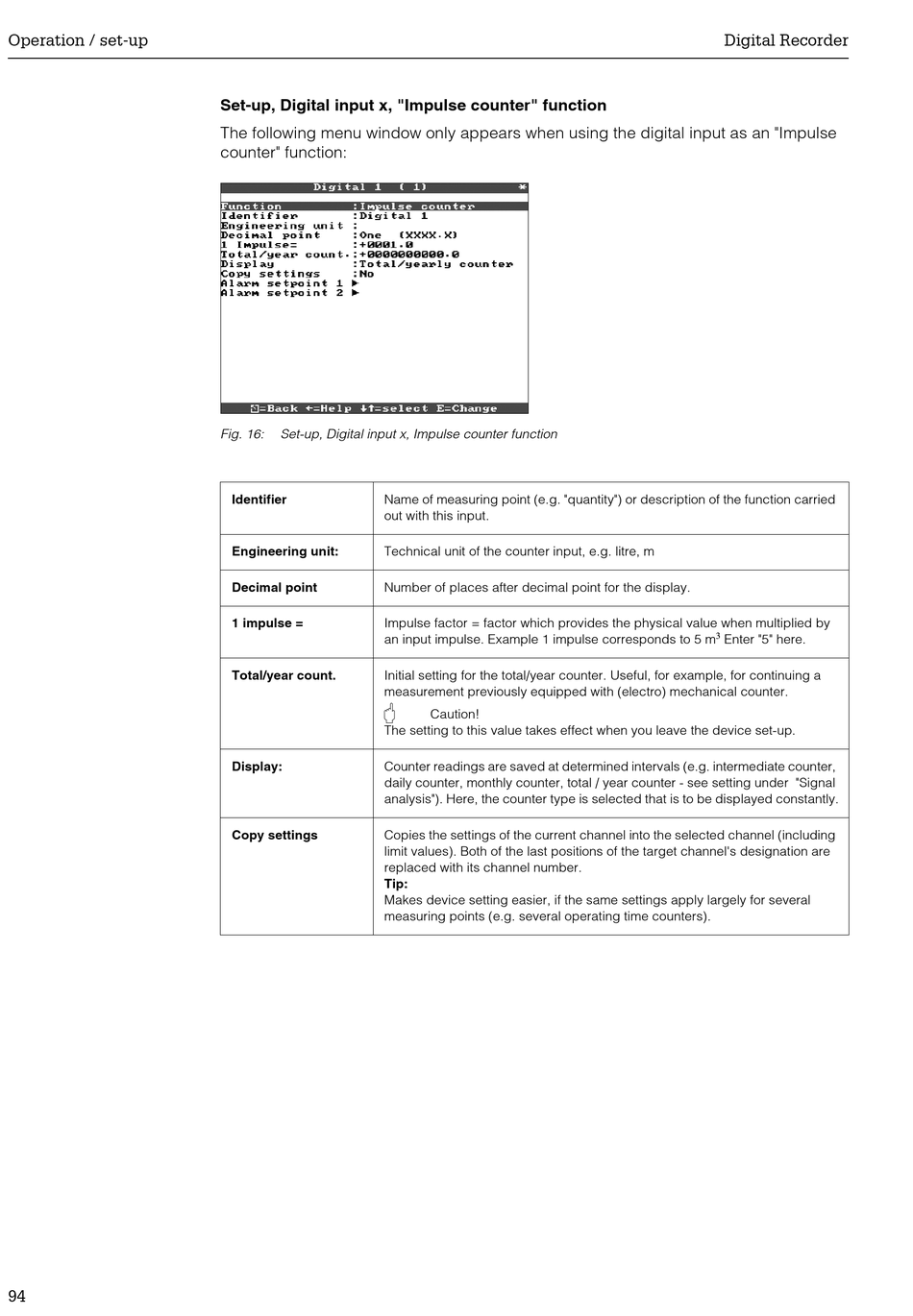

Set-up, Digital input x, "Impulse counter" function
The following menu window only appears when using the digital input as an "Impulse
counter" function:
Fig. 16: Set-up, Digital input x, Impulse counter function
Identifier Name of measuring point (e.g. "quantity") or description of the function carried
out with this input.
Engineering unit: Technical unit of the counter input, e.g. litre, m
Decimal point Number of places after decimal point for the display.
1 impulse = Impulse factor = factor which provides the physical value when multiplied by
an input impulse. Example 1 impulse corresponds to 5 m
Total/year count. Initial setting for the total/year counter. Useful, for example, for continuing a
measurement previously equipped with (electro) mechanical counter.
"
The setting to this value takes effect when you leave the device set-up.
Display: Counter readings are saved at determined intervals (e.g. intermediate counter,
daily counter, monthly counter, total / year counter - see setting under "Signal
analysis"). Here, the counter type is selected that is to be displayed constantly.
Copy settings Copies the settings of the current channel into the selected channel (including
limit values). Both of the last positions of the target channel's designation are
replaced with its channel number.
Tip:
Makes device setting easier, if the same settings apply largely for several
measuring points (e.g. several operating time counters).
Caution!
Digital Recorder
3
Enter "5" here.
