6. Maintenance
6.1

Recommended lubricants

Component Lubricant
Compressed air ESSO FEBIS K 32
system
Lever system WD 40
Tab. 8: Lubricant table
!
The manufacturer does not accept any liability for dam-
age arising from the use of lubricants with properties
differing from those specified (in the standard).
6.2

Cleaning and maintenance

DANGER - Risk of crushing by pressurized
components
Risk of crushing by sudden movements of
pressurized components.
¶
Prior to each cleaning or maintenance, the
TSL 230 must be disconnected from the
compressed air supply.
!
In order to guarantee the performance and proper
operation it is essentail to clean and maintain the
TSL 230 it on a regular basis TSL 230.
i
Service work must be performed by the operator
on the basis of the manufacturer's specifications as
outlined below.
6.2.1

Cleaning intervals

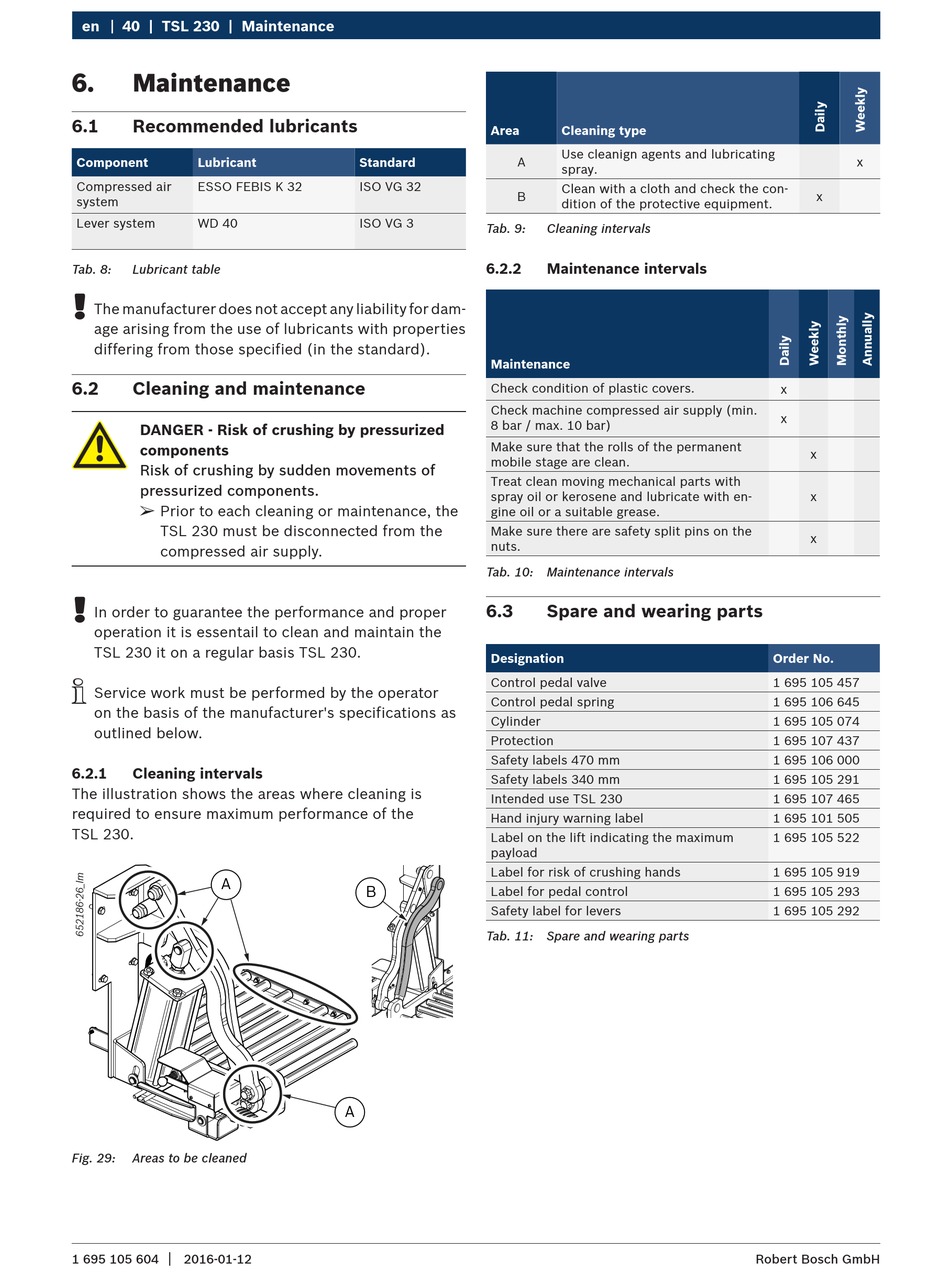

The illustration shows the areas where cleaning is
required to ensure maximum performance of the
TSL 230.
A
Fig. 29: Areas to be cleaned
|
1 695 105 604 2016-01-12
Area
Standard A
ISO VG 32
B
ISO VG 3
Tab. 9:
6.2.2
Maintenance
Check condition of plastic covers.
Check machine compressed air supply (min.
8 bar / max. 10 bar)
Make sure that the rolls of the permanent
mobile stage are clean.
Treat clean moving mechanical parts with
spray oil or kerosene and lubricate with en-
gine oil or a suitable grease.
Make sure there are safety split pins on the
nuts.
Tab. 10:
6.3
Designation
Control pedal valve
Control pedal spring
Cylinder
Protection
Safety labels 470 mm
Safety labels 340 mm
Intended use TSL 230
Hand injury warning label
Label on the lift indicating the maximum
payload
Label for risk of crushing hands
B
Label for pedal control
Safety label for levers
Tab. 11:
A
Cleaning type
Use cleanign agents and lubricating
spray.
Clean with a cloth and check the con-
dition of the protective equipment.
Cleaning intervals

Maintenance intervals

Maintenance intervals

Spare and wearing parts

Spare and wearing parts
x
x
x
x
x
x
x
Order No.
1 695 105 457
1 695 106 645
1 695 105 074
1 695 107 437
1 695 106 000
1 695 105 291
1 695 107 465
1 695 101 505
1 695 105 522
1 695 105 919
1 695 105 293
1 695 105 292
