7. Fasten the control pedal as shown in the following
illustration.
652186-09_Im

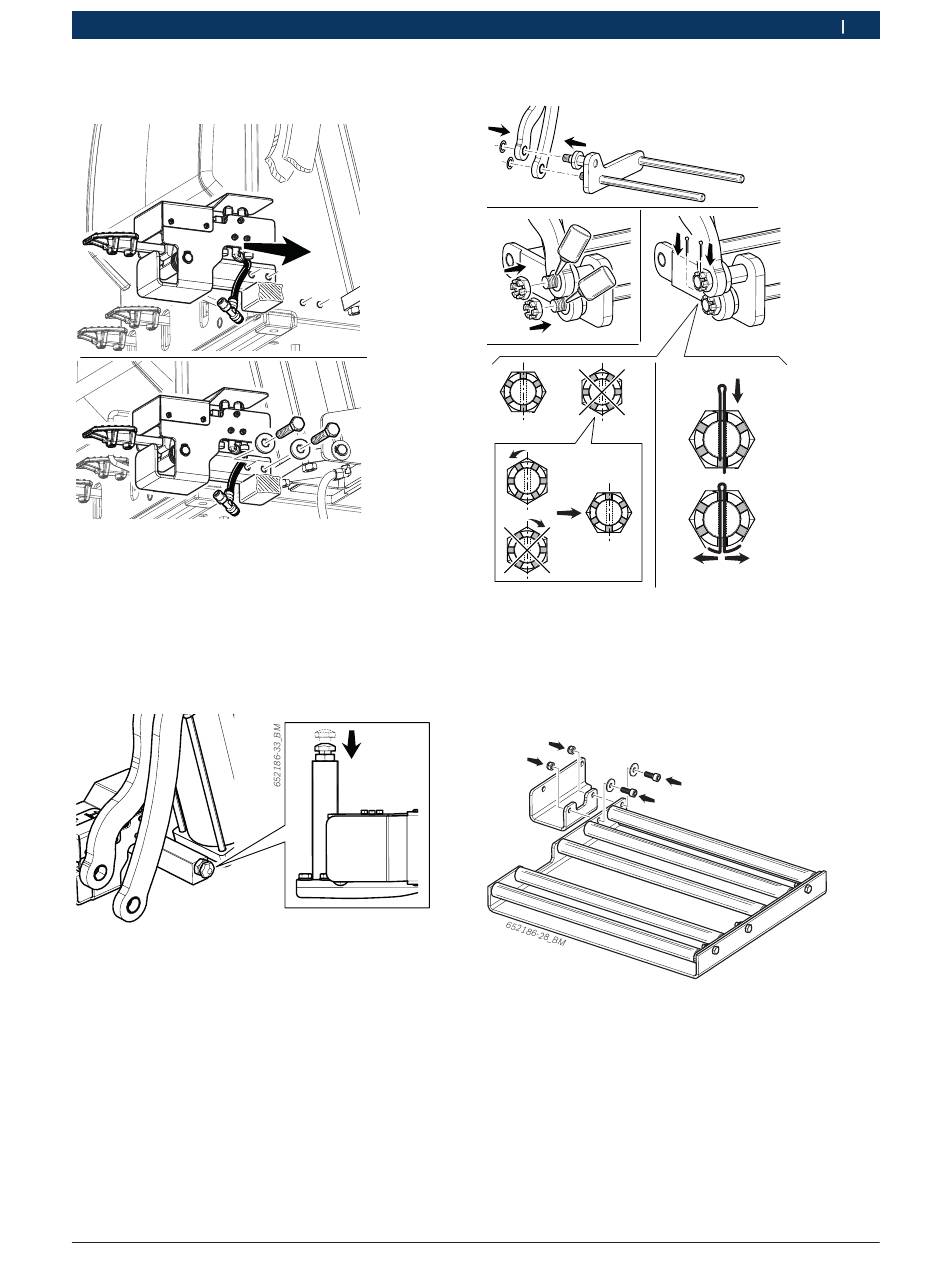

Fig. 5: Positioning the control pedal
i
Even out possible unevenness in the ground by using
metal spacers.
8. Make sure that the screw is positioned as shown in
the following illustration.
Fig. 6: Position the safety screw
9. Take the moveable stage and affix to the main lever
and the additional lever as shown in the following
illustration.
10. Apply thread protection agent prior to tightening the
nut.
Robert Bosch GmbH
Initial commissioning | TSL 230 | 31
11. Position the split pins.
652186-11_Im
Fig. 7: Mounting the moveable stage
12. Remove the group of stationary roll stages from the
package.
13. Pre-install the mounting bracket to the stationary
roll stage as shown in the following illustration.
Fig. 8: Pre-installing the stationary roll stage
