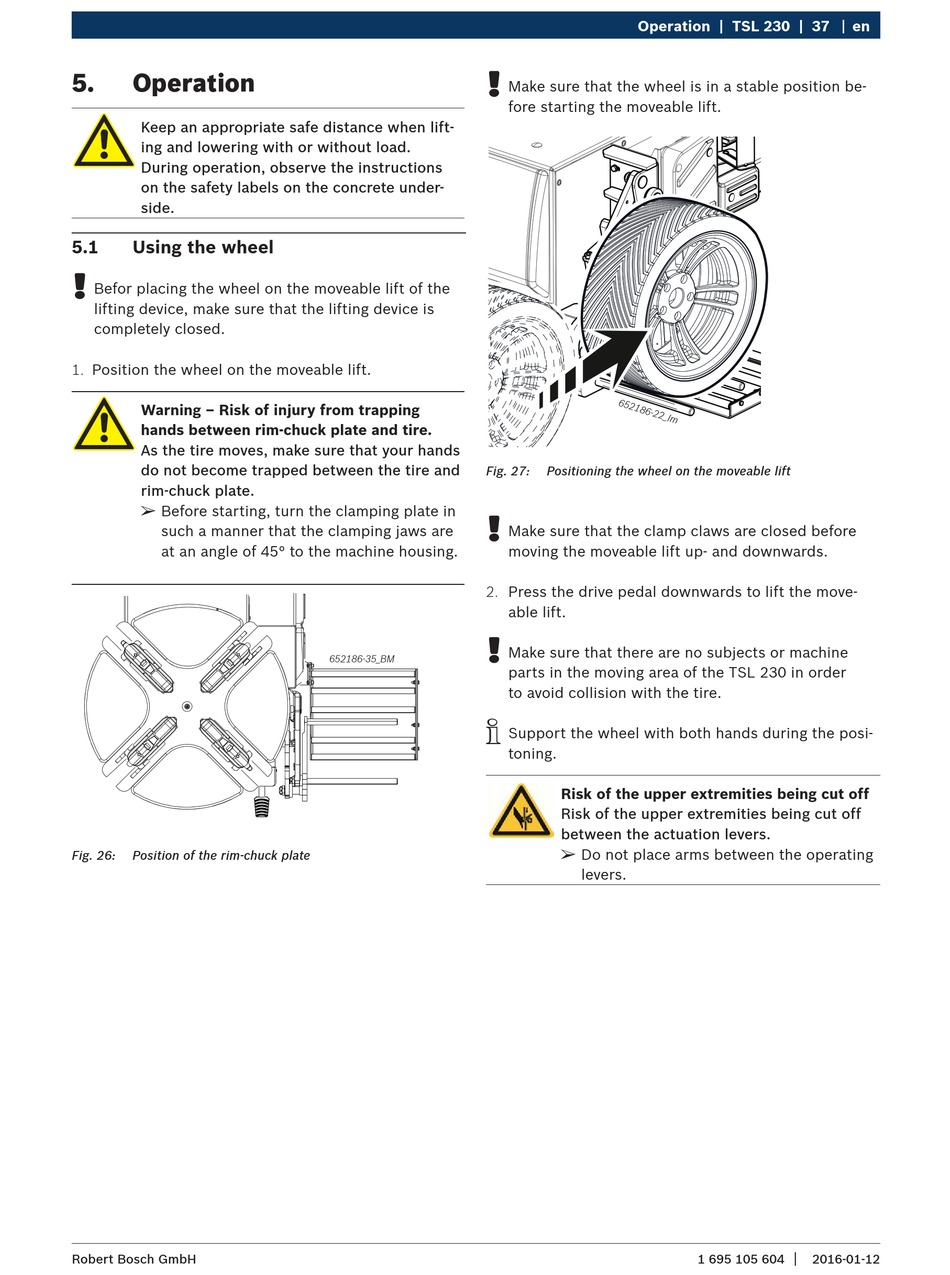

Bosch TSL 230 Originalbetriebsanleitung Seite 37

5. Operation
Keep an appropriate safe distance when lift-
ing and lowering with or without load.
During operation, observe the instructions
on the safety labels on the concrete under-
side.
5.1 Using the wheel
!
Befor placing the wheel on the moveable lift of the
lifting device, make sure that the lifting device is
completely closed.
1. Position the wheel on the moveable lift.
Warning – Risk of injury from trapping
hands between rim-chuck plate and tire.
As the tire moves, make sure that your hands
do not become trapped between the tire and
rim-chuck plate.
¶
Before starting, turn the clamping plate in
such a manner that the clamping jaws are
at an angle of 45° to the machine housing.
Fig. 26: Position of the rim-chuck plate
Robert Bosch GmbH
!
Make sure that the wheel is in a stable position be-
fore starting the moveable lift.
Fig. 27:
!
Make sure that the clamp claws are closed before
moving the moveable lift up- and downwards.
2. Press the drive pedal downwards to lift the move-
able lift.
!
Make sure that there are no subjects or machine
652186-35_BM
parts in the moving area of the TSL 230 in order
to avoid collision with the tire.
i
Support the wheel with both hands during the posi-
toning.
Operation | TSL 230 | 37
Positioning the wheel on the moveable lift
Risk of the upper extremities being cut off
Risk of the upper extremities being cut off
between the actuation levers.
¶
Do not place arms between the operating
levers.
