3.2 Prerequisites
The lifting device must be installed in a closed room
on concrete floor and in an area that is sufficiently and
uniformly lighted. Additionally, a port for the pneumatic
supply must be existent.
!
Observe the instruction in the section "Initial com-
missioning" when installing the lifting device.
!
The manufacturer is not liable for possible material
damages and/or injuries that can be traced back to
an installation other than that described in the sec-
tion "Initial commissioning".
!
While operating the TSL 230 (lifting-placing-low-
ering), the operator may only stay in the control area
destined for that purpose without accessing the
designated hazard area during the installation of the
lifting device (see section "Initial commissioning").
i
The operator must make sure that nobody is in the
hazard area before starting the TSL 230.
i
Keep the area around the TSL 230 clean; remove
possible oil stains to avoid slip hazards, and remove
possible subjects from this area.
Robert Bosch GmbH
Product description | TSL 230 | 27
3.3

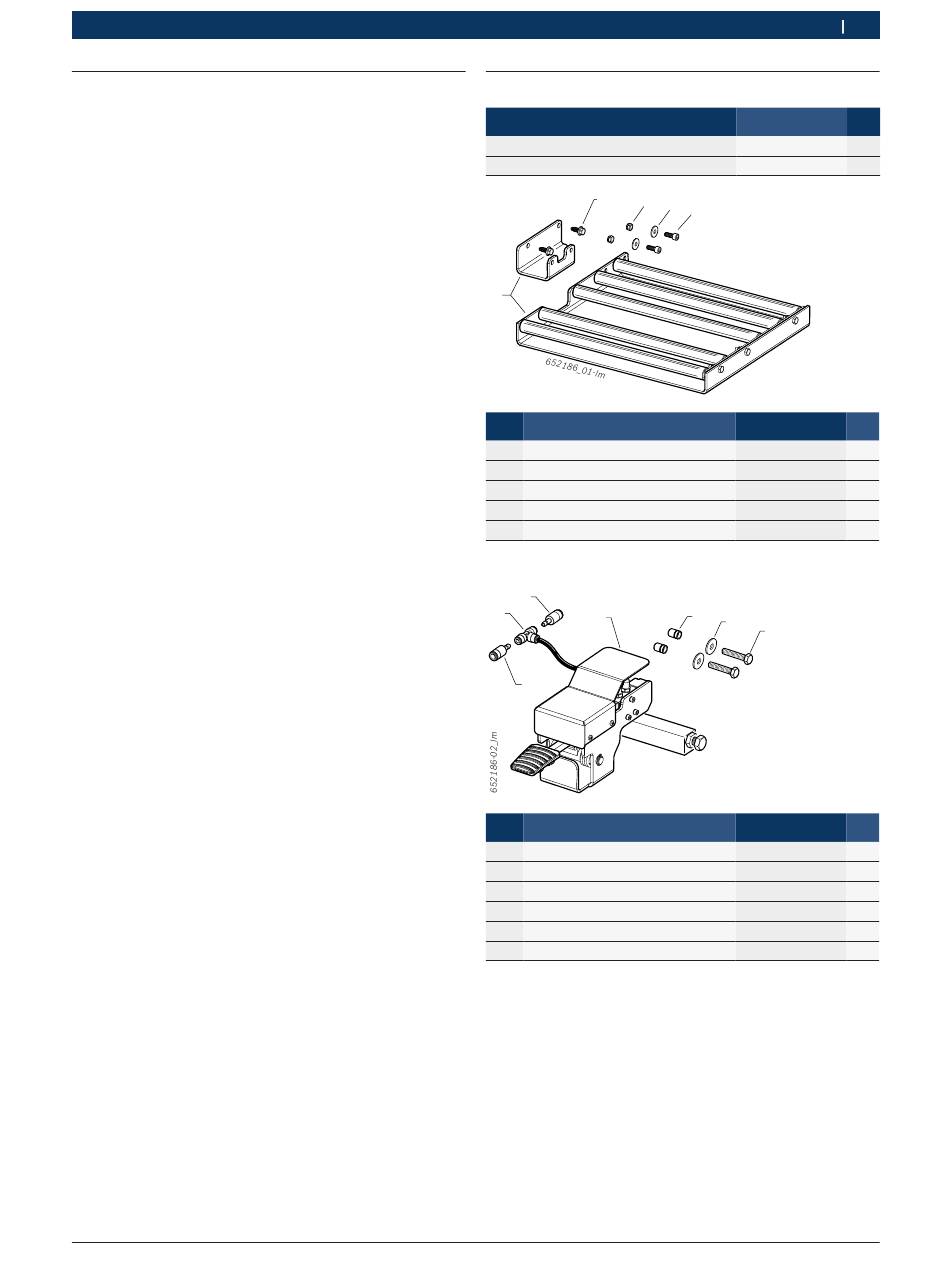

Scope of delivery

Designation
Operating instruction
Instructions for tire service devices
2
5
1
Item Designation
1 Stationary roll stage
2 Screw 6.3x13
3 Screw ISO 4017 M6x20
4 Washer 6.5x18x1.5
5 Nut M6
Tab. 2: Stationary roll stage
6
5
1
6
Item Designation
1 Control pedal
2 Screw M8x40
3 Washer Ø8
4 Insert M8x17
1)
5 T-piece 6-8-8
6 Adapter 8-6
Tab. 3: Control pedal
Only use if the housing is designed for installing the TSL 230.
1)
Order number
1 695 105 604
1 695 104 907
4
3
Order number
1 695 105 286
-
-
-
-
4
3
2
Order number
1 695 106 375
-
-
-
-
-
|
1 695 105 604 2016-01-12
en
No.
1
1
No.
1
2
2
2
2
No.
1
2
2
2
1
2
