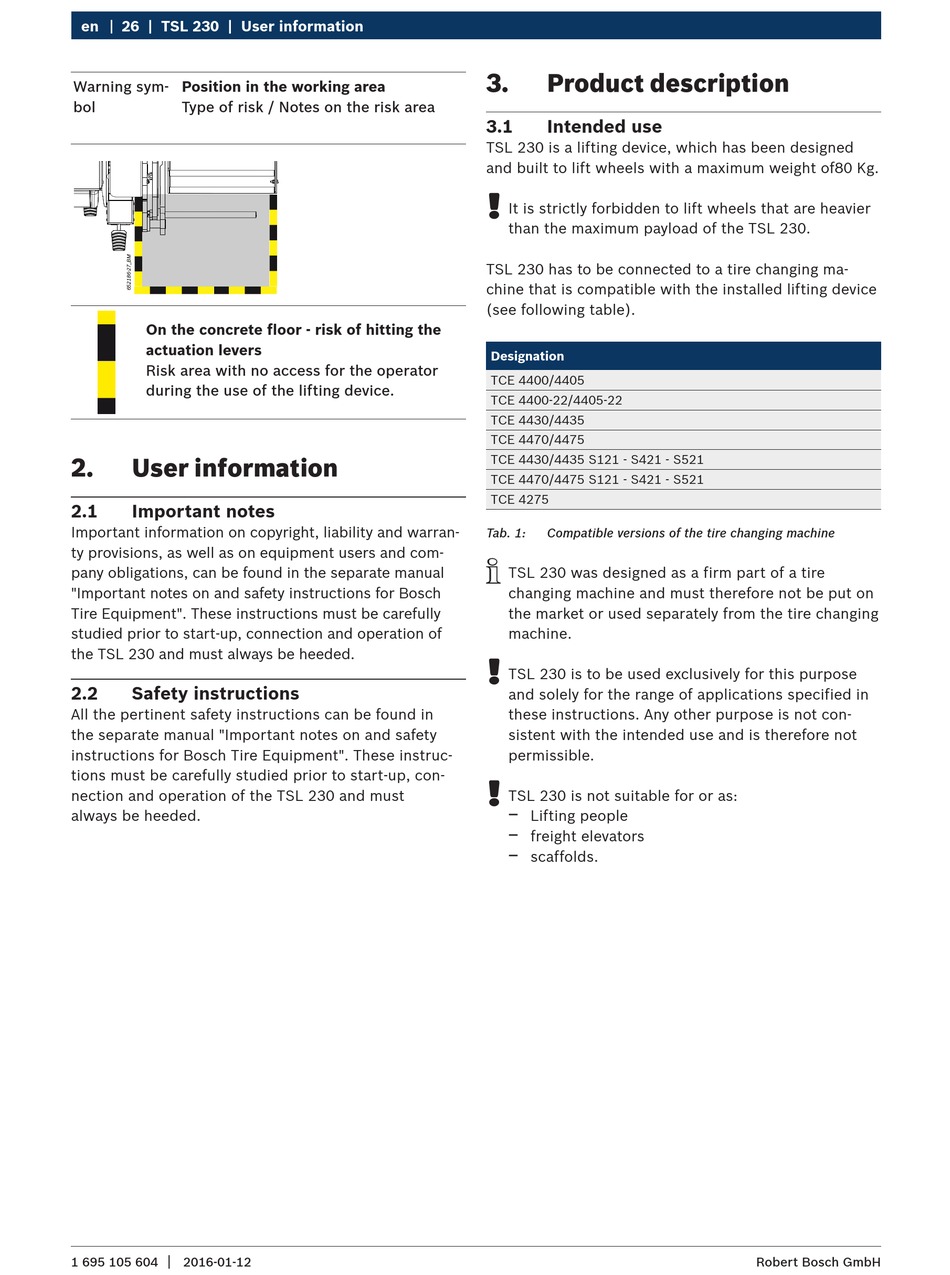

26 | TSL 230 | User information
Warning sym-
Position in the working area
bol
Type of risk / Notes on the risk area
On the concrete floor - risk of hitting the
actuation levers
Risk area with no access for the operator
during the use of the lifting device.
2.
User information
2.1
Important notes
Important information on copyright, liability and warran-
ty provisions, as well as on equipment users and com-
pany obligations, can be found in the separate manual
"Important notes on and safety instructions for Bosch
Tire Equipment". These instructions must be carefully
studied prior to start-up, connection and operation of
the TSL 230 and must always be heeded.
2.2
Safety instructions
All the pertinent safety instructions can be found in
the separate manual "Important notes on and safety
instructions for Bosch Tire Equipment". These instruc-
tions must be carefully studied prior to start-up, con-
nection and operation of the TSL 230 and must
always be heeded.
|
1 695 105 604
2016-01-12
3.
Product description
3.1
Intended use
TSL 230 is a lifting device, which has been designed
and built to lift wheels with a maximum weight of80 Kg.
!
It is strictly forbidden to lift wheels that are heavier
than the maximum payload of the TSL 230.
TSL 230 has to be connected to a tire changing ma-
chine that is compatible with the installed lifting device
(see following table).
Designation
TCE 4400/4405
TCE 4400-22/4405-22
TCE 4430/4435
TCE 4470/4475
TCE 4430/4435 S121 - S421 - S521
TCE 4470/4475 S121 - S421 - S521
TCE 4275
Tab. 1:
Compatible versions of the tire changing machine
i
TSL 230 was designed as a firm part of a tire
changing machine and must therefore not be put on
the market or used separately from the tire changing
machine.
!
TSL 230 is to be used exclusively for this purpose
and solely for the range of applications specified in
these instructions. Any other purpose is not con-
sistent with the intended use and is therefore not
permissible.
!
TSL 230 is not suitable for or as:
$
Lifting people
$
freight elevators
$
scaffolds.
Robert Bosch GmbH
