9.2 Connecting vehicle metering module/test metering module

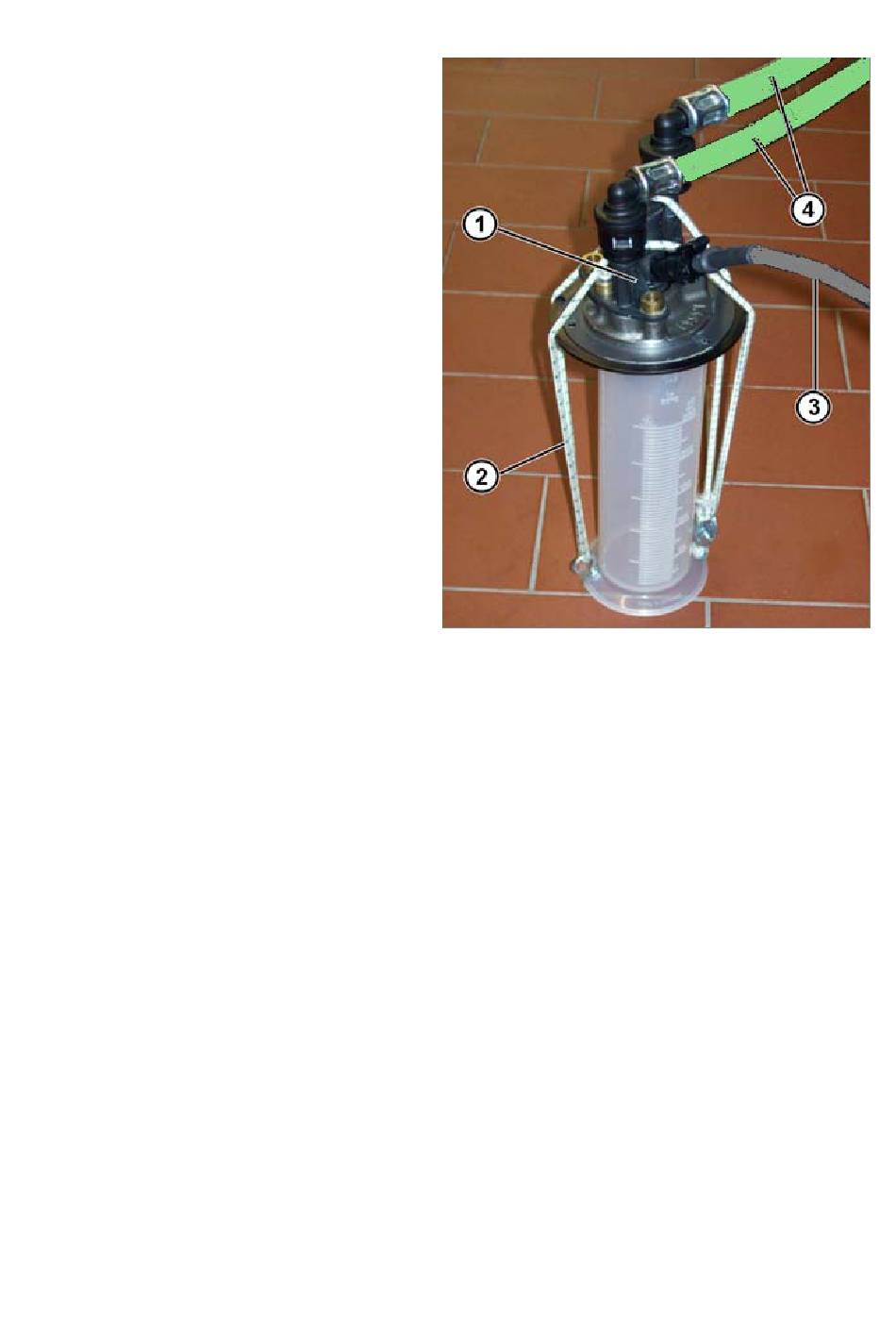

- Fix the vehicle metering module or the test
metering module (1) in position on the
graduated beaker using the retaining strap
(2).
- Plug in the extension cable (3) at the
vehicle connector and the metering
module.
- Depending on the current test operation,
connect the test pressure pipes (4) or the
sealing pipe to the metering module
(Section 10).
- Connect the test pressure pipes on the
vehicle.
