2. Dimensions, weight of portable test set

Length
Width
Height
Weight

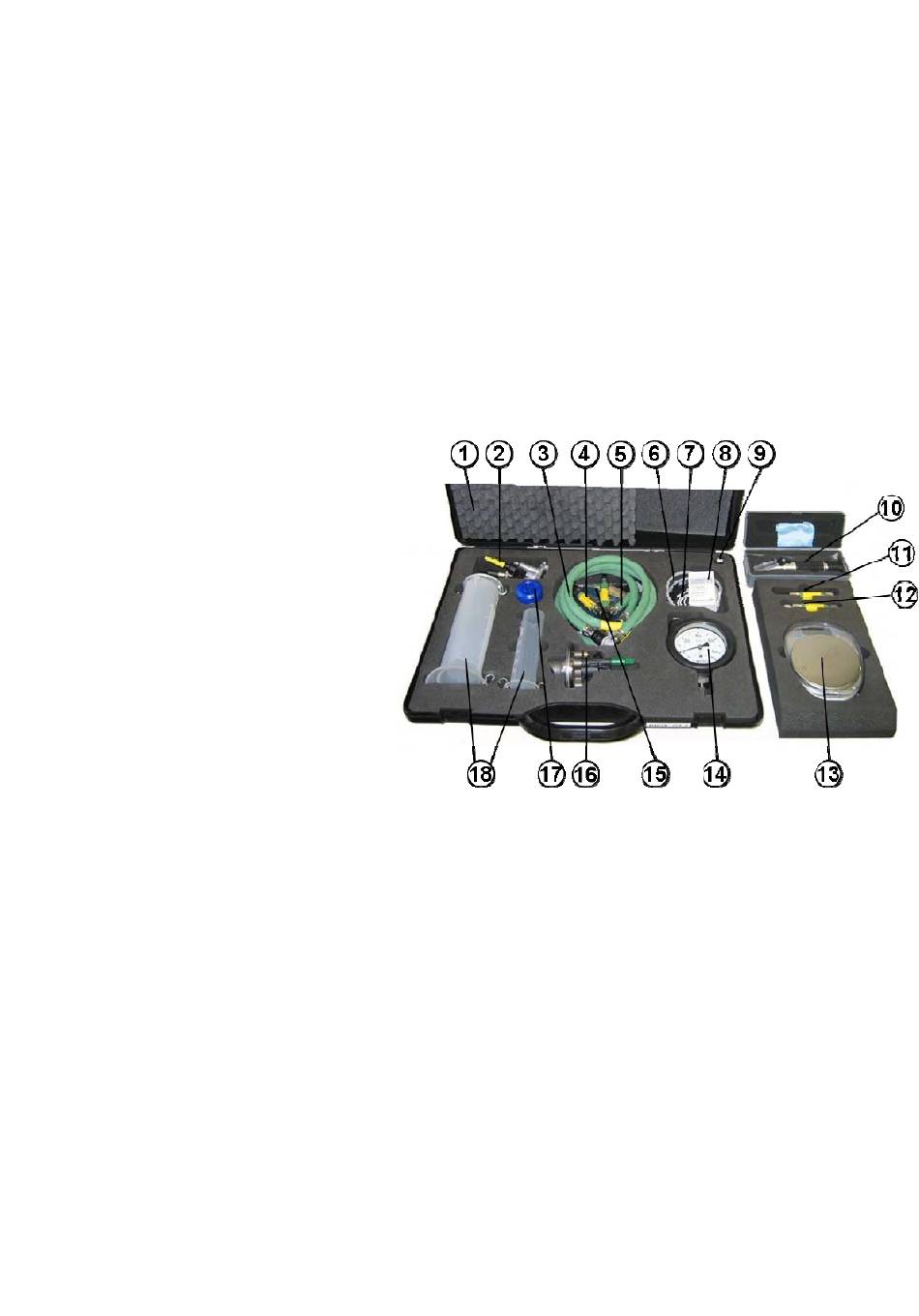

3. Overview

1 = Case with foam inlays
2 = Test gauge 2 <test metering module> DNOX 2.2
3 = Test pressure pipe for metering module (inlet)
Test pressure pipe for metering module (return)
4 = Test pressure pipe, Y-hose
5 = Connecting line to jump CCV
(on the delivery module (adaptor lead)
6 = Retaining strap (rubber strap)
7 = Extension cable
(for metering module test)
8 = Oil test strips (with container)
9 = Sealing plug (metering module,
electrical connection)
10 = Handheld refractometer (no
space provided inside the case)
11 = Metering module inlet sealing
pipe
12 = Metering module return sealing
pipe
13 = Scales with digital display
(0...500 g)
14 = Pressure gauge, -100...900 kPa
(-1...9 bar)
15 = Operating instructions (CD-ROM)
16 = Test gauge 2 <test metering module>
DNOX 2.1 (refer also to Section 5)
17 = Calibrating weight for scales
18 = Graduated beakers (0.5 l/0.25 l/0.1 l
10
550 mm
430 mm
125 mm
5.5 kg (incl. scales and calibrating weight)
