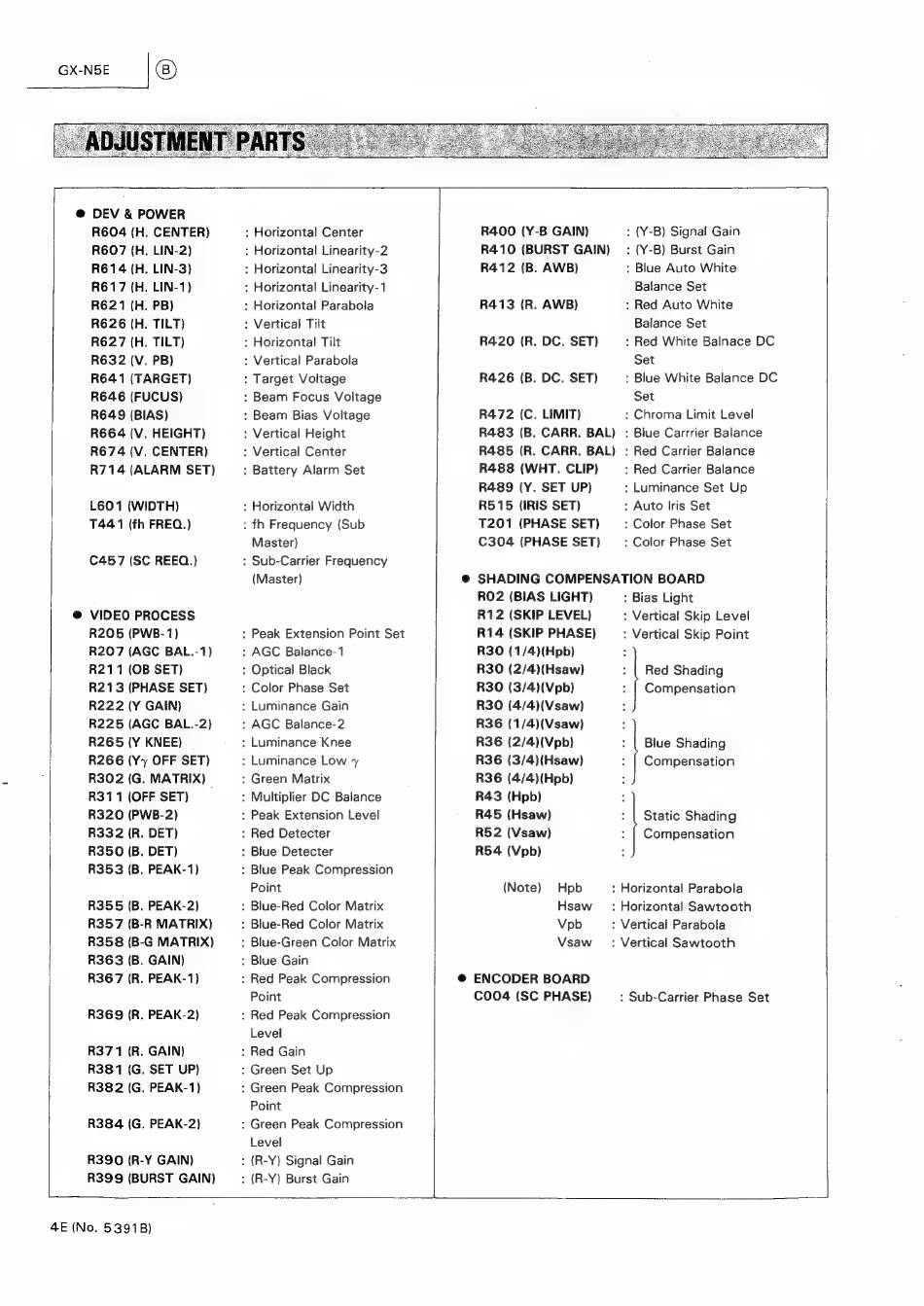

GX-N5E
@ DEV & POWER
R604 (H. CENTER)
R607 (H. LIN-2)
R614 (H. LIN-3)
R617 (H. LIN-1)
R621 (H. PB)
R626 (H. TILT)
R627 (H. TILT)
R632 (V. PB)
R641 (TARGET)
R646 (FUCUS)
R649 (BIAS)
R664 (V. HEIGHT)
R674 (V. CENTER)
R714 (ALARM SET)
L601 (WIDTH)
T4411 (fh FREQ.)
C457 (SC REEQ.)
@ VIDEO PROCESS
R205 (PWB-1)
R207 (AGC BAL.-1)
R211 (OB SET)
R213 (PHASE SET)
R222 (Y GAIN)
R225 (AGC BAL.-2)
R265 (Y KNEE)
R266 (Yy OFF SET)
R302 (G. MATRIX)
R311(OFF SET)
R320 (PWB-2)
R332 (R. DET)
R350 (B. DET)
R353 (B. PEAK-1)
R355 (B. PEAK-2)
R357 (B-R MATRIX)
R358 (B-G MATRIX)
R363 (B. GAIN)
R367 (R. PEAK-1)
R369 (R. PEAK-2)
R371 (R. GAIN)
R381 (G. SET UP)
R382 (G. PEAK-1)
R384 (G. PEAK-2)
R390 (R-Y GAIN)
R399 (BURST GAIN)
: Horizontal Center
: Horizontal Linearity-2
: Horizontal Linearity-3
: Horizontal Linearity-1
: Horizontal Parabola
: Vertical Tilt
: Horizontal Tilt
: Vertical Parabola
: Target Voltage
: Beam Focus Voltage
: Beam Bias Voltage
: Vertical Height
: Vertical Center
: Battery Alarm Set
: Horizontal Width
: fh Frequency (Sub
Master)
: Sub-Carrier Frequency
(Master)
: Peak Extension Point Set
: AGC Balance-1
: Optical Black
: Color Phase Set
: Luminance Gain
: AGC Balance-2
: Luminance Knee
: Luminance Low y
: Green Matrix
: Multiplier DC Balance
: Peak Extension Level
: Red Detecter
: Blue Detecter
: Blue Peak Compression
Point
: Blue-Red Color Matrix
: Blue-Red Color Matrix
: Blue-Green Color Matrix
: Blue Gain
: Red Peak Compression
Point
: Red Peak Compression
Level
: Red Gain
: Green Set Up
: Green Peak Compression
Point
: Green Peak Compression
Level
: (R-Y) Signal Gain
: (R-Y) Burst Gain
R400 (Y-B GAIN)
R410 (BURST GAIN)
R412 (B. AWB)
R413 (R. AWB)
R420 (R. DC. SET)
R426 (B. DC. SET)
R472 (C. LIMIT)
R483 (B. CARR. BAL)
R485 (R. CARR. BAL)
:
R488 (WHT. CLIP)
R489 (Y. SET UP)
R515 (IRIS SET)
T201
(PHASE SET)
C304 (PHASE SET)
: (Y-B) Signal Gain
: (Y-B) Burst Gain
: Blue Auto White
Balance Set
: Red Auto White
Balance Set
: Red White Balnace DC
Set
: Blue White Balance DC
Set
: Chroma Limit Level
: Blue Carrrier Balance
Red Carrier Balance
: Red Carrier Balance
: Luminance Set Up
: Auto Iris Set
: Color Phase Set
: Color Phase Set
SHADING COMPENSATION BOARD
RO2 (BIAS LIGHT)
R12 (SKIP LEVEL)
R14 (SKIP PHASE)
R30 (1/4)(Hpb)
R30 (2/4)(Hsaw)
R30 (3/4)(Vpb)
R30 (4/4)(Vsaw)
R36 (1/4)(Vsaw)
R36 (2/4)(Vpb)
R36 (3/4)(Hsaw)
R36 (4/4)(Hpb)
R43 (Hpb)
R45 (Hsaw)
R52 (Vsaw)
R54 (Vpb)
(Note)
Hpb
Hsaw
Vpb
Vsaw
ENCODER BOARD
C004 (SC PHASE)
: Bias Light
: Vertical Skip Level
: Vertical Skip Point
Red Shading
Compensation
Blue Shading
Compensation
Static Shading
Compensation
: Horizontal Parabola
: Horizontal Sawtooth
: Vertical Parabola
: Vertical Sawtooth
: Sub-Carrier Phase Set
4E (No. 5391B)
