GX-N5E
@ Preparation
@ Presetting
© Lay out the EVF. Especially when the EVF only is to
1) Iris switch
—'
@
" (AUTO)
be adjusted, be sure to ground the CRT through the
2) ''A Iris compensation"'
EVF Board.
switch
— "0"
© Proceed with this adjustment after completing
ad-
3) White balance
— ''STANDARD"
justment of the camera body side (except when only
4) C.C. Filter switch
— "By "' (Day light)
the EVF is to be adjusted).
5) ND Filter switch
—
©"
(ND out)
level (2V,_p).
EVF PC BOARD
CRT ANODE
CENTERING
MAGNET
H. HOLD
V. HOLD
® Adjusting procedures

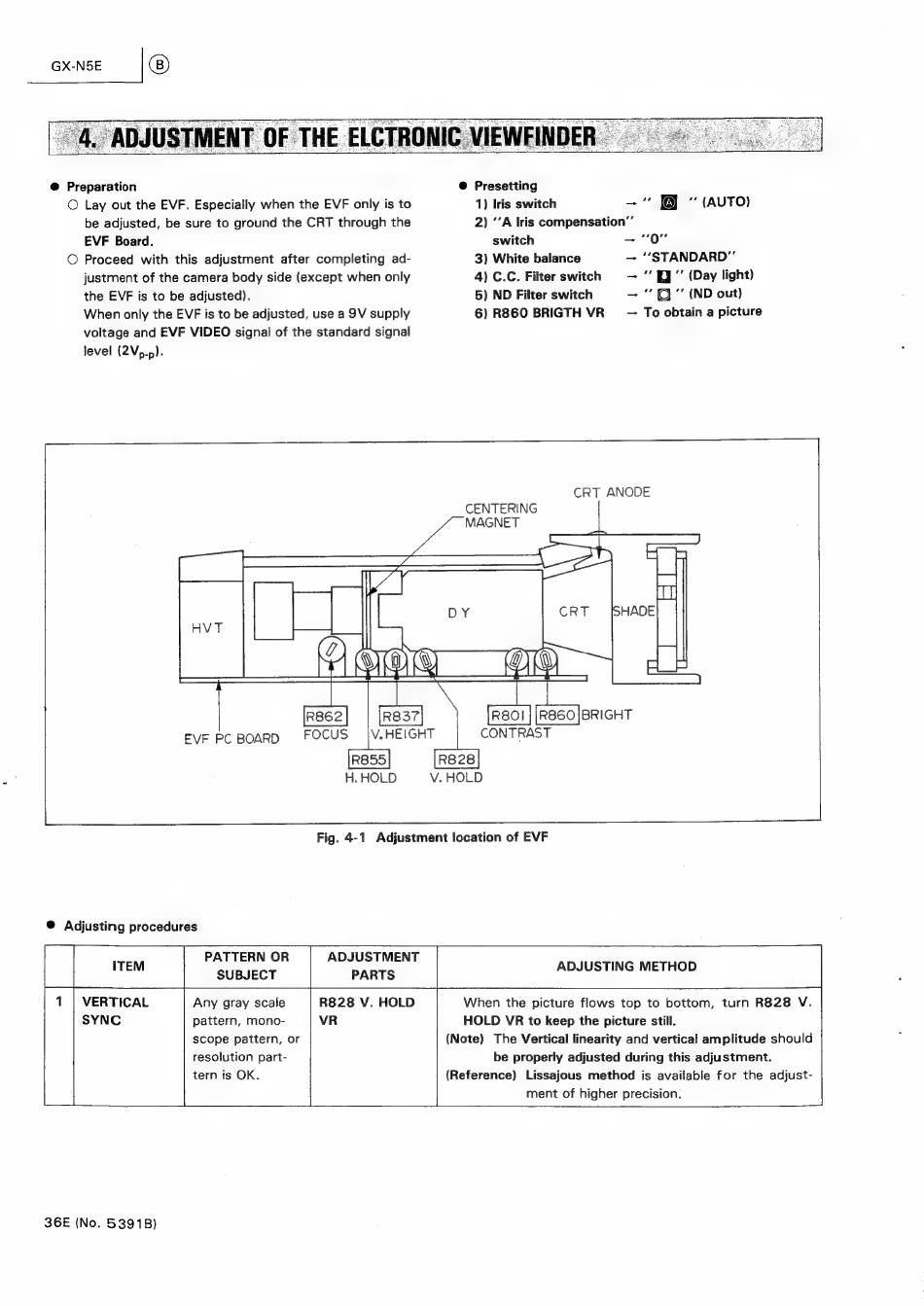

Fig. 4-1
Adjustment location of EVF
~
PATTERN
OR
ADJUSTMENT
ITEM
SUBJECT
PARTS
ADJUSTING METHOD
1 | VERTICAL
Any gray scale
R828 V. HOLD
When the picture flows top to bottom, turn R828
V.
SYNC
pattern, mono-
VR
HOLD VR to keep the picture still.
scope pattern, or
resolution part-
tern is OK.
36E (No. 53918)
(Note)
The Vertical linearity and vertical amplitude should
be properly adjusted during this adjustment.
(Reference)
Lissajous method is available for the adjust-
ment of higher precision.
