GX-N5E

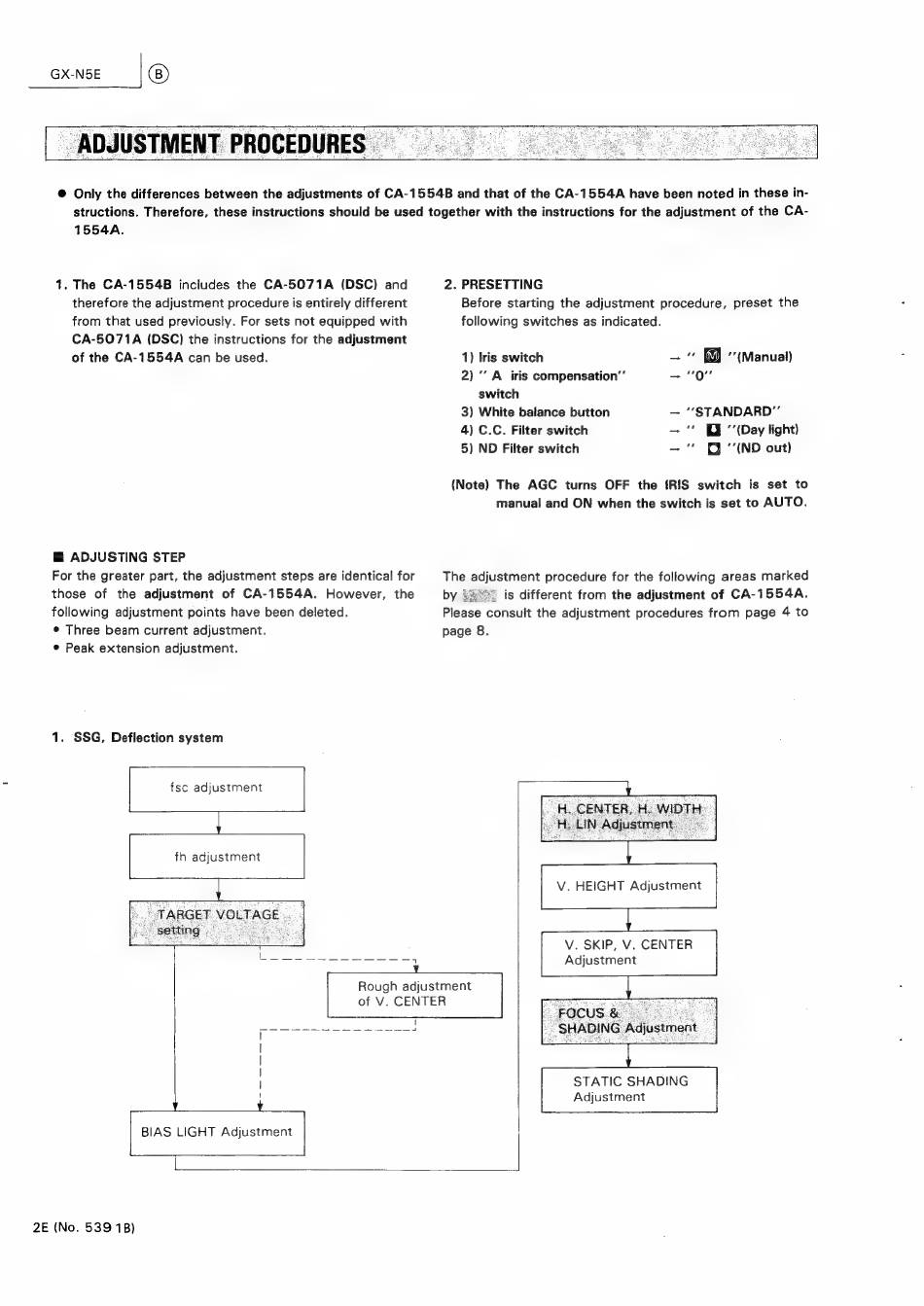

@ Only the differences between the adjustments of CA-1554B and that of the CA-1554A have been noted in these in-
structions. Therefore, these instructions should be used together with the instructions for the adjustment of the CA-
1554A.
1. The CA-1554B
includes the CA-5071A
(DSC)
and
therefore the adjustment procedure is entirely different
from that used previously. For sets not equipped with
CA-5071A (DSC) the instructions for the adjustment
of the CA-1554A can be used.
m@ ADJUSTING STEP
For the greater part, the adjustment steps are identical for
those
of the adjustment
of CA-1554A.
However,
the
following adjustment points have been deleted.
¢ Three beam current adjustment.
e Peak extension adjustment.
1. SSG, Deflection system
fsc adjustment
|
fh adjustment
|
'a
Vv
a
y
2. PRESETTING
Before starting the adjustment procedure, preset the
following switches as indicated.
1) Iris switch
—"
(Manual)
2) '' A iris compensation'
— "OQ"
switch
3) White balance button
— ''STANDARD"'
4) C.C. Filter switch
— '
EY '(Day light)
5) ND Filter switch
-"
"(ND out)
(Note) The AGC
turns OFF
the IRIS switch
is set to
manual and ON when the switch is set to AUTO.
The adjustment procedure for the following areas marked
by
4 2 2
is different from the adjustment of CA-1554A.
Please consult the adjustment procedures from page 4 to
page 8.
. H. LIN Adjustmen
lv HEIGHT Adjustment
4
V. SKIP, V. CENTER
Adjustment
ai
!
I
|
|
|
4
Y_
Y
BIAS LIGHT Adjustment
Rough adjustment
of V. CENTER
STATIC SHADING
Adjustment
2E (No. 539 18)
