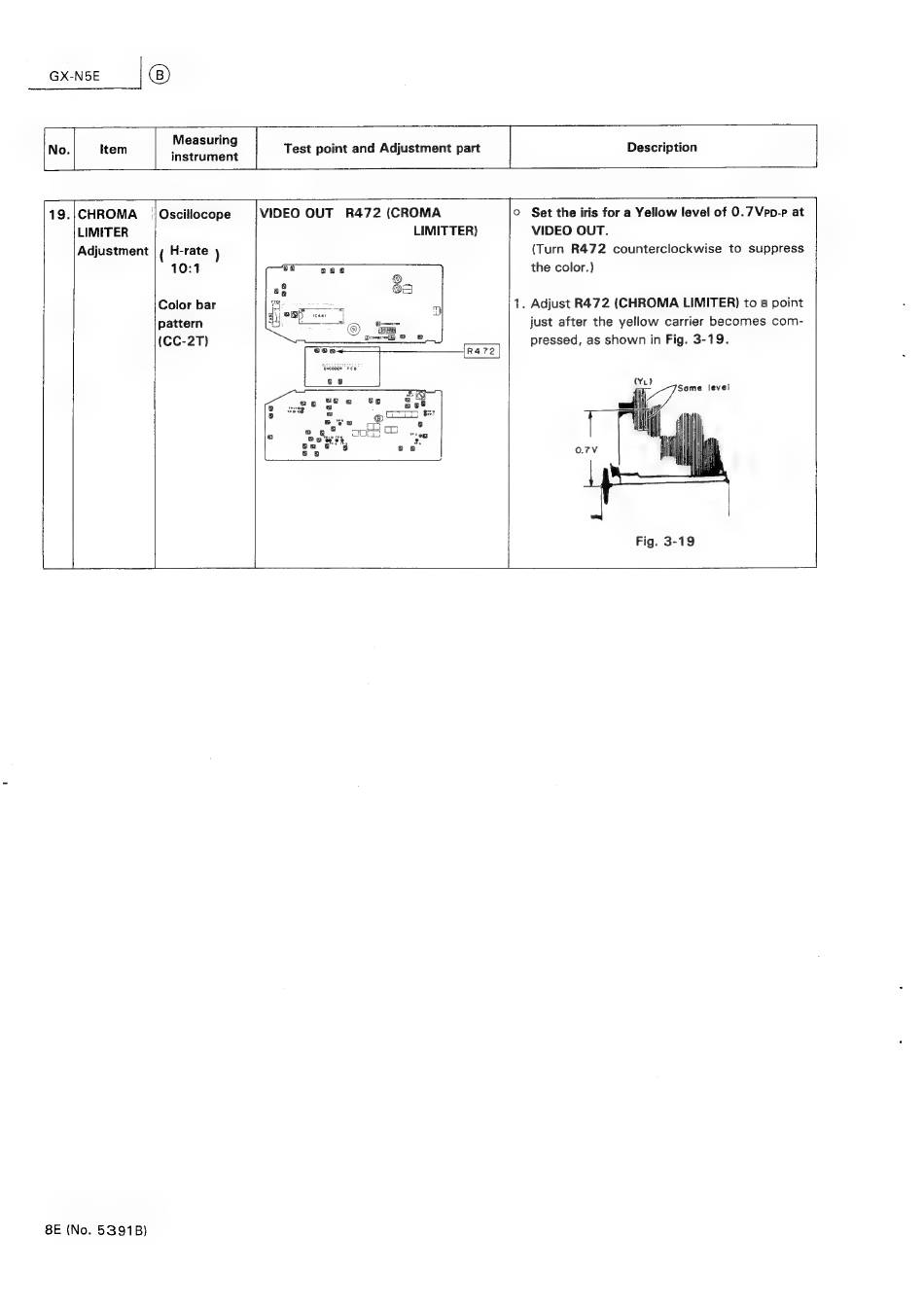

GX-N5E
Description
8E (No. 5391B)
Measuring
3
No.
Item
iistiiinent
Test point and Adjustment part
19.|CHROMA
| Oscillocope
VIDEO OUT
R472 (CROMA
LIMITER
LIMITTER)
Adjustment
( H-rate )
10:1
Color bar
pattern
(CC-2T)
R472
Set the iris for a Yellow level of 0.7Vpp-p at
VIDEO OUT.
(Turn R472
counterclockwise
to suppress
the color.)
. Adjust R472 (CHROMA LIMITER) to a point
just after the yellow carrier becomes com-
pressed, as shown in Fig. 3-19.
(YL)
0.7V
Fig. 3-19
