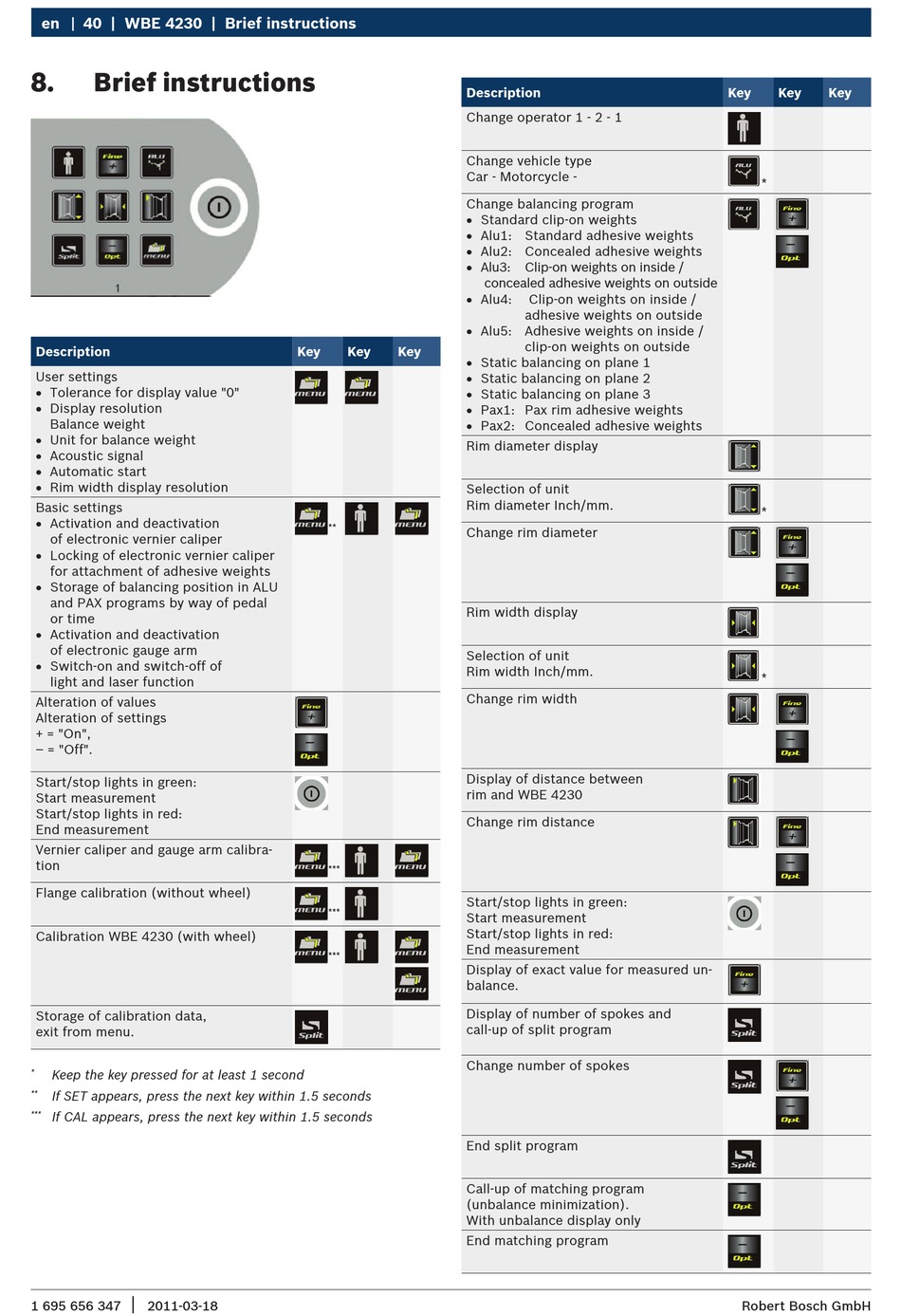

Brief instructions

Description
User settings
R Tolerance for display value "0"
R Display resolution
Balance weight
R Unit for balance weight
R Acoustic signal
R Automatic start
R Rim width display resolution
Basic settings
R Activation and deactivation
of electronic vernier caliper
R Locking of electronic vernier caliper
for attachment of adhesive weights
R Storage of balancing position in ALU
and PAX programs by way of pedal
or time
R Activation and deactivation
of electronic gauge arm
R Switch-on and switch-off of
light and laser function
Alteration of values
Alteration of settings
+ = "On",
– = "Off".
Start/stop lights in green:
Start measurement
Start/stop lights in red:
End measurement
Vernier caliper and gauge arm calibra-
tion
Flange calibration (without wheel)
Calibration WBE 4230 (with wheel)
Storage of calibration data,
exit from menu.
Keep the key pressed for at least 1 second
*
If SET appears, press the next key within 1.5 seconds
**
If CAL appears, press the next key within 1.5 seconds
***
|
1 695 656 347 2011-03-18
Description
Change operator 1 - 2 - 1
Change vehicle type
Car - Motorcycle -
Change balancing program
R Standard clip-on weights
R Alu1: Standard adhesive weights
R Alu2: Concealed adhesive weights
R Alu3:
R Alu4:
R Alu5: Adhesive weights on inside /
Key Key Key
R Static balancing on plane 1
R Static balancing on plane 2
R Static balancing on plane 3
R Pax1: Pax rim adhesive weights
R Pax2: Concealed adhesive weights
Rim diameter display
Selection of unit
Rim diameter Inch/mm.
**
Change rim diameter
Rim width display
Selection of unit
Rim width Inch/mm.
Change rim width
Display of distance between
rim and WBE 4230
Change rim distance
***
Start/stop lights in green:
***
Start measurement
Start/stop lights in red:
End measurement
***
Display of exact value for measured un-
balance.
Display of number of spokes and
call-up of split program
Change number of spokes
End split program
Call-up of matching program
(unbalance minimization).
With unbalance display only
End matching program
Clip-on weights on inside /
concealed adhesive weights on outside
Clip-on weights on inside /
adhesive weights on outside
clip-on weights on outside
Key Key Key
*
*
*
