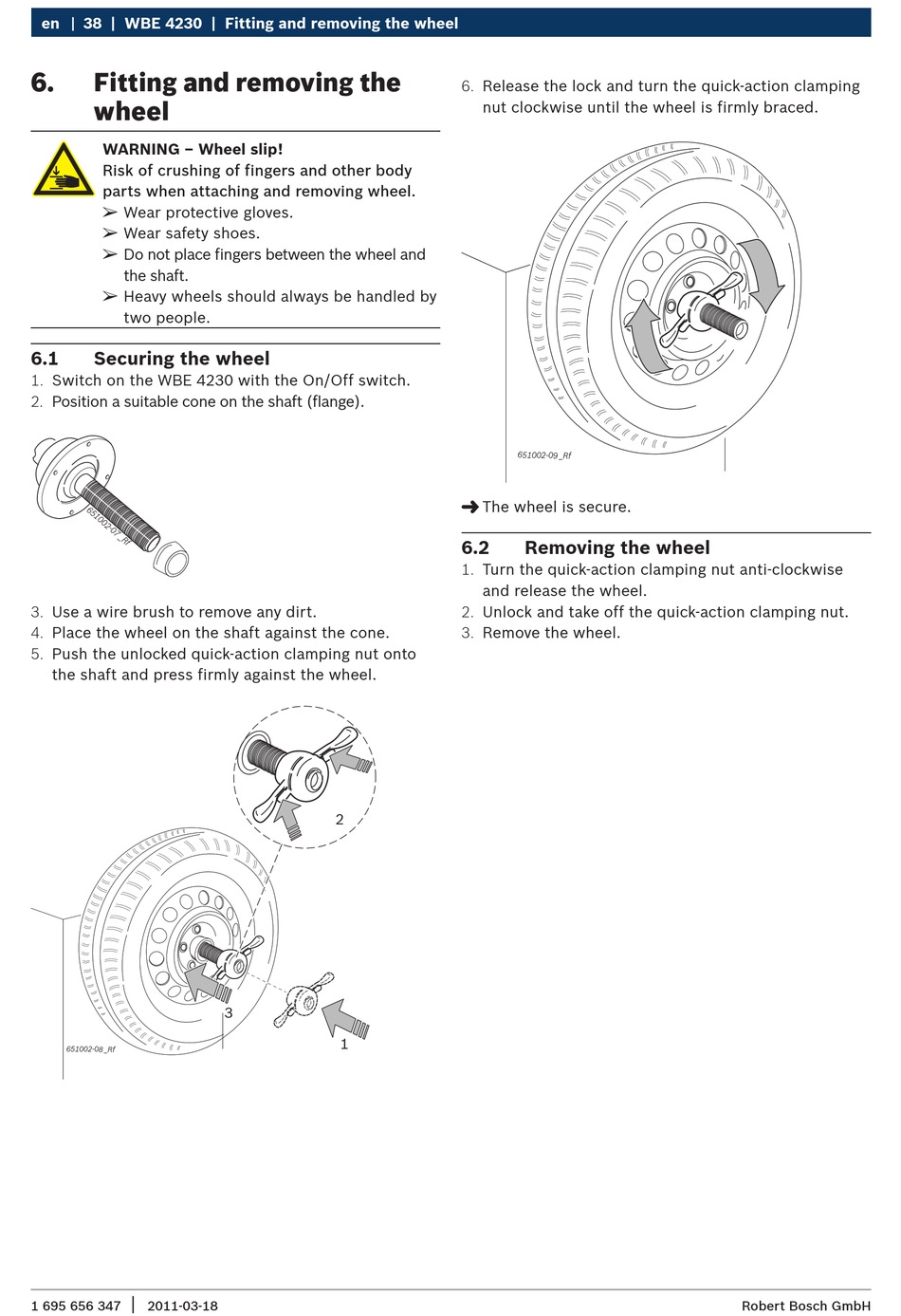

6. Fitting and removing the
wheel
WARNING – Wheel slip!
Risk of crushing of fingers and other body
parts when attaching and removing wheel.
¶
Wear protective gloves.
¶
Wear safety shoes.
¶
Do not place fingers between the wheel and
the shaft.
¶
Heavy wheels should always be handled by
two people.
6.1

Securing the wheel

1. Switch on the WBE 4230 with the On/Off switch.
2. Position a suitable cone on the shaft (flange).
3. Use a wire brush to remove any dirt.
4. Place the wheel on the shaft against the cone.
5. Push the unlocked quick-action clamping nut onto
the shaft and press firmly against the wheel.
|
1 695 656 347 2011-03-18
2
3
1
6. Release the lock and turn the quick-action clamping
nut clockwise until the wheel is firmly braced.
"
The wheel is secure.
6.2

Removing the wheel

1. Turn the quick-action clamping nut anti-clockwise
and release the wheel.
2. Unlock and take off the quick-action clamping nut.
3. Remove the wheel.
