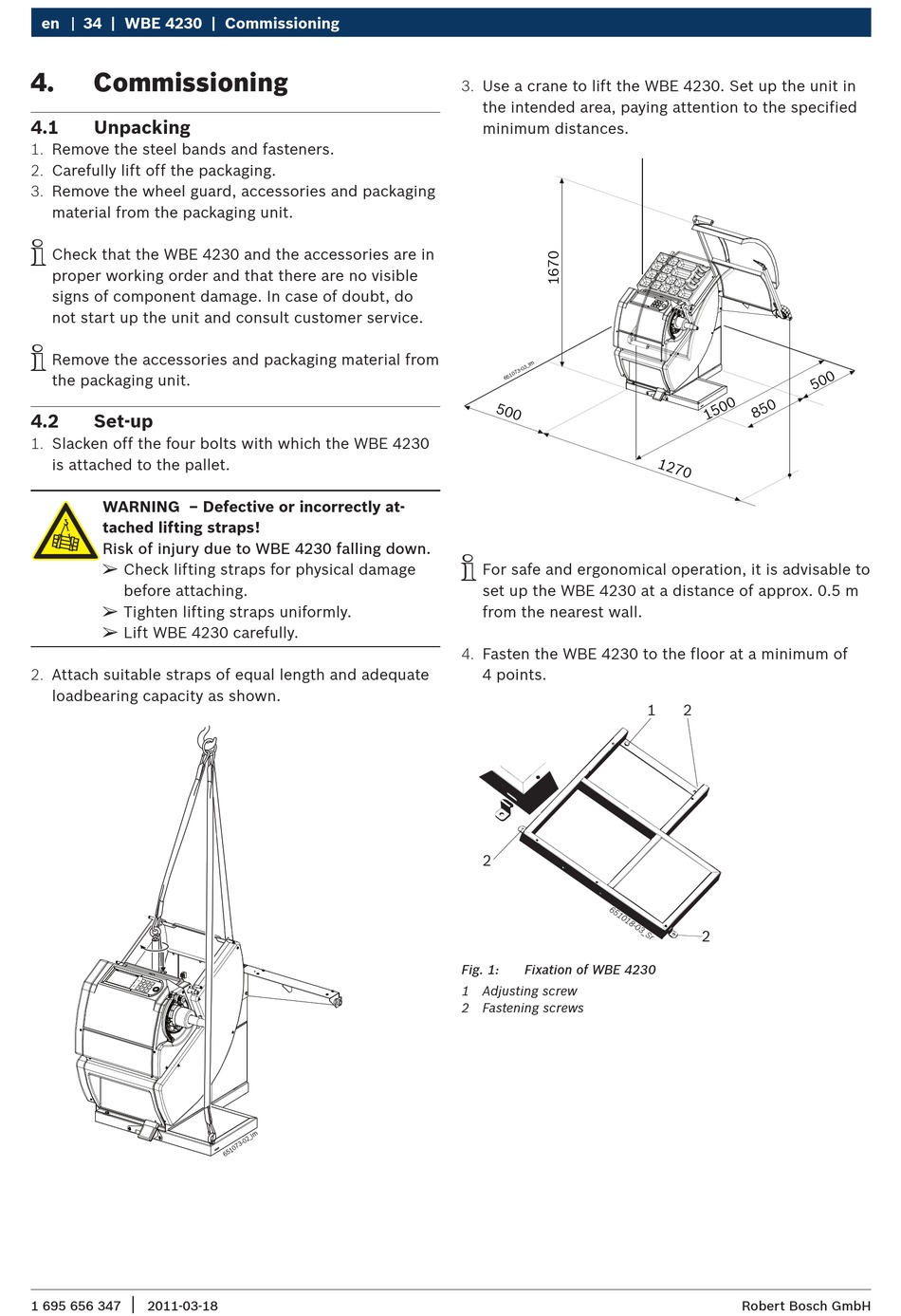

en 34 | WBE 4230 | Commissioning
4.

Commissioning

4.1

Unpacking

1. Remove the steel bands and fasteners.
2. Carefully lift off the packaging.
3. Remove the wheel guard, accessories and packaging
material from the packaging unit.
i
Check that the WBE 4230 and the accessories are in
proper working order and that there are no visible
signs of component damage. In case of doubt, do
not start up the unit and consult customer service.
i
Remove the accessories and packaging material from
the packaging unit.
4.2

Set-up

1. Slacken off the four bolts with which the WBE 4230
is attached to the pallet.
WARNING – Defective or incorrectly at-
tached lifting straps!
Risk of injury due to WBE 4230 falling down.
¶
Check lifting straps for physical damage
before attaching.
¶
Tighten lifting straps uniformly.
¶
Lift WBE 4230 carefully.
2. Attach suitable straps of equal length and adequate
loadbearing capacity as shown.
|
1 695 656 347 2011-03-18
3. Use a crane to lift the WBE 4230. Set up the unit in
the intended area, paying attention to the specified
minimum distances.
i
For safe and ergonomical operation, it is advisable to
set up the WBE 4230 at a distance of approx. 0.5 m
from the nearest wall.
4. Fasten the WBE 4230 to the floor at a minimum of
4 points.
2
Fig. 1: Fixation of WBE 4230
1 Adjusting screw
2 Fastening screws
1 2
2
