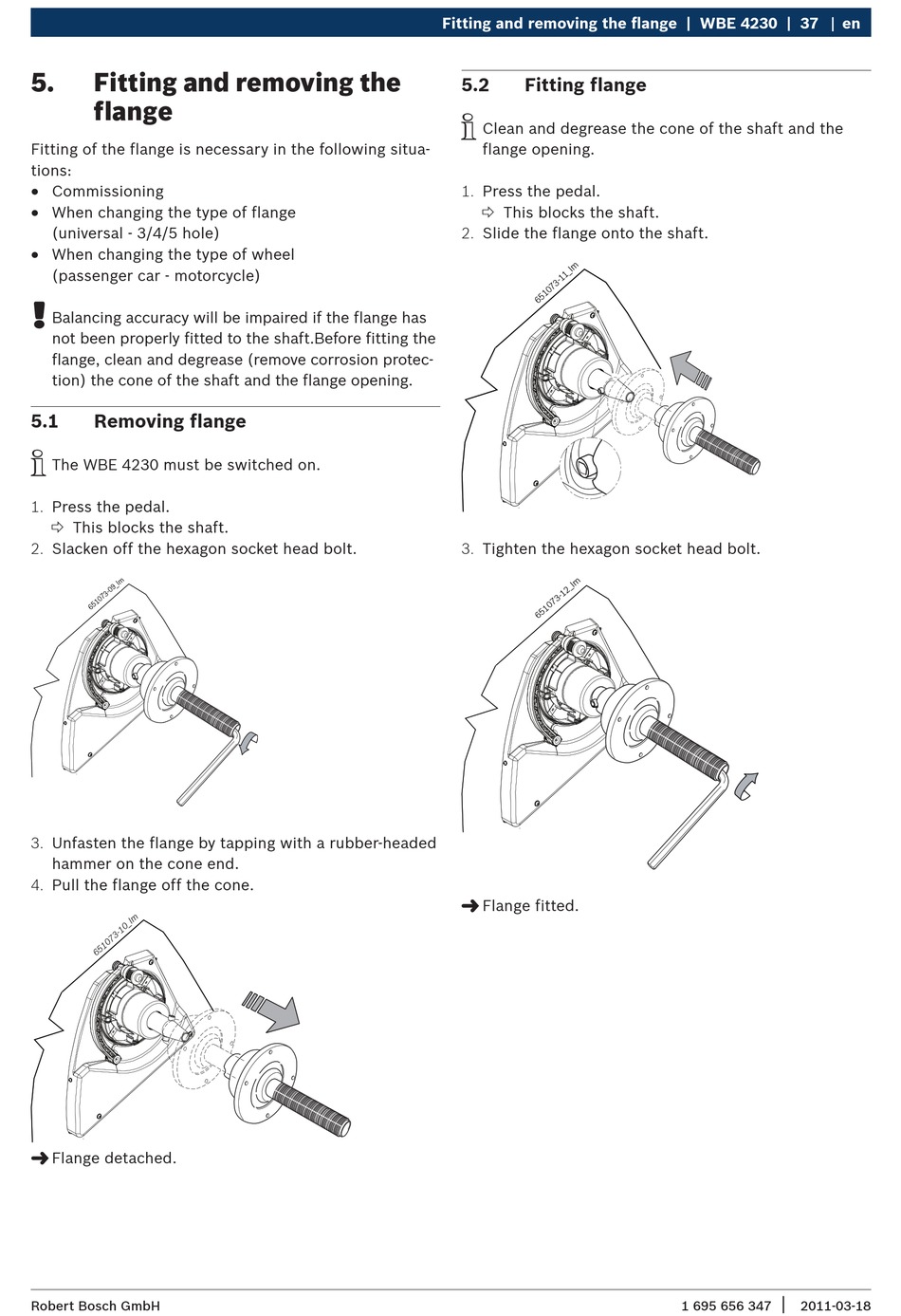

5. Fitting and removing the
flange
Fitting of the flange is necessary in the following situa-
tions:
R
Commissioning
R
When changing the type of flange
(universal - 3/4/5 hole)
R
When changing the type of wheel
(passenger car - motorcycle)
!
Balancing accuracy will be impaired if the flange has
not been properly fitted to the shaft.Before fitting the
flange, clean and degrease (remove corrosion protec-
tion) the cone of the shaft and the flange opening.
5.1

Removing flange

i
The WBE 4230 must be switched on.
1. Press the pedal.
 This blocks the shaft.
2. Slacken off the hexagon socket head bolt.
3. Unfasten the flange by tapping with a rubber-headed
hammer on the cone end.
4. Pull the flange off the cone.
"
Flange detached.
Robert Bosch GmbH
Fitting and removing the flange | WBE 4230 | 37
5.2

Fitting flange

i
Clean and degrease the cone of the shaft and the
flange opening.
1. Press the pedal.
 This blocks the shaft.
2. Slide the flange onto the shaft.
3. Tighten the hexagon socket head bolt.
"
Flange fitted.
