Connecting The Cable - Bosch ConnectModule BCM3100 Montageanleitung

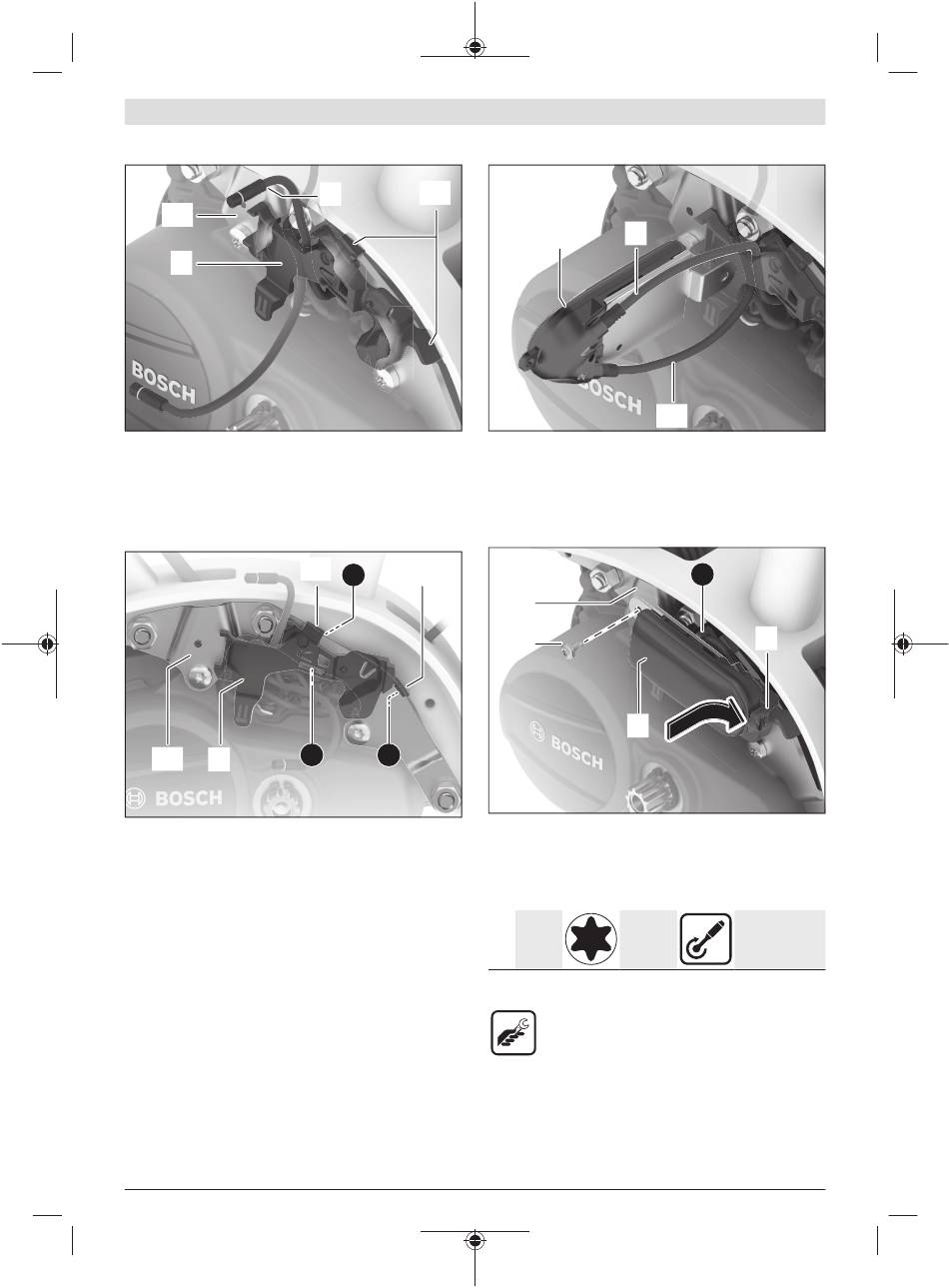

Installing the Holder
(15)
(4)
The holder (4) is adapted to the contour of the mounting
plate (15).
Position the holder (4) on the top edge of the mounting plate
with the two hooks (16).
Guide the HMI cable (5) up behind the holder (4) as illus-
trated.
(16)
(15)
(4)
Position the holder (4) so that the two hooks (16) lie flush
on the top edge of the mounting plate ➊.
Push the holder against the mounting plate so that the
holder engages at the bottom edge of the mounting plate ➋.
Bosch eBike Systems
(16)
(5)
(16)
1
2 1

Connecting the Cable

(3) (5)
(12)
Connect the HMI cable (5) to the ConnectModule (3) at con-
nection 1.
Connect the cable (12) of the operating unit/display holder
to the ConnectModule (3) at connection 2.
Installing the ConnectModule
(15)
(2)
(3)
Push the HMI cable (5) at the top of the holder (4) into the
cable guide ➌.
Insert the ConnectModule (3) into the holder (4).
Screw the ConnectModule (3) onto the mounting plate (15)
with the direct installation screw (2).
1× M4×8 Torx T20
pan head
A) Initial assembly
B) Subsequent assembly
– Torx T20 screwdriver
– Torque spanner
Note: Ensure that the cables are not jammed or rubbing
against sharp edges.
Installing the ConnectModule Design Cover
Note: If the ConnectModule is installed, the standard design
cover must be removed and a ConnectModule design cover
English – 3
3
(4)
A)
5 Nm
Nm
B)
4 Nm
M 275 008 3CM | (20.05.2022)
