Statusfeld (untere linke Ecke) den Text DCC-Zentrale ÜBERLASTET anzeigt und dabei rot blinkt,
signalisiert.
Diese Benachrichtigung wird auch angezeigt, wenn das angeschlossene Netzteil einfach entfernt
wird, während das System online ist. Diese Meldung wird nicht mehr angezeigt, wenn Sie entweder
den Master zurücksetzen oder die Einstellungen erneut übertragen.

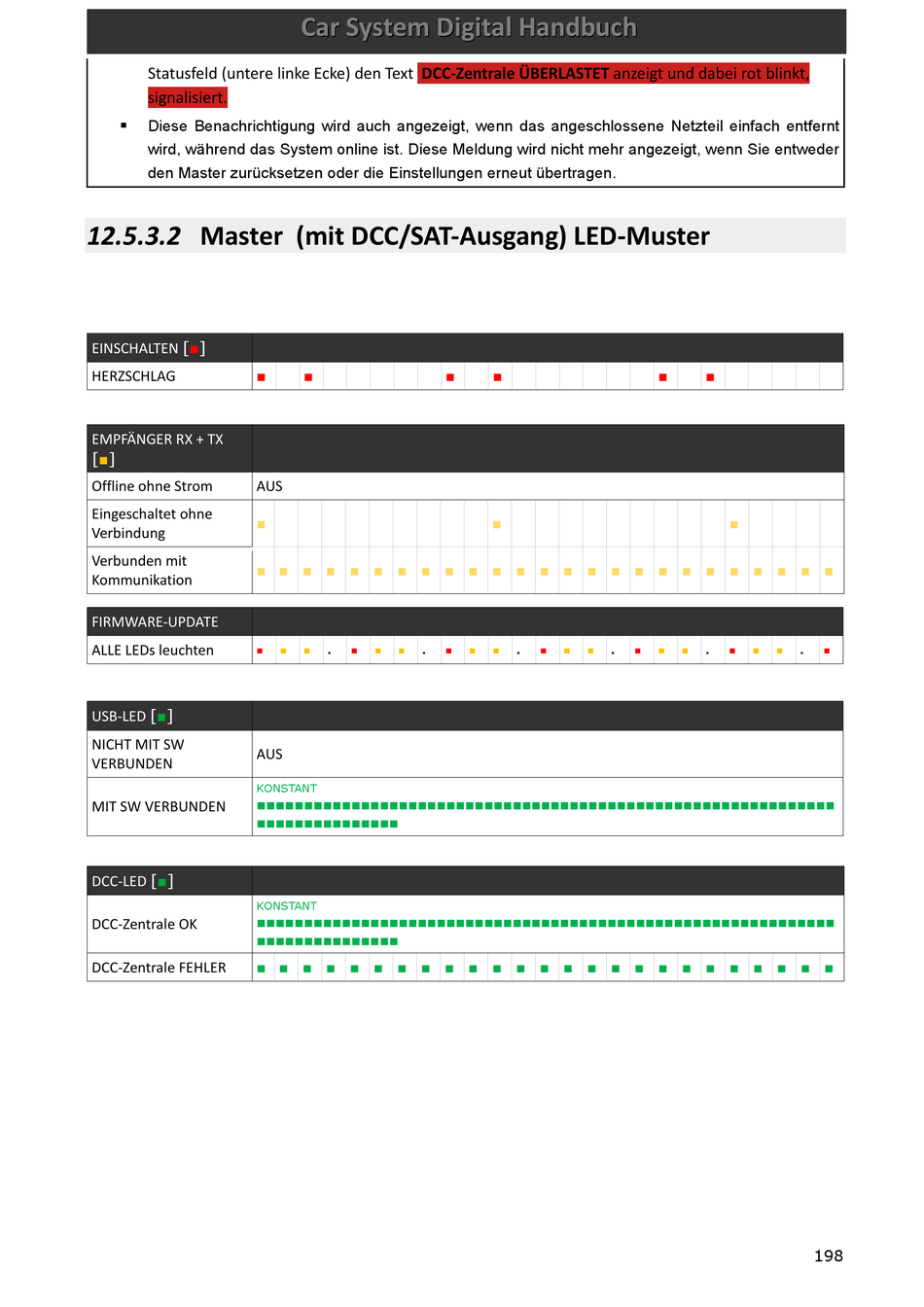

12.5.3.2 Master (mit DCC/SAT-Ausgang) LED-Muster
EINSCHALTEN [■]
HERZSCHLAG
■
EMPFÄNGER RX + TX
[■]
Offline ohne Strom
AUS
Eingeschaltet ohne
■
Verbindung
Verbunden mit
■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
Kommunikation
FIRMWARE-UPDATE
ALLE LEDs leuchten
■
USB-LED [■]
NICHT MIT SW
AUS
VERBUNDEN
KONSTANT
■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
MIT SW VERBUNDEN
■■■■■■■■■■■■■■■
DCC-LED [■]
KONSTANT
■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
DCC-Zentrale OK
■■■■■■■■■■■■■■■
DCC-Zentrale FEHLER
■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
