IC-KP2-2HB18-2V1
Befehle
Lesebefehl enhanced mit geteilten Daten
verhält sich wie ein Lesebefehl single mit geteilten Daten

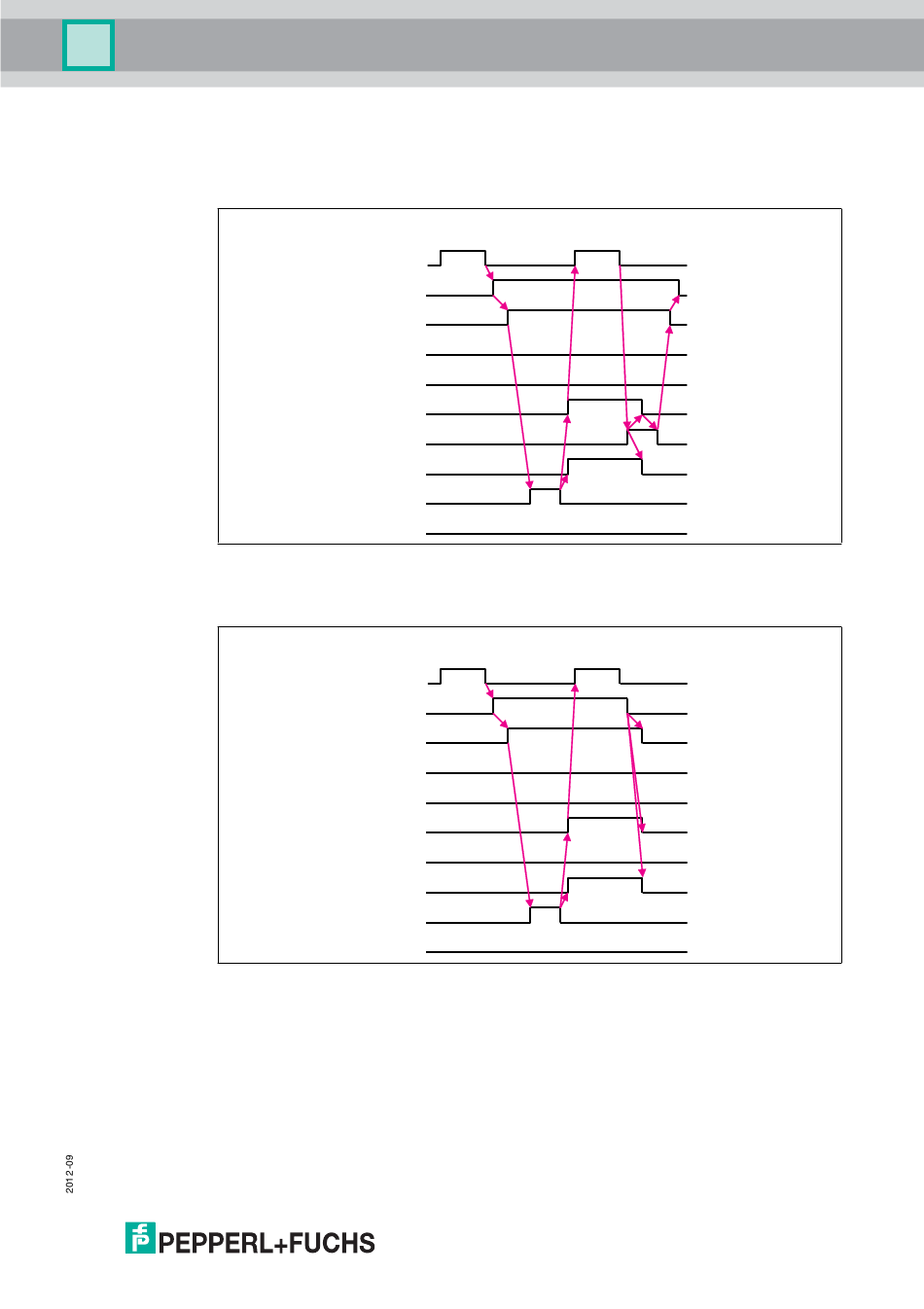

Schreibbefehl single ohne geteilte Daten, RYn3 als Bestätigung
ID command execution request (RYn4)
ID division data request (RXn7)
ID division data complete (RYn7)
ID command complete (RXn4)
ID error occurrence (RXn5)
Abbildung 7.8
Schreibbefehl single ohne geteilte Daten, RYn4 als Bestätigung
ID command execution request (RYn4)
ID division data request (RXn7)
ID division data complete (RYn7)
ID command complete (RXn4)
ID error occurrence (RXn5)
Abbildung 7.9
writing cmd and data
to RWw
PLC program
ID BUSY (RXn3)
ID data ack (RYn3)
ID in zone contact (RXn2)
Tag communication
writing cmd and data
to RWw
PLC program
ID BUSY (RXn3)
ID data ack (RYn3)
ID in zone contact (RXn2)
Tag communication
reading response
from RWr
reading response
from RWr
41
