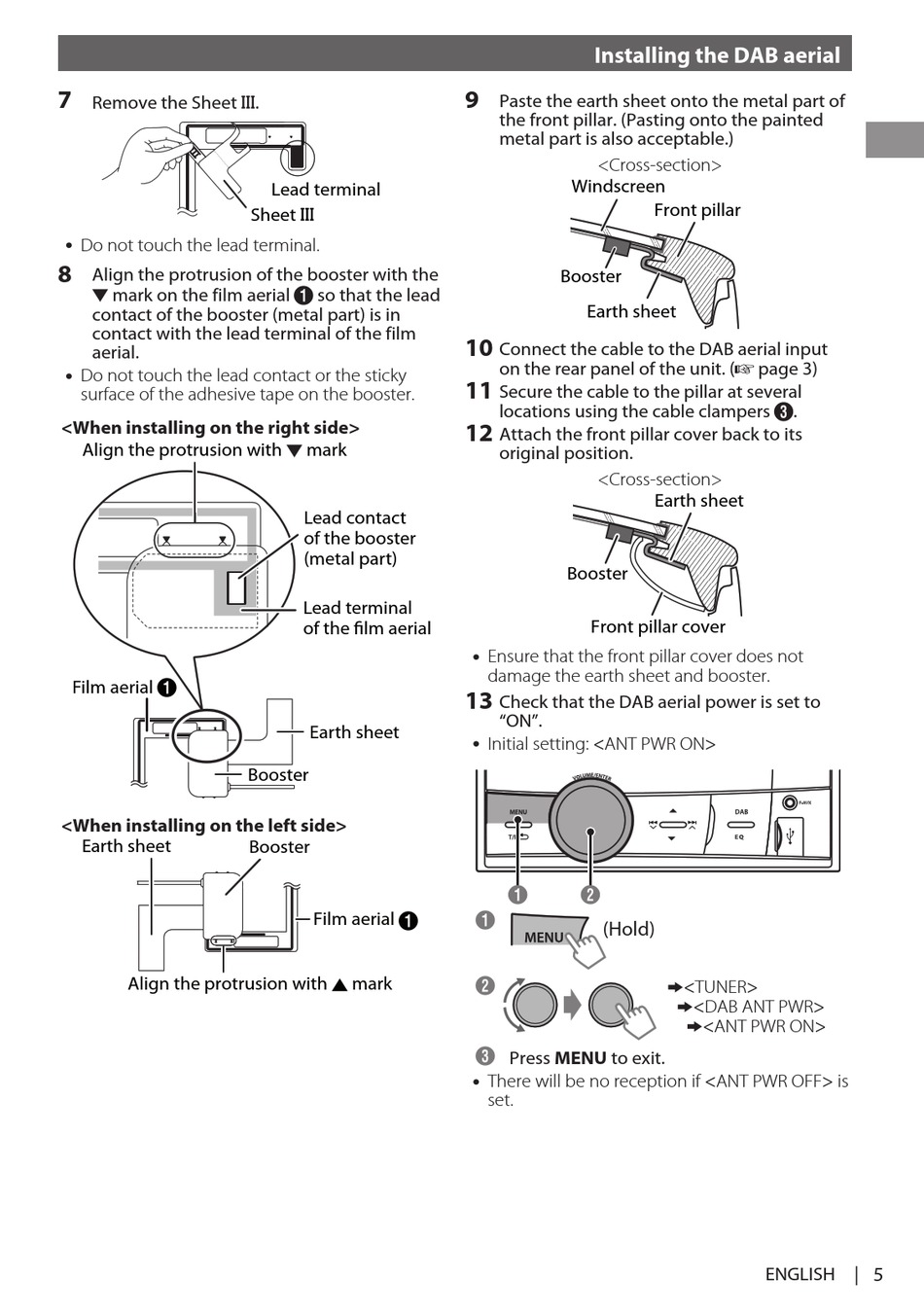

7
Remove the Sheet .
Do not touch the lead terminal.
8
Align the protrusion of the booster with the
mark on the film aerial
contact of the booster (metal part) is in
contact with the lead terminal of the film
aerial.
Do not touch the lead contact or the sticky
surface of the adhesive tape on the booster.
<When installing on the right side>
Align the protrusion with
Film aerial A
<When installing on the left side>
Earth sheet
Align the protrusion with
Lead terminal
Sheet
so that the lead
mark
Lead contact
of the booster
(metal part)
Lead terminal
of the film aerial
Earth sheet
Booster
Booster
Film aerial A
mark
Installing the DAB aerial
9
Paste the earth sheet onto the metal part of
the front pillar. (Pasting onto the painted
metal part is also acceptable.)
<Cross-section>
Windscreen
Booster
Earth sheet
10
Connect the cable to the DAB aerial input
on the rear panel of the unit. (
11
Secure the cable to the pillar at several
locations using the cable clampers
12
Attach the front pillar cover back to its
original position.
<Cross-section>
Booster
Front pillar cover
Ensure that the front pillar cover does not
damage the earth sheet and booster.
13
Check that the DAB aerial power is set to
"ON".
Initial setting: <ANT PWR ON>
A B
(Hold)
Press MENU to exit.
There will be no reception if <ANT PWR OFF> is
set.
Front pillar
page 3)
.
Earth sheet
<TUNER>
<DAB ANT PWR>
<ANT PWR ON>
ENGLISH | 5
