5. O
VERVIEW OF THE INDOOR UNIT

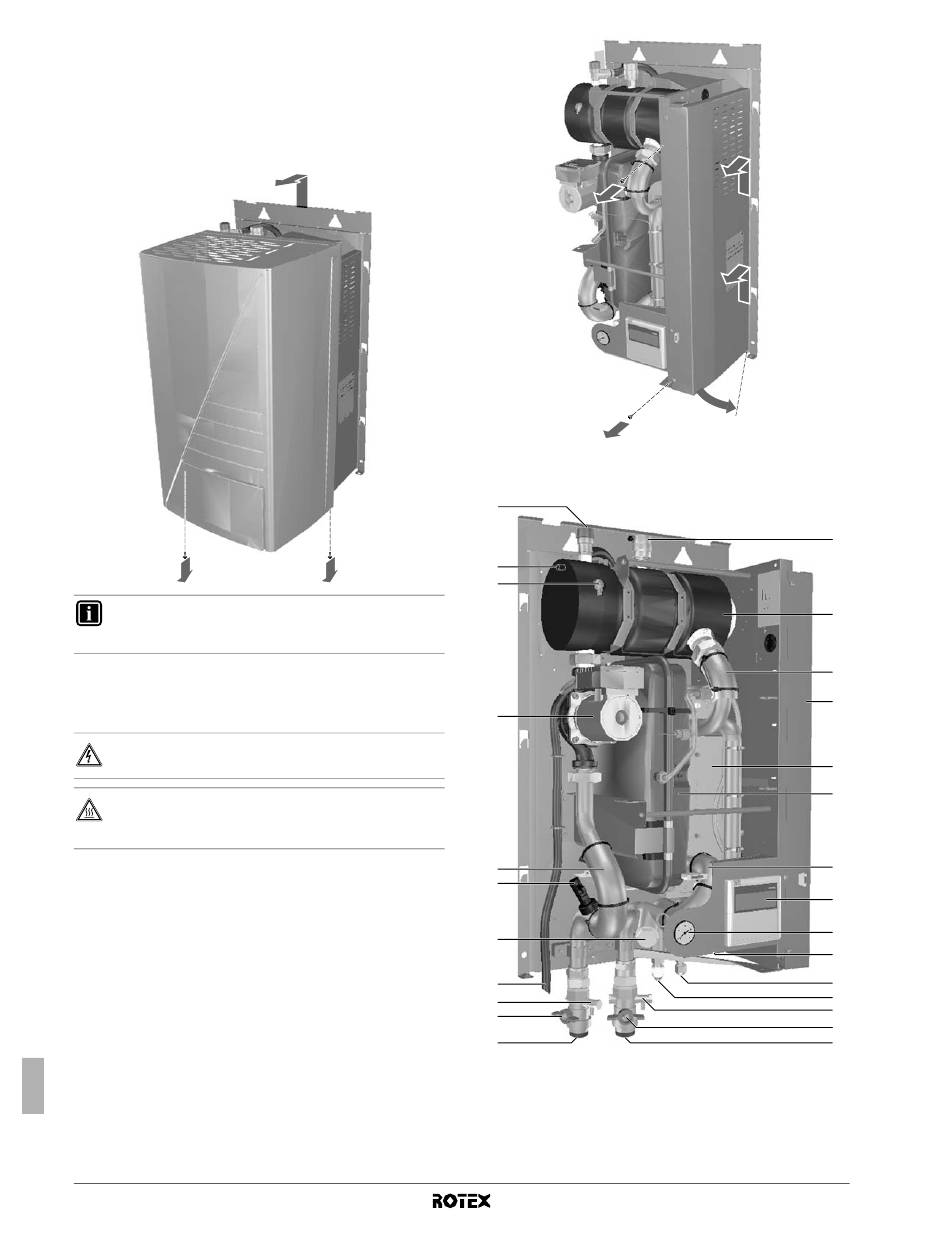

5.1. Opening the indoor unit

■
The front flap on the indoor unit cover gives access to the
manometer and user interface.
■
The indoor unit cover can be removed by removing the 2 bottom
screws and unhitching the cover.
INFORMATION
Make sure to fix the cover with the screws when installing
the cover (screws are delivered as accessory).
■
To gain access to the switch box components – e.g. to connect
the field wiring – the switch box service panel can be removed.
Thereto, loosen the front screws and unhitch the switch box
service panel.
DANGER: ELECTRICAL SHOCK
See "2. General safety precautions" on page 2.
DANGER: DO NOT TOUCH PIPING AND INTERNAL
PARTS
See "2. General safety precautions" on page 2.
Installation manual
10
All manuals and user guides at all-guides.com

5.2. Main components

20
19
18
17
3
16
14
21
13
10
12
3 3
1 1
3
3
2
1
RKHBH/X016BB
Indoor unit for air to water heat pump system
4PW62576-1 – 10.2010
1
2
3
4
5
6
3
7
15
3
8
9
13
10
11
