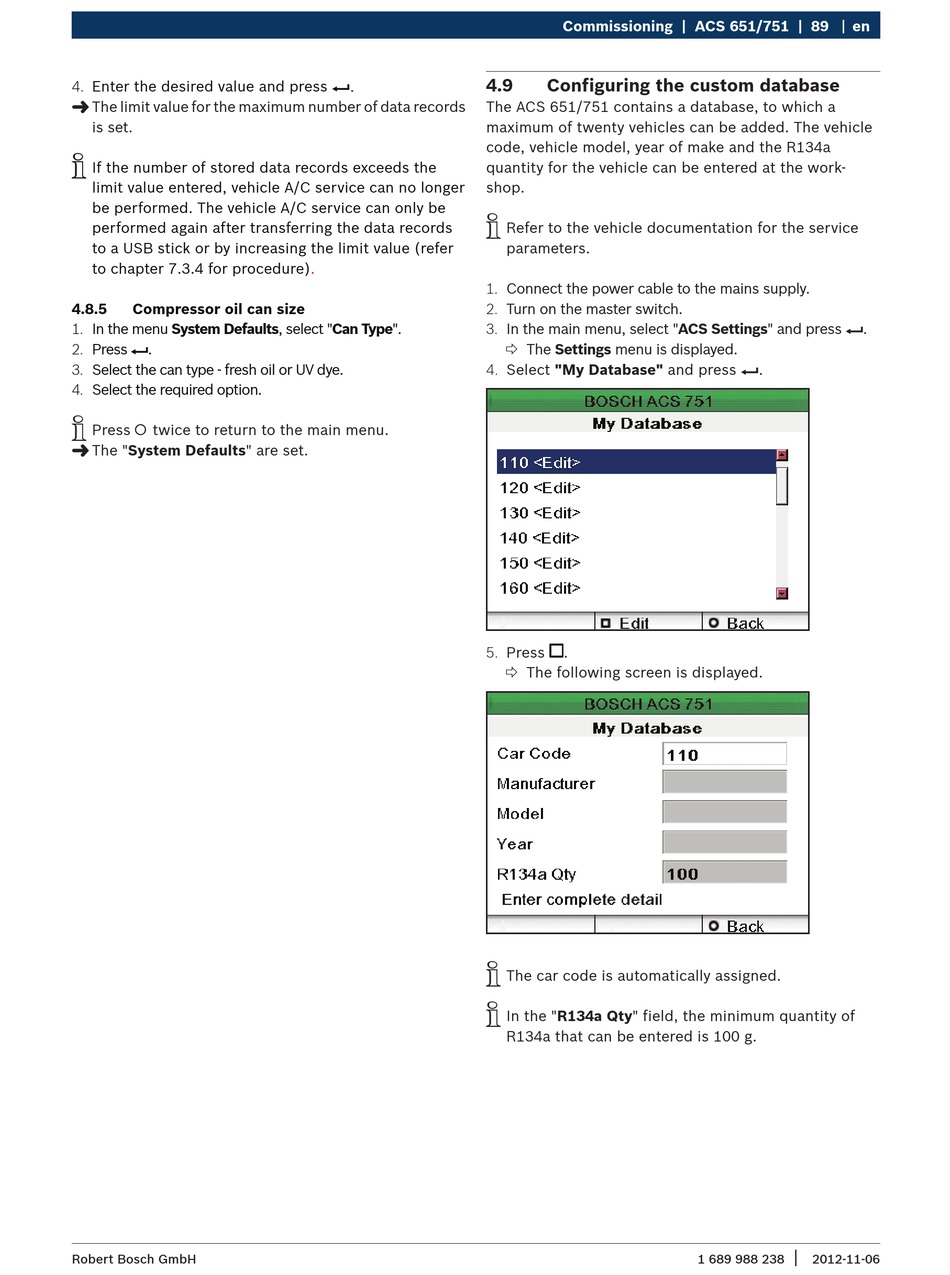

Bosch ACS 651 Originalbetriebsanleitung Seite 89

4. Enter the desired value and press E.
"
The limit value for the maximum number of data records
is set.
i
If the number of stored data records exceeds the
limit value entered, vehicle A/C service can no longer
be performed. The vehicle A/C service can only be
performed again after transferring the data records
to a USB stick or by increasing the limit value (refer
to chapter 7.3.4 for procedure).
4.8.5 Compressor oil can size
1. In the menu System Defaults, select "Can Type".
2. Press E.
3. Select the can type - fresh oil or UV dye.
4. Select the required option.
i
Press c twice to return to the main menu.
"
The "System Defaults" are set.
Robert Bosch GmbH
Commissioning | ACS 651/751 | 89
4.9 Configuring the custom database
The ACS 651/751 contains a database, to which a
maximum of twenty vehicles can be added. The vehicle
code, vehicle model, year of make and the R134a
quantity for the vehicle can be entered at the work-
shop.
i
Refer to the vehicle documentation for the service
parameters.
1. Connect the power cable to the mains supply.
2. Turn on the master switch.
3. In the main menu, select "ACS Settings" and press E.
 The Settings menu is displayed.
4. Select "My Database" and press E.
5. Press .
 The following screen is displayed.
i
The car code is automatically assigned.
i
In the "R134a Qty" field, the minimum quantity of
R134a that can be entered is 100 g.
en
|
1 689 988 238 2012-11-06
