Replacing the Drive Belt of the big Brushing Roller

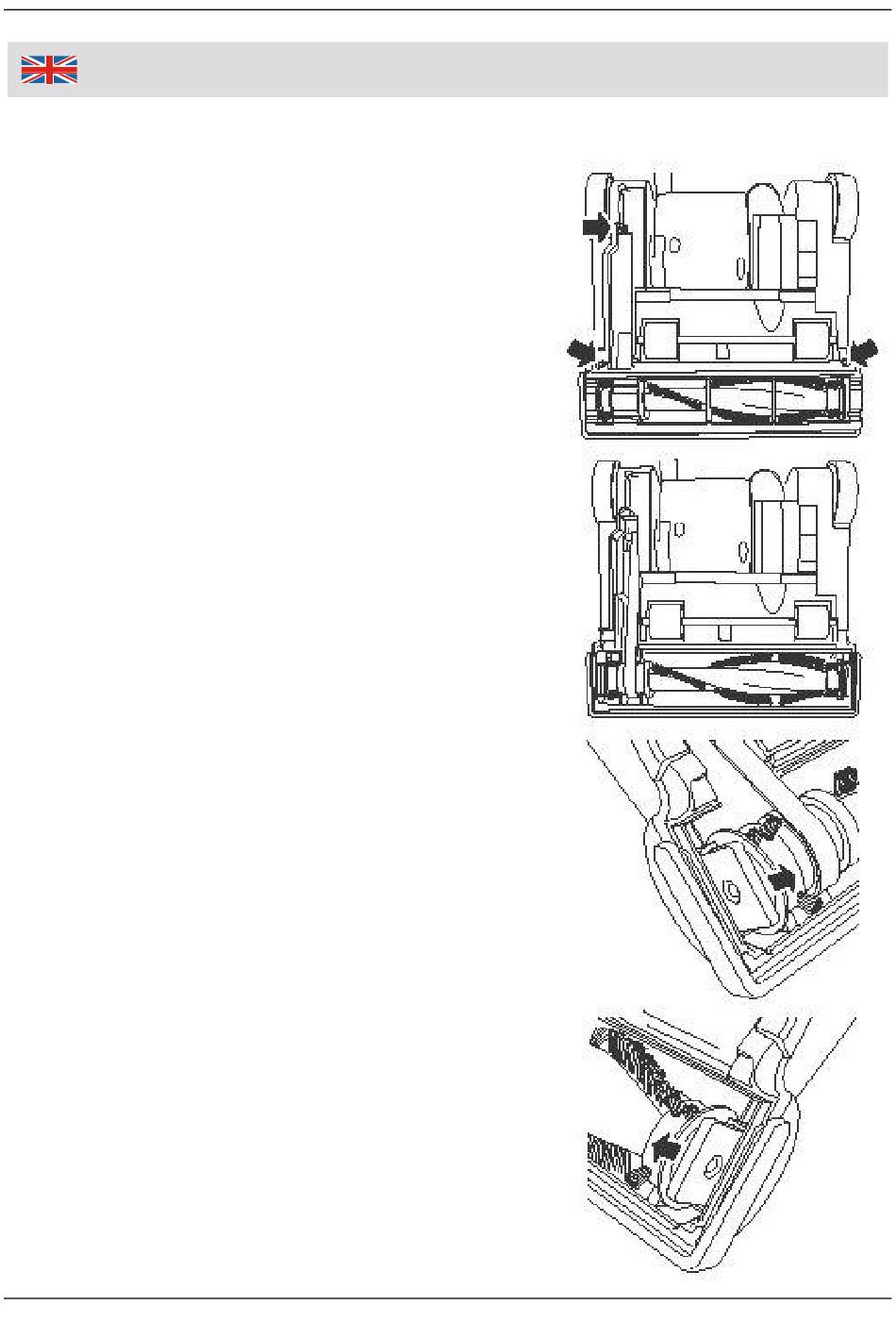

1. If the drive belt becomes worn or defective
and has to be replaced, first tilt the vacuum
cleaner in the working position (3) for
vacuuming under low furniture. Now carefully
turn over the vacuum cleaner.
2. Unscrew the three screws with a suitable
cross slot screwdriver and remove the cover.
3. First pull out the brushing roller from one side
of the notch and then the opposite side.
4. Remove the brushing roller and take out the
drive belt.
5. Insert the new drive belt over the arbor and
reattach the brushing roller in reverse order.
6. Turn the brushing roller by hand until the
drive belt runs centrally in the provided
correct position.
7. Re-tighten the cover with the three screws.
Tighten the screws only hand tight.
The article number of the replacement drive
belt is 91 57 074.
