Replacing the Drive Belt of the big Brushing Roller

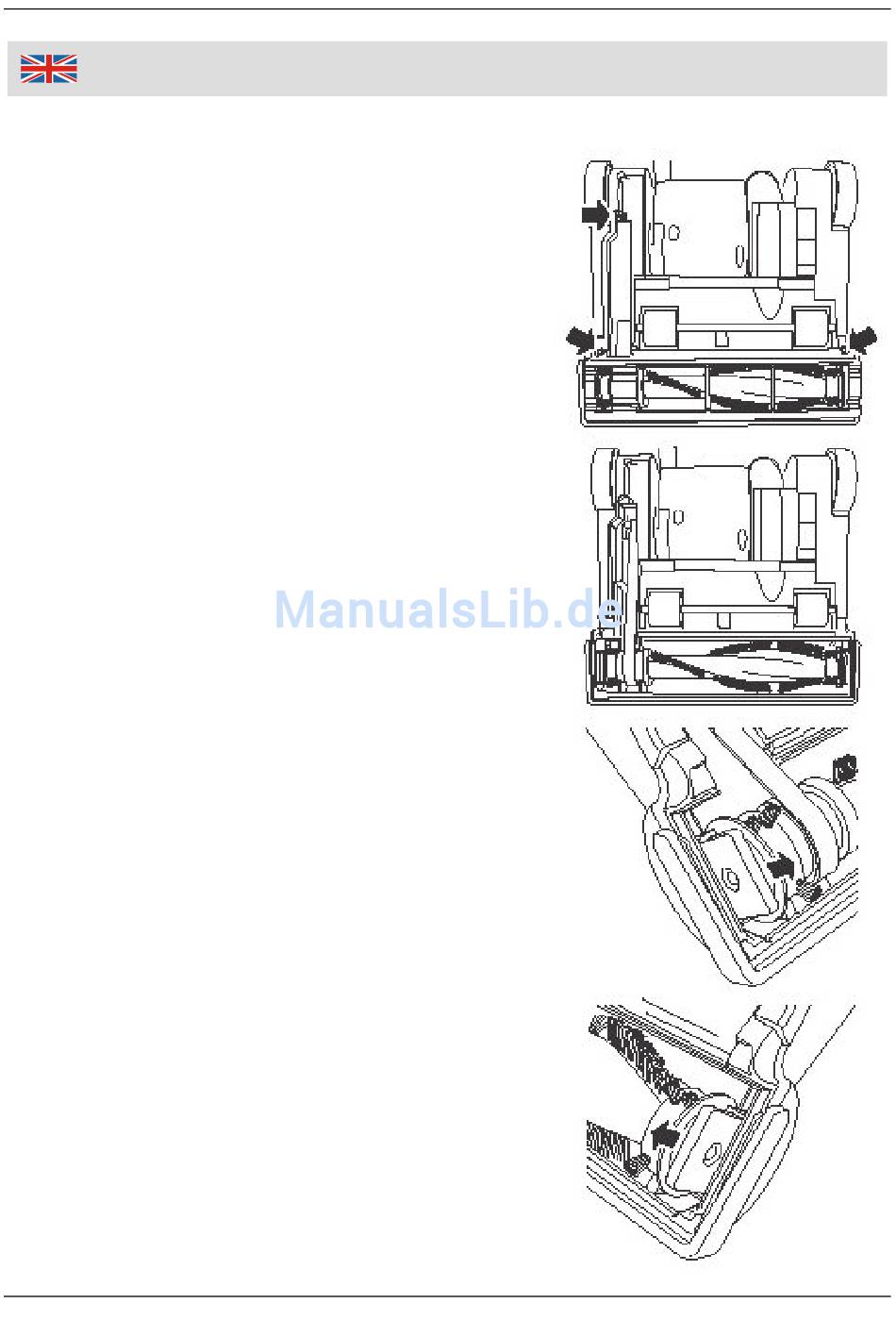

1. If the drive belt becomes worn or defective
and has to be replaced, first tilt the vacuum
cleaner in the working position (3) for
vacuuming under low furniture. Now care-
fully turn over the vacuum cleaner.
2. Unscrew the three screws with a suitable
cross slot screwdriver and remove the cover.
3. First pull out the brushing roller from one
side of the notch and than the opposite side.
4. Remove the brushing roller and take out the
drive belt.
5. Insert the new drive belt over the arbor and
reattach the brushing roller in reverse order.
6. Turn the brushing roller by hand until the
drive belt runs centrally in the provided
correct position.
7. Retighten the cover with the three screws.
Only hand tight the screws.
The article no. for the drive belt is 91 57 074.
