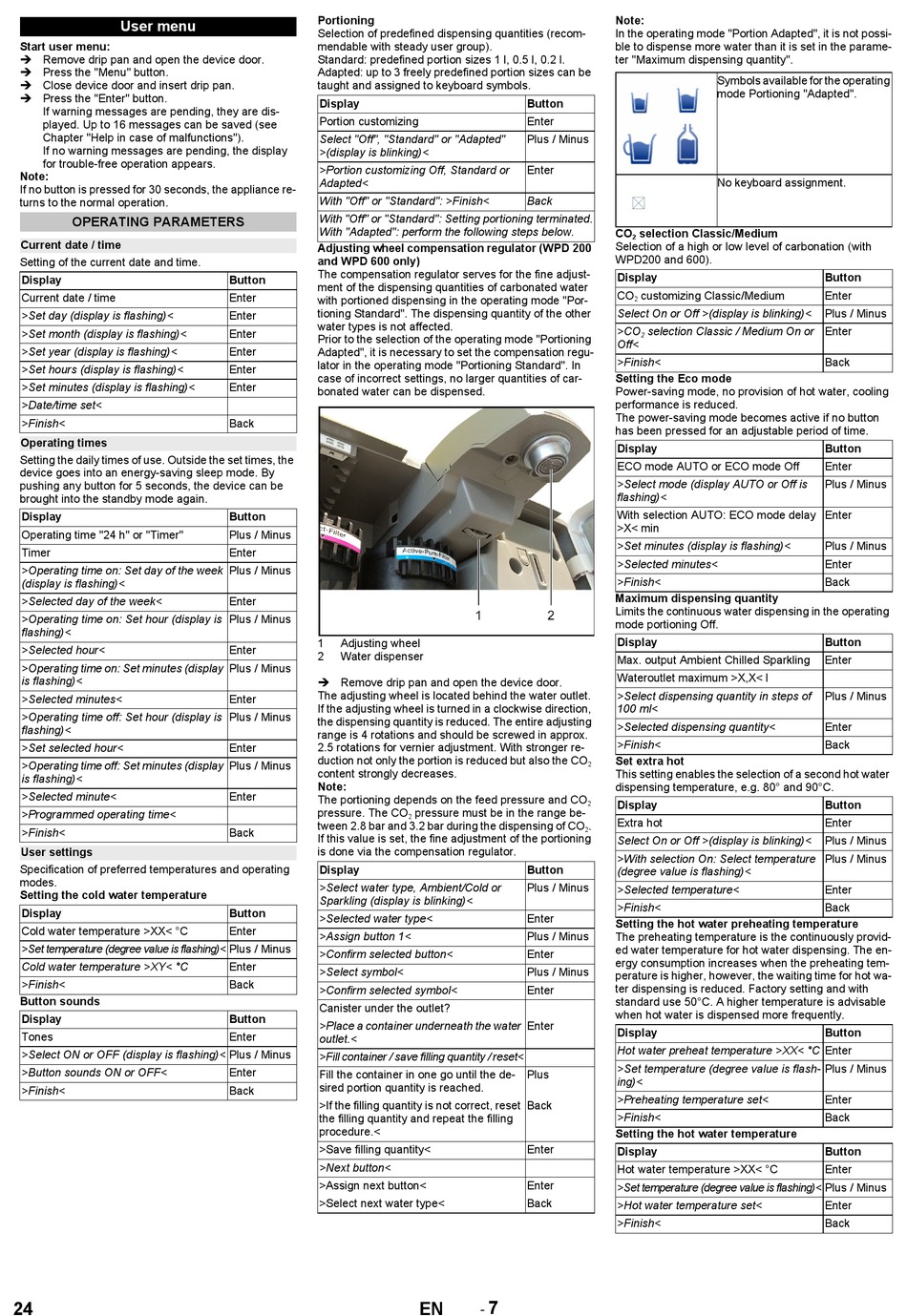

User menu
Start user menu:
 Remove drip pan and open the device door.
 Press the "Menu" button.
 Close device door and insert drip pan.
 Press the "Enter" button.
If warning messages are pending, they are dis-
played. Up to 16 messages can be saved (see
Chapter "Help in case of malfunctions").
If no warning messages are pending, the display
for trouble-free operation appears.
Note:
If no button is pressed for 30 seconds, the appliance re-
turns to the normal operation.
OPERATING PARAMETERS
Current date / time
Setting of the current date and time.
Display
Current date / time
>Set day (display is flashing)<
>Set month (display is flashing)<
>Set year (display is flashing)<
>Set hours (display is flashing)<
>Set minutes (display is flashing)<
>Date/time set<
>Finish<
Operating times
Setting the daily times of use. Outside the set times, the
device goes into an energy-saving sleep mode. By
pushing any button for 5 seconds, the device can be
brought into the standby mode again.
Display
Operating time "24 h" or "Timer"
Timer
>Operating time on: Set day of the week
(display is flashing)<
>Selected day of the week<
>Operating time on: Set hour (display is
flashing)<
>Selected hour<
>Operating time on: Set minutes (display
is flashing)<
>Selected minutes<
>Operating time off: Set hour (display is
flashing)<
>Set selected hour<
>Operating time off: Set minutes (display
is flashing)<
>Selected minute<
>Programmed operating time<
>Finish<
User settings
Specification of preferred temperatures and operating
modes.
Setting the cold water temperature
Display
Cold water temperature >XX< °C
>Set temperature (degree value is flashing)< Plus / Minus
Cold water temperature >XY< °C
>Finish<
Button sounds
Display
Tones
>Select ON or OFF (display is flashing)< Plus / Minus
>Button sounds ON or OFF<
>Finish<
24
Portioning
Selection of predefined dispensing quantities (recom-
mendable with steady user group).
Standard: predefined portion sizes 1 l, 0.5 l, 0.2 l.
Adapted: up to 3 freely predefined portion sizes can be
taught and assigned to keyboard symbols.
Display
Portion customizing
Select "Off", "Standard" or "Adapted"
>(display is blinking)<
>Portion customizing Off, Standard or
Adapted<
With "Off" or "Standard": >Finish<
With "Off" or "Standard": Setting portioning terminated.
With "Adapted": perform the following steps below.
Adjusting wheel compensation regulator (WPD 200
and WPD 600 only)
The compensation regulator serves for the fine adjust-
Button
ment of the dispensing quantities of carbonated water
Enter
with portioned dispensing in the operating mode "Por-
tioning Standard". The dispensing quantity of the other
Enter
water types is not affected.
Enter
Prior to the selection of the operating mode "Portioning
Enter
Adapted", it is necessary to set the compensation regu-
lator in the operating mode "Portioning Standard". In
Enter
case of incorrect settings, no larger quantities of car-
Enter
bonated water can be dispensed.
Back
Button
Plus / Minus
Enter
Plus / Minus
Enter
Plus / Minus
1 Adjusting wheel
Enter
2 Water dispenser
Plus / Minus
 Remove drip pan and open the device door.
The adjusting wheel is located behind the water outlet.
Enter
If the adjusting wheel is turned in a clockwise direction,
Plus / Minus
the dispensing quantity is reduced. The entire adjusting
range is 4 rotations and should be screwed in approx.
2.5 rotations for vernier adjustment. With stronger re-
Enter
duction not only the portion is reduced but also the CO
Plus / Minus
content strongly decreases.
Note:
Enter
The portioning depends on the feed pressure and CO
pressure. The CO
tween 2.8 bar and 3.2 bar during the dispensing of CO
Back
If this value is set, the fine adjustment of the portioning
is done via the compensation regulator.
Display
>Select water type, Ambient/Cold or
Sparkling (display is blinking)<
Button
>Selected water type<
Enter
>Assign button 1<
>Confirm selected button<
Enter
>Select symbol<
Back
>Confirm selected symbol<
Canister under the outlet?
Button
>Place a container underneath the water
Enter
outlet.<
>Fill container / save filling quantity / reset<
Enter
Fill the container in one go until the de-
sired portion quantity is reached.
Back
>If the filling quantity is not correct, reset
the filling quantity and repeat the filling
procedure.<
>Save filling quantity<
>Next button<
>Assign next button<
>Select next water type<
Button
Enter
Plus / Minus
Enter
Back
pressure must be in the range be-
2
Button
Plus / Minus
Enter
Plus / Minus
Enter
Plus / Minus
Enter
Enter
Plus
Back
Enter
Enter
Back
7
-
EN
Note:
In the operating mode "Portion Adapted", it is not possi-
ble to dispense more water than it is set in the parame-
ter "Maximum dispensing quantity".
Symbols available for the operating
mode Portioning "Adapted".
No keyboard assignment.
CO selection Classic/Medium
2
Selection of a high or low level of carbonation (with
WPD200 and 600).
Display
CO customizing Classic/Medium
2
Select On or Off >(display is blinking)<
>CO selection Classic / Medium On or
2
Off<
>Finish<
Setting the Eco mode
Power-saving mode, no provision of hot water, cooling
performance is reduced.
The power-saving mode becomes active if no button
has been pressed for an adjustable period of time.
Display
ECO mode AUTO or ECO mode Off
>Select mode (display AUTO or Off is
flashing)<
With selection AUTO: ECO mode delay
>X< min
>Set minutes (display is flashing)<
>Selected minutes<
>Finish<
Maximum dispensing quantity
Limits the continuous water dispensing in the operating
mode portioning Off.
Display
Max. output Ambient Chilled Sparkling
Wateroutlet maximum >X,X< l
>Select dispensing quantity in steps of
100 ml<
>Selected dispensing quantity<
>Finish<
Set extra hot
2
This setting enables the selection of a second hot water
dispensing temperature, e.g. 80° and 90°C.
Display
2
Extra hot
.
2
Select On or Off >(display is blinking)<
>With selection On: Select temperature
(degree value is flashing)<
>Selected temperature<
>Finish<
Setting the hot water preheating temperature
The preheating temperature is the continuously provid-
ed water temperature for hot water dispensing. The en-
ergy consumption increases when the preheating tem-
perature is higher, however, the waiting time for hot wa-
ter dispensing is reduced. Factory setting and with
standard use 50°C. A higher temperature is advisable
when hot water is dispensed more frequently.
Display
Hot water preheat temperature >XX< °C Enter
>Set temperature (degree value is flash-
ing)<
>Preheating temperature set<
>Finish<
Setting the hot water temperature
Display
Hot water temperature >XX< °C
>Set temperature (degree value is flashing)< Plus / Minus
>Hot water temperature set<
>Finish<
Button
Enter
Plus / Minus
Enter
Back
Button
Enter
Plus / Minus
Enter
Plus / Minus
Enter
Back
Button
Enter
Plus / Minus
Enter
Back
Button
Enter
Plus / Minus
Plus / Minus
Enter
Back
Button
Plus / Minus
Enter
Back
Button
Enter
Enter
Back
