Declaration of Conformity

We declare under our sole responsibility that this
product is in conformity with the following standards
or standardization documents:
EN 60950-1:2001.12 + A11:2004.04,
EN 50366:2003.05,
EN 55022:1998.09 + A1:2000.10 + A2:2003.01,
EN 61000-6-2:2001.10,
EN 61000-3-2:2000.12, EN 61000-3-3:1995.01,
EN 300328 V1.5.1:2004.08 according to the provi-
sions of the directives 73/23/EC, 89/336/EEC,
99/05/EC.
05
Operating and Storage Environment
The device is suitable exclusively for operation at en-
closed work sites. For trouble-free operation of the
device, the allowed ambient temperature should lie
between 5 °C and 70 °C (41 °F and 158 °F) at an al-
lowed relative humidity of between 20 and 90 %, free
of dew.
Connections of the EXAConnecT
In order to document the measured values that the
EXAConnecT access point receives from the BT
screwdrivers, you will need a personal computer
(PC). The configuration of your PC or of your firm-
specific computer system will not be explained in this
operating manual. You will also be given only basic
instructions for the connection of release buttons or
barcode scanners.
Because the EXAConnecT access point is delivered
without connecting leads, the corresponding con-
nections have to be mounted first.
The connection
EXAConnecT and the external
tools may be performed only by
personnel trained in electrical engineering and
information technology on account of the com-
plexity of the electrical circuits. Otherwise, the
safety of the operator and of the tools is not ensured.
Ethernet Connection on the EXAConnecT
Before you open the tool, take
care that it is not connected to
the power supply. The housing of the tool must be
completely voltage-free, because, otherwise, there
exists the danger of electric shock.
3 609 929 A58 • (05.09) T
operator of the tool must take appropriate measures
to eliminate this interference.
Dr. Egbert Schneider
Senior Vice President
Engineering
Robert Bosch GmbH, Power Tools Division

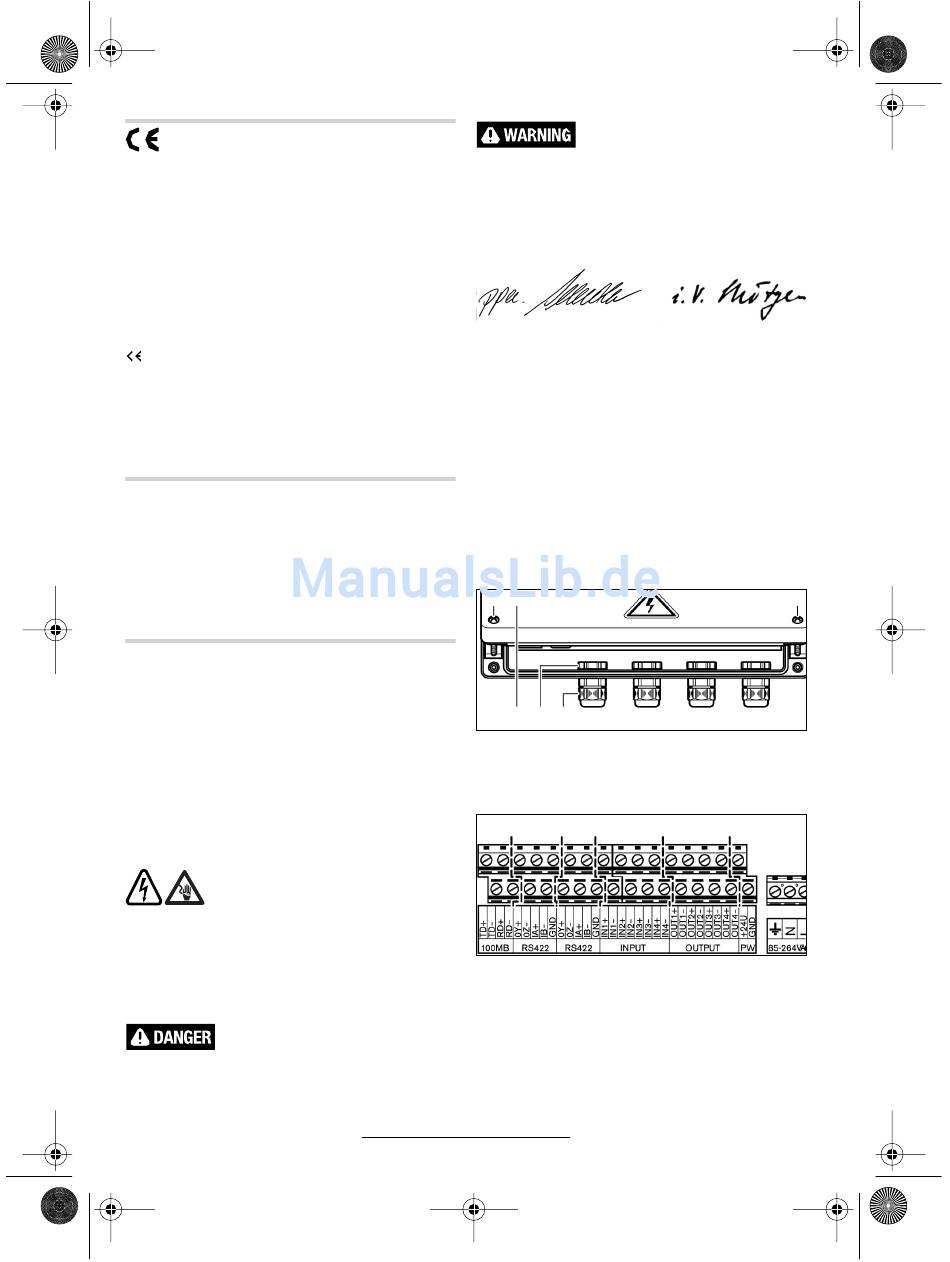

4 MOUNTING
You can connect the EXAConnecT access point di-
rectly to your PC as well as to a firm-specific network.
For this purpose, you will need a twisted pair cable for
Ethernet networks.
Loosen the sleeve 7 on the left cable entrance slot 8
by turning it in the counterclockwise direction.
3
2 8 7
Remove the maintenance cover plate 2 on the volt-
age-free EXAConnecT by unscrewing the two small
bottom Phillips screws 3. You thereby gain access
to the terminal strip 9.
10 11
of the
Assignment of the Terminal Strip 9
10 Network connection (Ethernet)
11 RS422 serial interface (COM1)
12 RS422 serial interface (COM2)
13 24 V Input
14 24 V Output
15 Direct current output
16 Connection to the power supply
English–5
The operation of this tool can
cause radio interference in a
residential area. In this case, the
Dr. Eckerhard Strötgen
Head of Product
Certification
12 13 14 15
9
3
16
