Table of Contents
1.
Delivery Scope ..................................................................................................18
2.
Safety Notices ....................................................................................................18
3.
Function Description ..........................................................................................19
4.
Operating Elements and Connections ..............................................................20
5.
Installation ..........................................................................................................21
6.
Handling ............................................................................................................22
7.
Maintenance & Repair ........................................................................................24
8.
Disposal..............................................................................................................25
9.
Troubleshooting ................................................................................................25
10. Technical Data....................................................................................................26
11. Pin Assignment of the Plugs ..............................................................................27
12. Tips and Notices ................................................................................................28
1. Delivery Scope
• Power pack
• Power cable
• Operating Instructions
2. Safety Notices
Damages caused by non-compliance with this operating manual
lead to the expiration of the warranty! We will not assume any lia-
bility for subsequent damages!
We will not assume any liability for damages to items or persons
caused by improper handling or non-compliance with the safety
notices! Any guarantee claims will be null and void in such cases.
For reasons of safety and licensing (CE) it is not allowed to alter respectively modify
the product.
Operation is only admissible in dry rooms.
The only permissible voltage source is an approved grounded socket (230 V~/50 Hz)
of the public supply net.
Appliances that are operated on supply voltage do not belong in the hands of chil-
dren. Therefore, be especially careful when children are present.
18

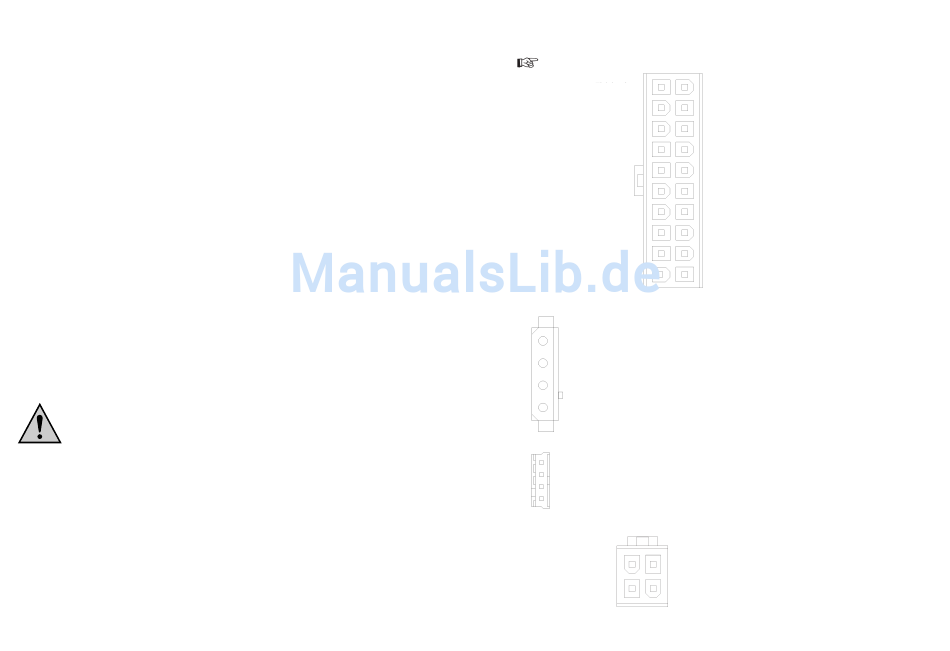

11. Pin Assignment of the Plugs
a) ATX plug
Page
The colours of individual cables (e.g. PS ON and Power OK) might deviate.
-5V (white)
GND (black)
GND (black)
GND (black)
PS ON (green)
GND (black)
-12V (blue)
+3.3V/sense (orange)
b) 5.25" plug
+5V (red)
GND (black)
GND (black)
+12V (yellow)
c) 3.5" plug
+12V (yellow)
GND (black)
GND (black)
+5V (red)
d) 4-pole ATX2.0-12V plug
+12V (yellow)
GND (black)
+12V (yellow)
+5V (red)
+5V (red)
+5V standby (violet)
Power OK (grey)
GND (black)
+5V (red)
GND (black)
+5V (red)
GND (black)
+3.3V (orange)
+3.3V (orange)
+12V (yellow)
GND (black)
27
