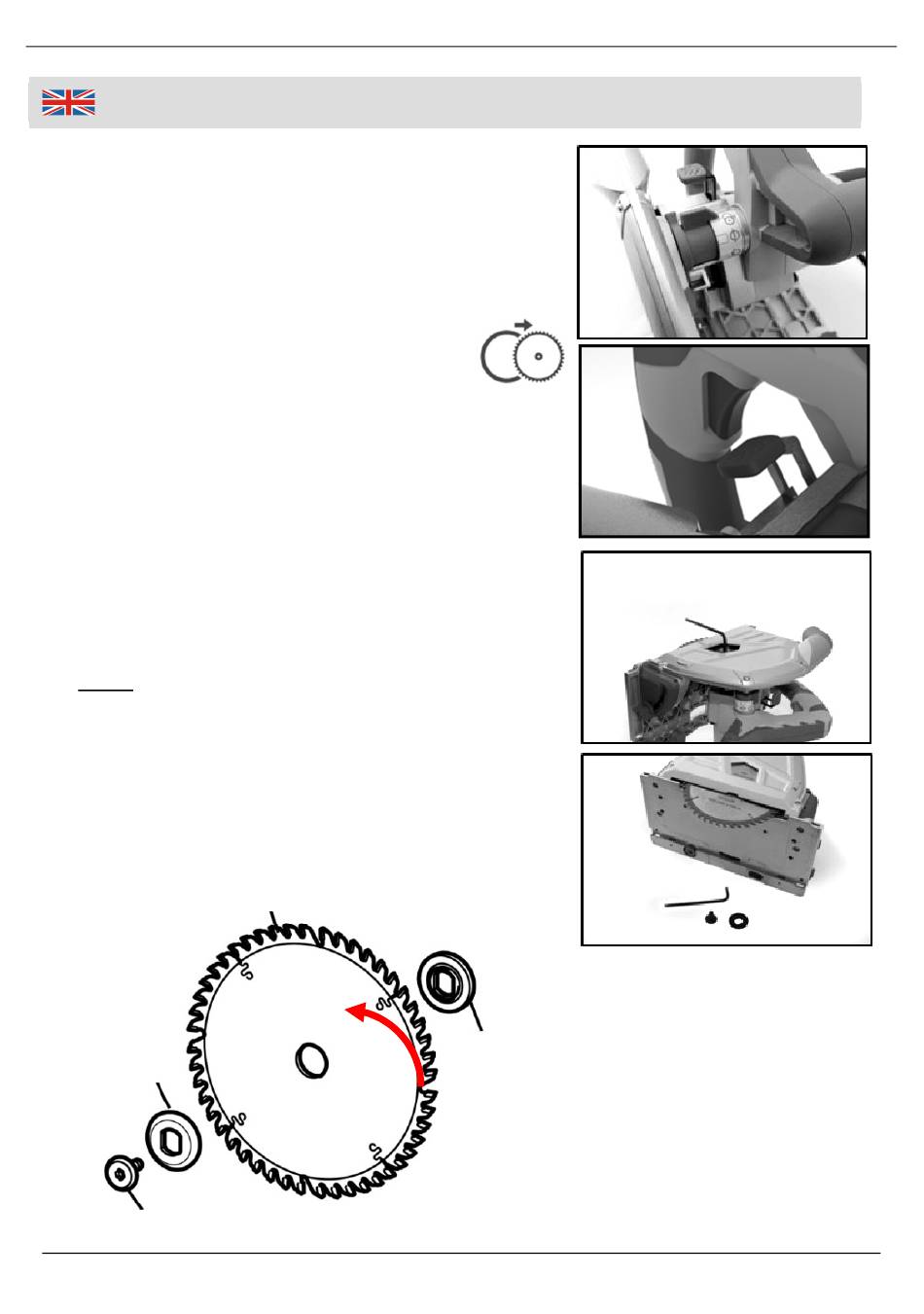

Changing the Saw Blade
Before any maintenance work always switch off
the plunge saw and disconnect from mains power!
1. Loosen both knobs (10) and swivel the plunge
saw to 0° position before changing the saw
blade. Tighten the rotary knobs again.
2. Set the selector switch (20) to the
change saw blade icon.
3. Press the switch lock (1) down and
push the motor down.
4. Press and hold the shaft lock down.
5. Use a 5 mm hex key to turn the screw at the
saw blade slightly clockwise or counter
clockwise until the spindle clicks into place.
6. Use the hex key to loosen the screw counter-
clockwise. Remove the outer flange and the
saw blade.
7. Clean both flanges and replace the saw blade.
Note: The rotation direction arrows of saw
blade and saw must correspond!
8. Replace the outer flange in such way that the
slaving pins sit in the recesses of the inner
flange.
9. Press and hold the shaft lock and tighten the
screw. Press the switch lock (1) for the casing
to swivel up again.
Saw Blade
Outer
Flange
Screw
All manuals and user guides at all-guides.com
Operation
Inner Flange
38
