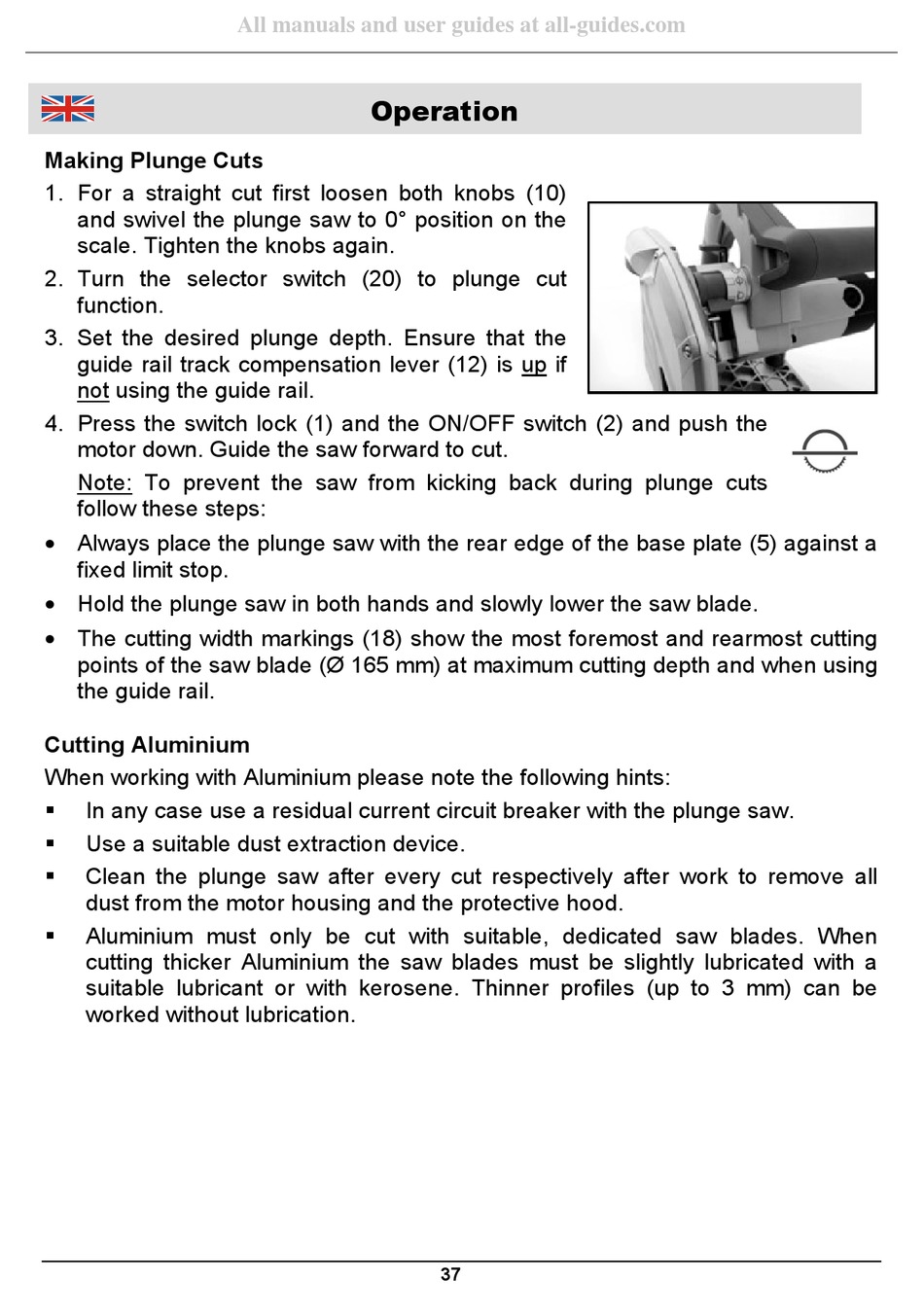

Making Plunge Cuts
1. For a straight cut first loosen both knobs (10)
and swivel the plunge saw to 0° position on the
scale. Tighten the knobs again.
2. Turn the selector switch (20) to plunge cut
function.
3. Set the desired plunge depth. Ensure that the
guide rail track compensation lever (12) is up if
not using the guide rail.
4. Press the switch lock (1) and the ON/OFF switch (2) and push the
motor down. Guide the saw forward to cut.
Note: To prevent the saw from kicking back during plunge cuts
follow these steps:
• Always place the plunge saw with the rear edge of the base plate (5) against a
fixed limit stop.
• Hold the plunge saw in both hands and slowly lower the saw blade.
• The cutting width markings (18) show the most foremost and rearmost cutting
points of the saw blade (Ø 165 mm) at maximum cutting depth and when using
the guide rail.
Cutting Aluminium
When working with Aluminium please note the following hints:
In any case use a residual current circuit breaker with the plunge saw.
Use a suitable dust extraction device.
Clean the plunge saw after every cut respectively after work to remove all
dust from the motor housing and the protective hood.
Aluminium must only be cut with suitable, dedicated saw blades. When
cutting thicker Aluminium the saw blades must be slightly lubricated with a
suitable lubricant or with kerosene. Thinner profiles (up to 3 mm) can be
worked without lubrication.
