same time, so that the motor can be moved downwards. The saw blade emerges
from the protective cover. When lifting the saw the motor slides back into the
initial position.

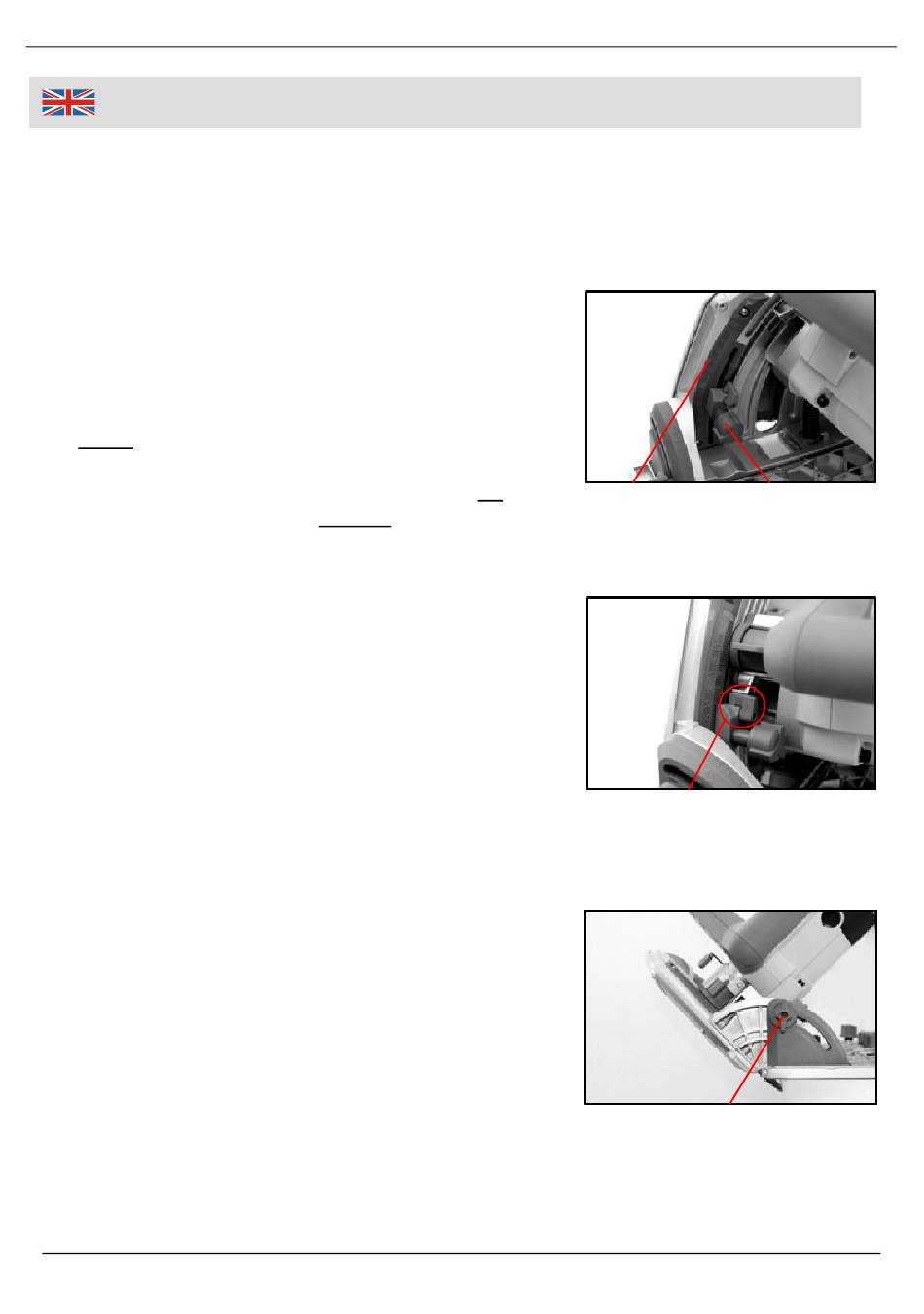

Setting the Cutting Depth
The cutting depth can be set between 0 – 58 mm:
1. Loosen the cutting depth limit stop knob (11)
and slide it to the desired cutting depth
according to the depth scale (13) to set the
cutting depth.
Note: The graduated values on the scale (13)
apply for straight cuts (90° cut). The guide rail
track compensation (12) must be tilted up when
using the plunge saw without guide rail. Only
when using the plunge saw with guide rail the
guide rail track compensation is used to
compensate for the thickness of the guide rail.
Using the guide rail = guide rail track
compensation down.
Not using the guide rail = guide rail track
compensation lever up.
2. Tighten the cutting depth limit stop knob (11).
The motor or respectively the saw blade can
now be pushed down to the set cutting depth.
For a clean, safe cut set the cutting depth in
such a way that only max. one saw blade tooth
protrudes under the work piece.
Setting the Cutting Angle
The plunge saw can be swivelled between 0° and
48°:
1. Loosen both knobs (10). Swivel the motor to
the desired cutting angle on the cutting angle
scale.
2. Tighten the knobs (10) again.
All manuals and user guides at all-guides.com
Operation
(13)
34
11)
(
(12)
(10)
