The robot is not diffi cult to install, but requires some preliminary planning in order to defi ne the
best area for installing the charging station, the power supply-transmitter unit and for tracing the
path of the perimeter wire.
INSTALLATION AREA OF THE CHARGING STATION AND POWER SUPPLY-TRANSMITTER UNIT
• The charging station must be positioned on
EN
the edge of the lawn, preferably in the lar-
gest area where other areas of the lawn are
easily accessible. The area with the char-
ging station is hereinafter referred to as the
"Primary Area."
Warning - Caution
Position the power supply-transmitter
unit in an area that cannot be accessed
by children. For example, at a height
above 160 cm (63 in.)
Warning - Caution
When connecting the electricity, make sure there is a power outlet near the
installation area. Make sure the connection to the mains power conforms to the
applicable laws. To operate in complete safety, make sure the electrical system,
which is connected to the power supply-transmitter unit, is equipped with a
well-functioning earth system.
Important
It is advisable to install the unit in a cabinet for electric components (for outdoor
or indoor use) that is well-ventilated to maintain a correct air circulation and
equipped with a key lock.
Warning - Caution
Make sure access to the power supply-transmitter unit is allowed only to
authorised people.
• Operation of the robot. The robot must be able to easily fi nd the charging station at the
end of the work cycle, which will also be the departure point for a new work cycle and for
reaching any other work areas (hereinafter referred to as the "Secondary Areas").
• Position the charging station according to these rules :
- On level ground
- On compact and stable ground with good drainage
- Preferably in the largest area of the lawn
- In case of sprinklers, make sure the water jets are not directed inside the charging station.
- Make sure the entrance of the charging station is positioned as shown in the fi gure so that
the robot can enter it by following the perimeter wire in a clockwise direction.
User's manual

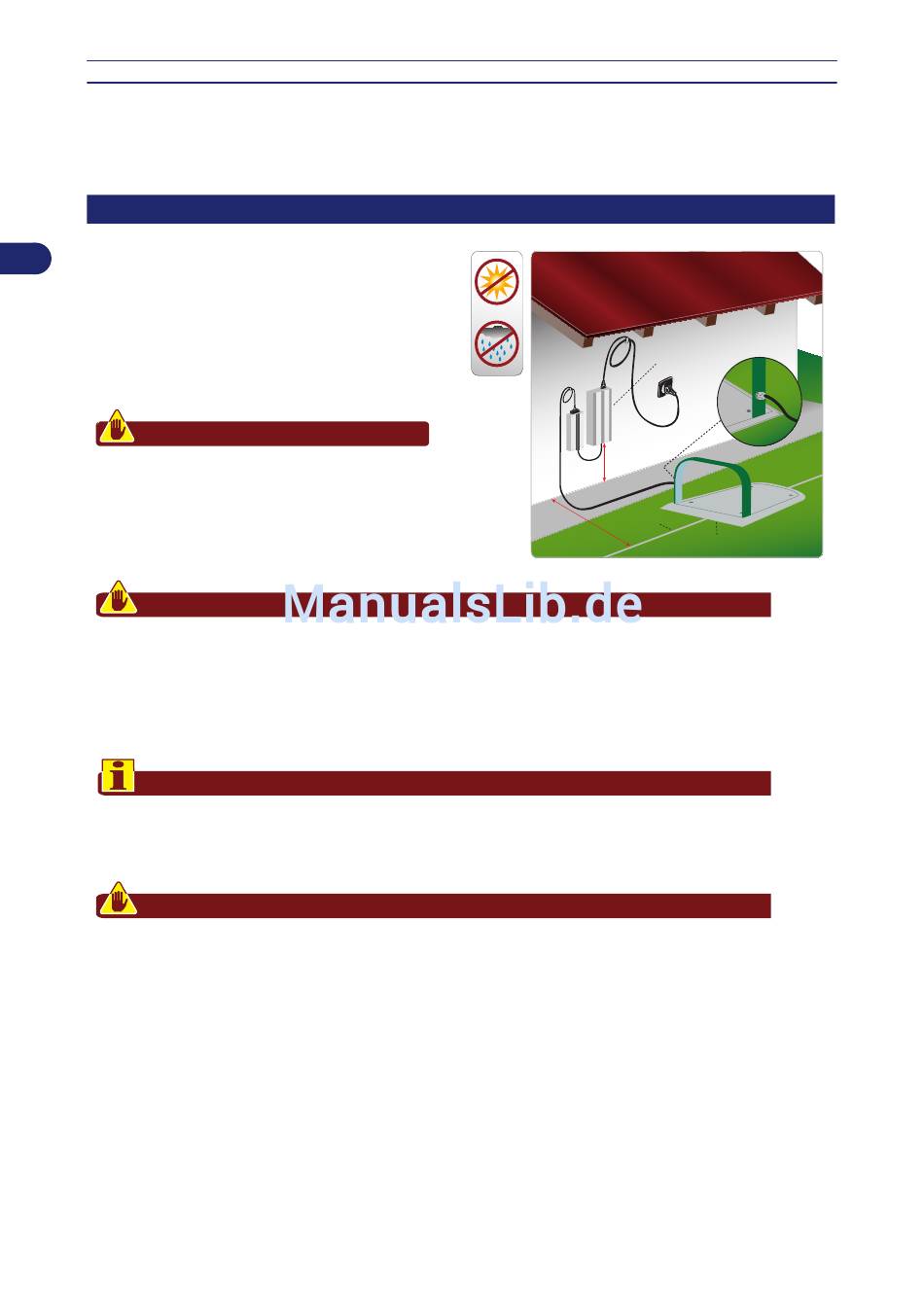

PLANNING OF PLANT INSTALLATION
16
Power supply-transmitter unit
Min. height. 160 cm
/ 63 inc.
perimeter wire
Min. width
200 cm
/ 78,74 inc.
charging station
