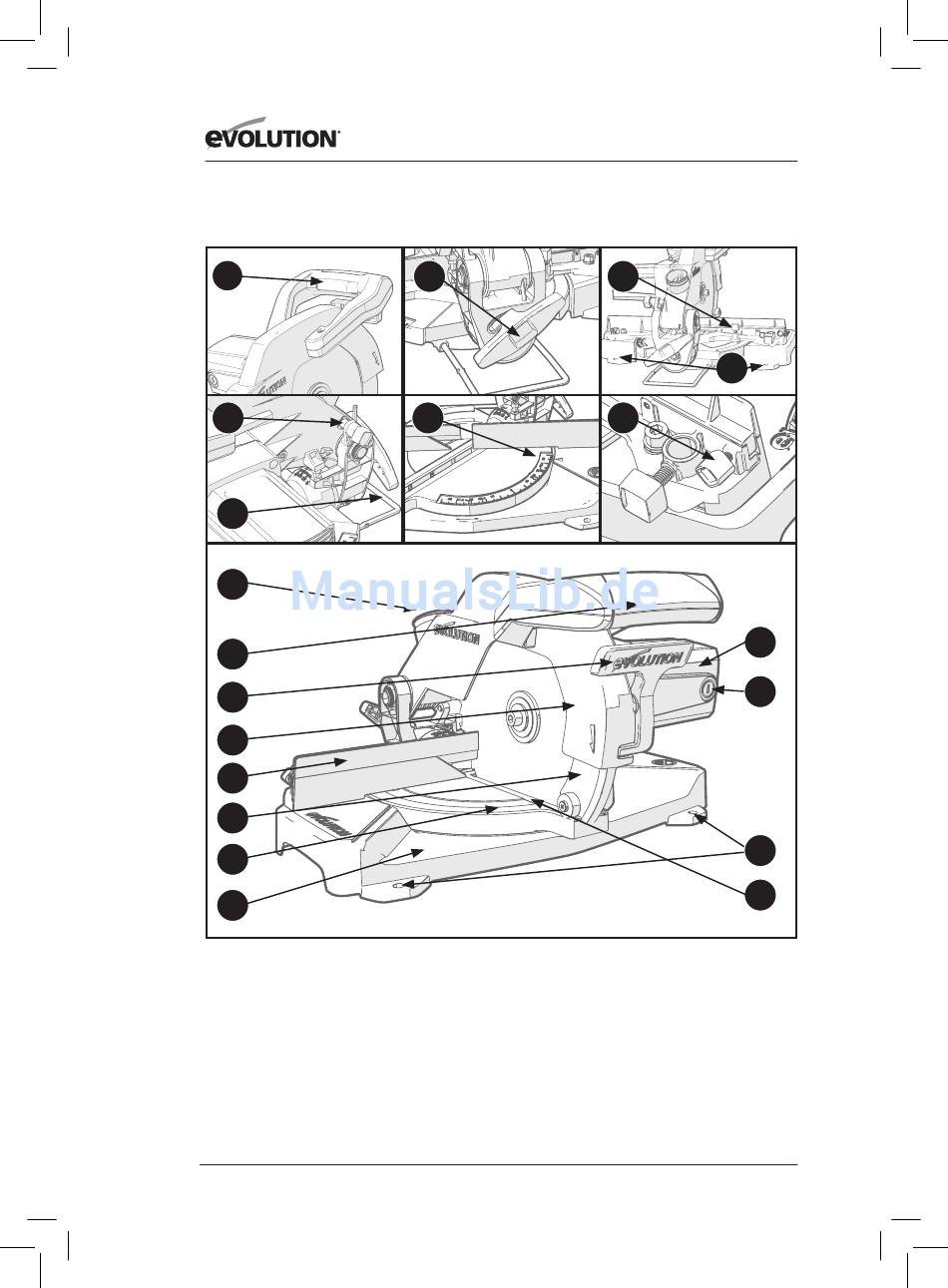

MACHINE OVERVIEW

1
4
7
8
9
10
11
12
13
14
15
1. ON/OFF TRIGGER SWITCH
2. BEVEL LOCKING HANDLE
3. MITRE LOCKING SCREW
4. HEAD LATCHING PIN
5. MITRE ANGLE SCALE
6. SLIDING FENCE LOCKING SCREW
7. REAR STABILISING ARM
8. DUST EXTRACTION PORT
9. CUTTING HEAD HANDLE
10. BLADE GUARD LOCKING LEVER
www.evolutionpowertools.com
2
5
11. UPPER BLADE GUARD
12. SLIDING FENCE
13. LOWER BLADE GUARD
14. ROTARY TABLE
15. MACHINE BASE/TABLE TOP
16. MOTOR HOUSING
17. CARBON BRUSHES
18. MOUNTING HOLE (x4)
19. TABLE INSERT
