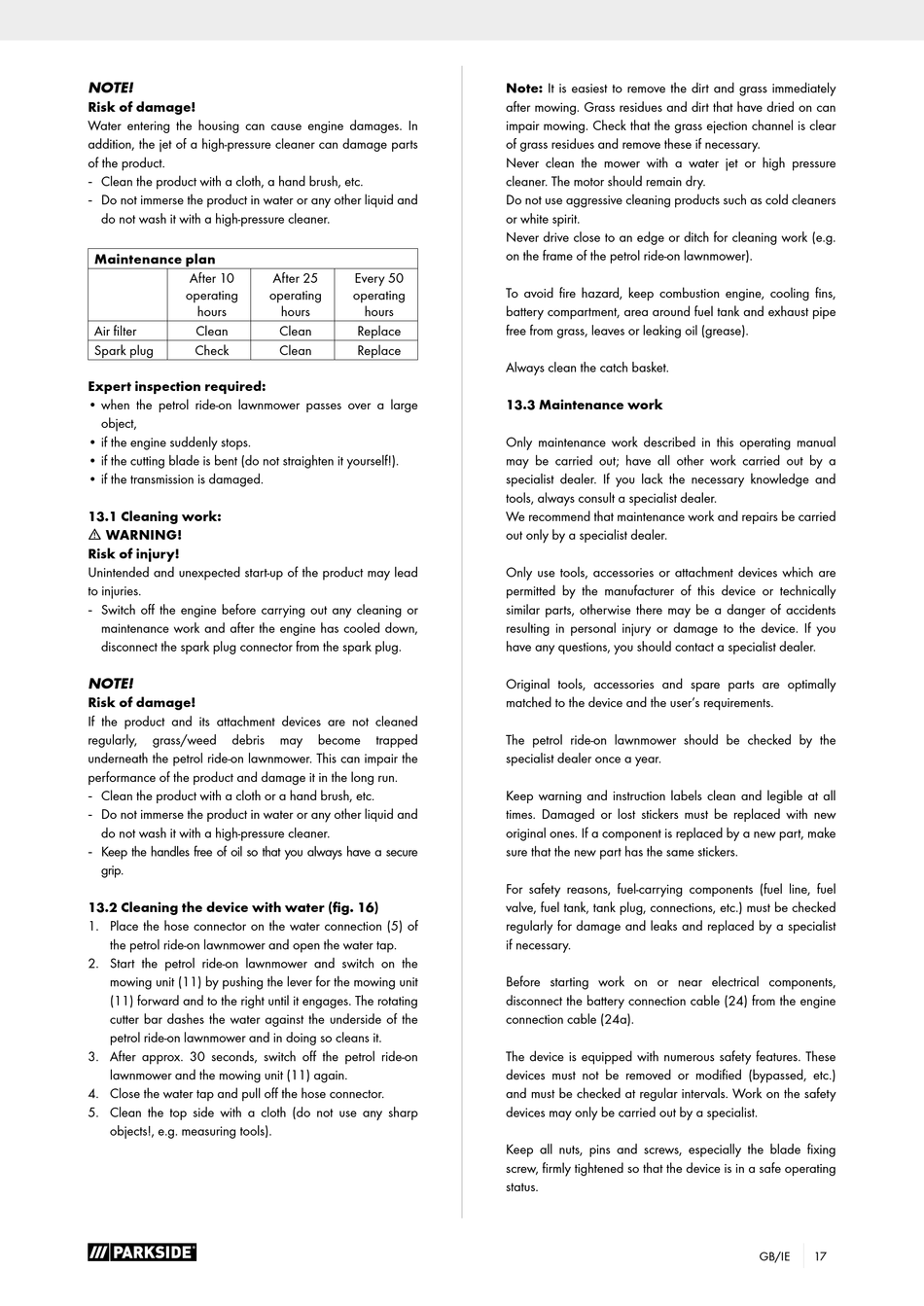

NOTE!
Risk of damage!
Water entering the housing can cause engine damages. In
addition, the jet of a high-pressure cleaner can damage parts
of the product.
- Clean the product with a cloth, a hand brush, etc.
- Do not immerse the product in water or any other liquid and
do not wash it with a high-pressure cleaner.

Maintenance plan

After 10
operating
hours
Air filter Clean
Spark plug Check
Expert inspection required:
• when the petrol ride-on lawnmower passes over a large
object,
• if the engine suddenly stops.
• if the cutting blade is bent (do not straighten it yourself!).
• if the transmission is damaged.

13.1 Cleaning work:

m WARNING!
Risk of injury!
Unintended and unexpected start-up of the product may lead
to injuries.
- Switch off the engine before carrying out any cleaning or
maintenance work and after the engine has cooled down,
disconnect the spark plug connector from the spark plug.
NOTE!
Risk of damage!
If the product and its attachment devices are not cleaned
regularly, grass/weed debris
underneath the petrol ride-on lawnmower. This can impair the
performance of the product and damage it in the long run.
- Clean the product with a cloth or a hand brush, etc.
- Do not immerse the product in water or any other liquid and
do not wash it with a high-pressure cleaner.
- Keep the handles free of oil so that you always have a secure
grip.
13.2 Cleaning the device with water (fig. 16)
1. Place the hose connector on the water connection (5) of
the petrol ride-on lawnmower and open the water tap.
2. Start the petrol ride-on lawnmower and switch on the
mowing unit (11) by pushing the lever for the mowing unit
(11) forward and to the right until it engages. The rotating
cutter bar dashes the water against the underside of the
petrol ride-on lawnmower and in doing so cleans it.
3. After approx. 30 seconds, switch off the petrol ride-on
lawnmower and the mowing unit (11) again.
4. Close the water tap and pull off the hose connector.
5. Clean the top side with a cloth (do not use any sharp
objects!, e.g. measuring tools).
After 25 Every 50
operating operating
hours hours
Clean Replace
Clean Replace
may become trapped
Note: It is easiest to remove the dirt and grass immediately
after mowing. Grass residues and dirt that have dried on can
impair mowing. Check that the grass ejection channel is clear
of grass residues and remove these if necessary.
Never clean the mower with a water jet or high pressure
cleaner. The motor should remain dry.
Do not use aggressive cleaning products such as cold cleaners
or white spirit.
Never drive close to an edge or ditch for cleaning work (e.g.
on the frame of the petrol ride-on lawnmower).
To avoid fire hazard, keep combustion engine, cooling fins,
battery compartment, area around fuel tank and exhaust pipe
free from grass, leaves or leaking oil (grease).
Always clean the catch basket.

13.3 Maintenance work

Only maintenance work described in this operating manual
may be carried out; have all other work carried out by a
specialist dealer. If you lack the necessary knowledge and
tools, always consult a specialist dealer.
We recommend that maintenance work and repairs be carried
out only by a specialist dealer.
Only use tools, accessories or attachment devices which are
permitted by the manufacturer of this device or technically
similar parts, otherwise there may be a danger of accidents
resulting in personal injury or damage to the device. If you
have any questions, you should contact a specialist dealer.
Original tools, accessories and spare parts are optimally
matched to the device and the user's requirements.
The petrol ride-on lawnmower should be checked by the
specialist dealer once a year.
Keep warning and instruction labels clean and legible at all
times. Damaged or lost stickers must be replaced with new
original ones. If a component is replaced by a new part, make
sure that the new part has the same stickers.
For safety reasons, fuel-carrying components (fuel line, fuel
valve, fuel tank, tank plug, connections, etc.) must be checked
regularly for damage and leaks and replaced by a specialist
if necessary.
Before starting work on or near electrical components,
disconnect the battery connection cable (24) from the engine
connection cable (24a).
The device is equipped with numerous safety features. These
devices must not be removed or modified (bypassed, etc.)
and must be checked at regular intervals. Work on the safety
devices may only be carried out by a specialist.
Keep all nuts, pins and screws, especially the blade fixing
screw, firmly tightened so that the device is in a safe operating
status.
