ASSEMBLY MANUAL

CAUTION! Follow the steps below during the assembly and use tools supplied with the
product.
Prepare sufficient space for the assembly operation. It is advisable to assemble the product with
another person because of the weight of some elements.

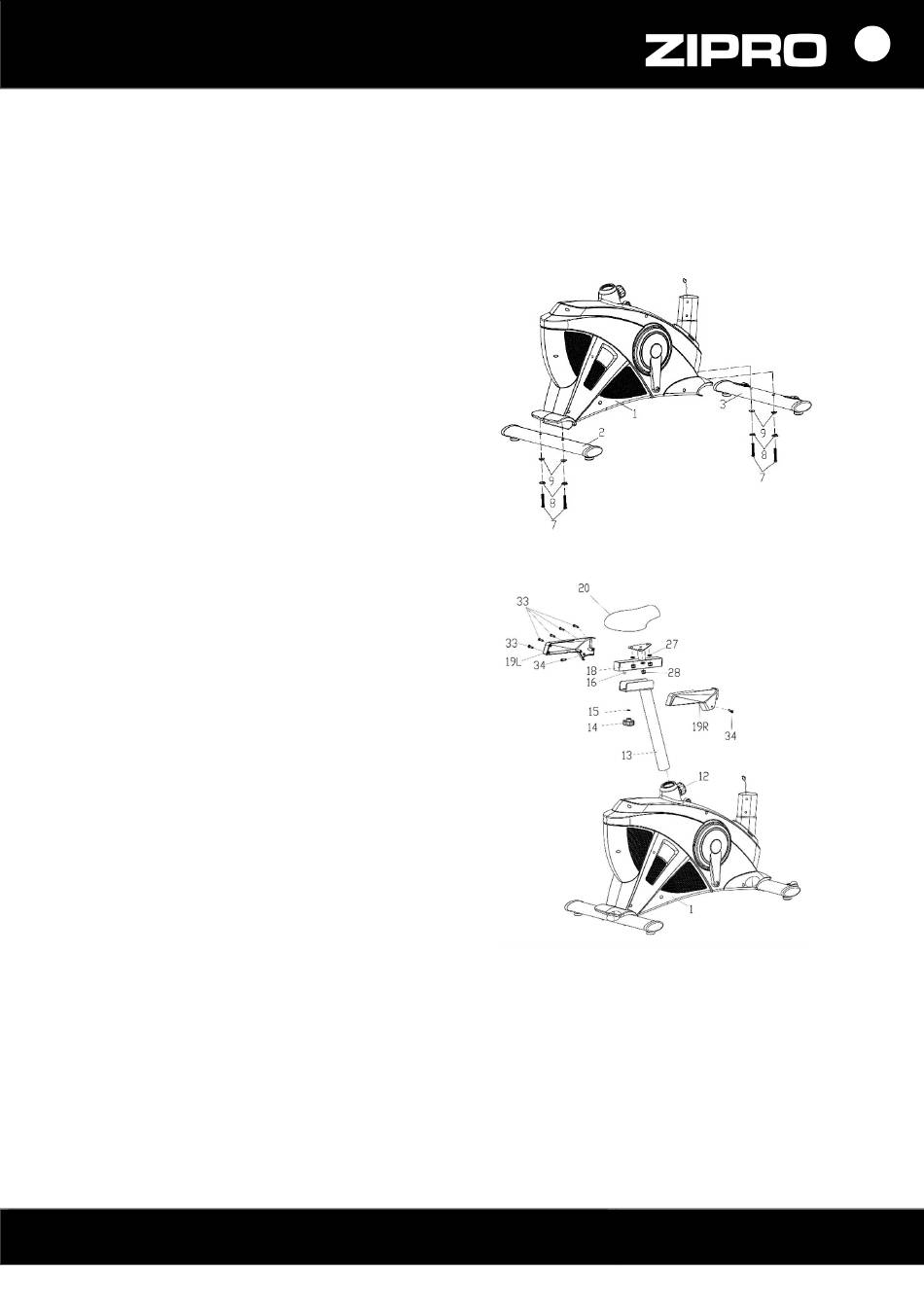

STEP 1.
Fix the rear (2) and front base (3) to the main frame
(1) using hexagonal bolts (7), curved washers (8),
and hexagonal bolt nuts (9).
ATTENTION! Remove any plastic
or cardboard safety inserts before assembly.
STEP 2.
Fix the saddle (20) and a towel holder (42) to the
saddle guide (18) using locknuts (28) and flat
washers (27). Fix the guide (18) with the saddle (20)
to the saddle column (13).
Set the saddle to the right position and lock it with
the horizontal adjustment knob (14), washer (15)
and U-bracket for horizontal saddle positioning
(16).
Slide the column (13) with the saddle (18) into the
rear part of the main frame. Position the saddle at
the desired height and lock it with the vertical
adjustment knob (12).
Using the cross-head bolts (33 and 34), screw the
left and right saddle cover (19 L/P) to the saddle
column (13).
CAUTION! Do not exceed the maximum and
minimum height when adjusting saddle height.
CAUTION! Before using the device, make sure the
saddle (20) is stable in the guide (18).
