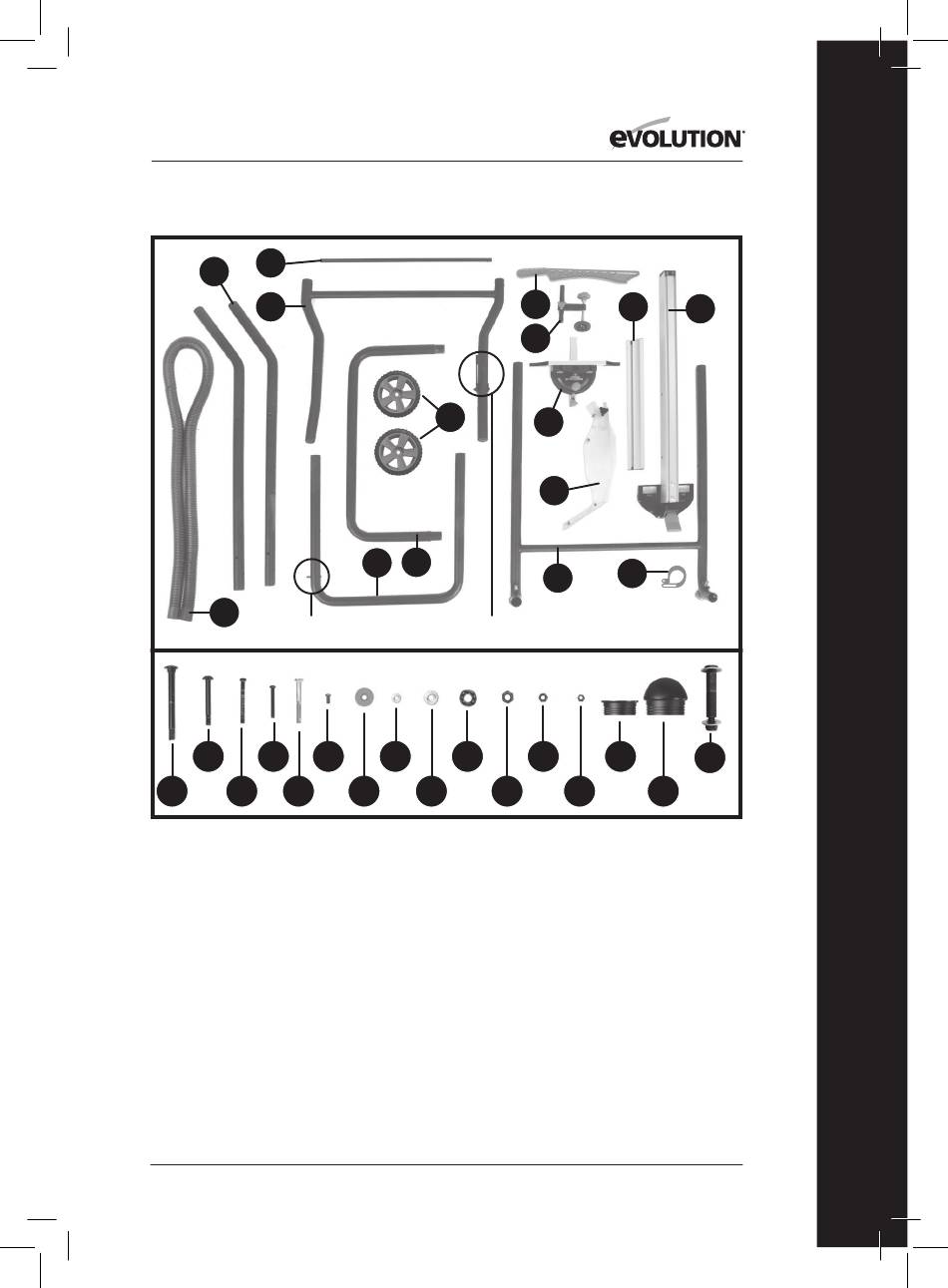

WHAT'S IN THE BOX

2
1
3
15
LATCHING PIN
B D F
A C E
1. STAND COMPONENT
2. STAND COMPONENT
3. STAND COMPONENT
4. STAND COMPONENT
5. STAND COMPONENT
6. STAND COMPONENT
7. WHEELS
8. DUST EXTRACTION HOSE CLIP
9. BLADE GUARD
10. MITRE GAUGE
11. ANTI VIBRATION DEVICE
12. PUSH STICK
13. RIP FENCE
14. RIP FENCE FACE PLATE
15. DUST EXTRACTION HOSE
12
11
7
4 5
LOCKING LATCH
H J
G I K
X2 A. M8 X 78MM BOLT
X1 B. M6 X 53MM BOLT
X1 C. M5 X 50MM BOLT
X1 D. M5 X 40MM BOLT
X1 E. M6 X 55MM BOLT
X1 F. M5 X 10MM BOLT
X2 G. ORANGE FINGER NUT
X1 H. SMALL WASHER
X1 I. LARGE WASHER
X1 J. SPACER
X1 K. M8 NUT
X1 L. M6 NUT
X1 M. M5 NUT
X1 N. FLAT END CAPS
X1 O. ROUND END CAPS
P. WHEEL BOLTS
13
14
13
10
9
8
6
L N
P
M O
EN
X8
X4
X2
X4
X2
X1
X2
X2
X4
X8
X8
X4
X7
X6
X2
X2
