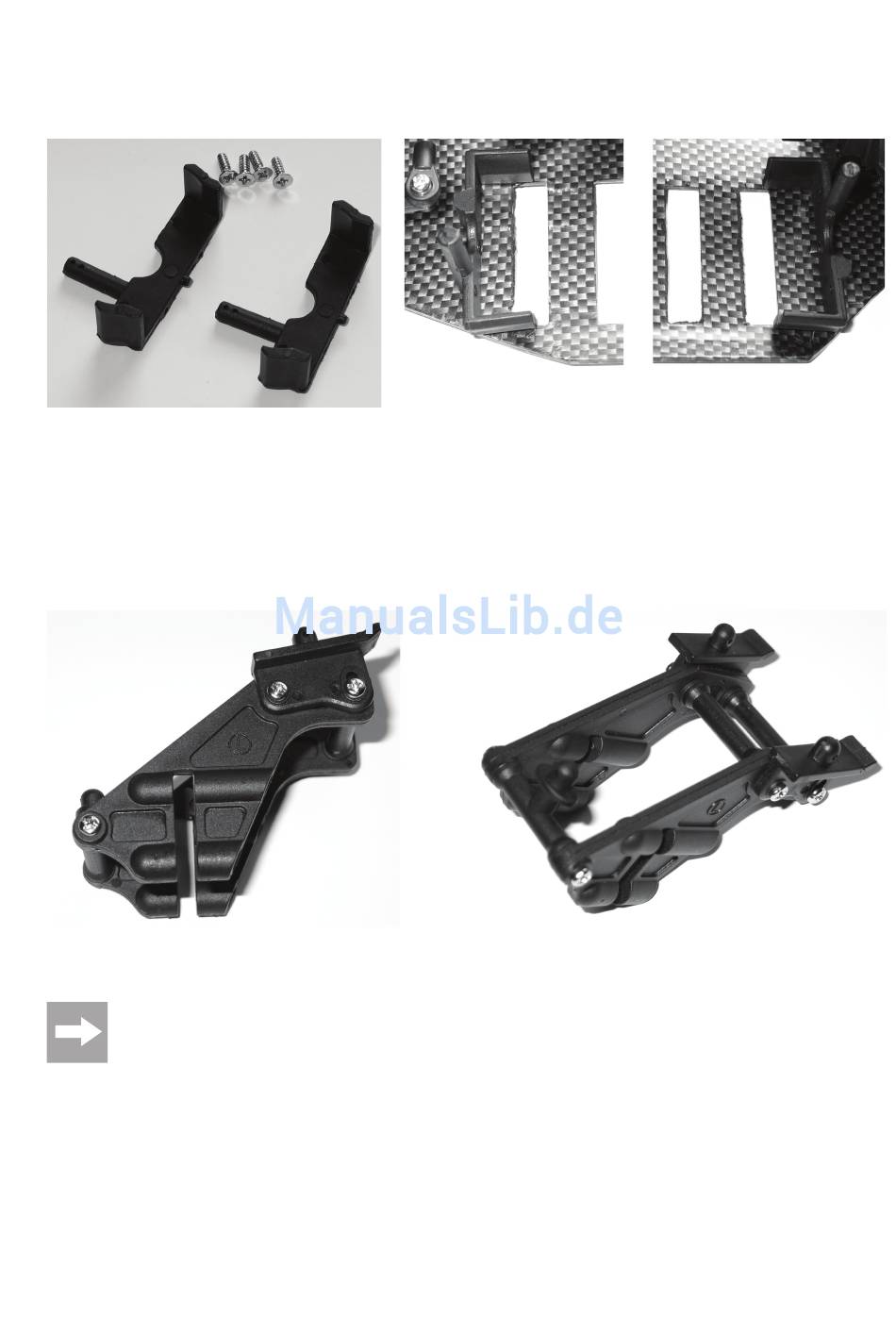

l) Rechargeable battery bracket

Attach the battery brackets left and right of the 6 opening in the chassis. To do so use 2 counter-sunk self-tapping
screws for each (thread length 8 mm).

m) Rear spoiler mount

There is a pin for mounting the car body on the rear spoiler mount. Attach the two sides together as shown in the figure.
The left side part is marled with an "L" and the right with "R". Use a total of 6 self-tapping screws (thread length 12mm).
The completed mount is placed over the rear shock tower and then affixed with four long self-tapping screws (thread
length 15mm).
Fix the rear spoiler supplied to the spoiler mount using two split pins.
The rear spoiler angle can be adjusted through several settings using the mechanism integrated into the
mount.
62
