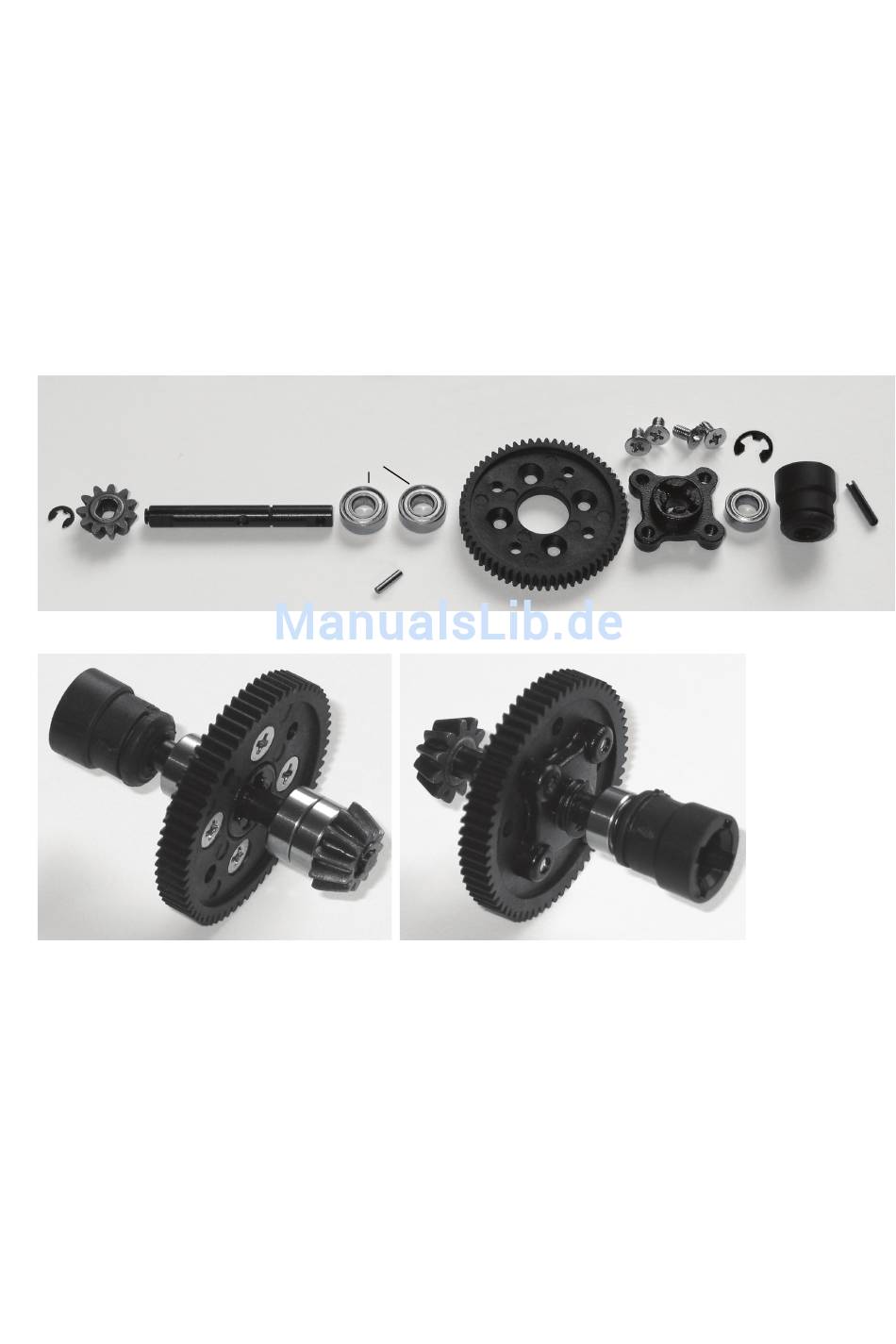

Install the drive axle as shown in the figure. Place the "Z1" cog in the correct orientation on the axle "AC2" and affix it
there with the small securing ring "SR1". Then place the two bearings "K2" (5 x 11 x 4mm) onto the axle.
Screw the "Z2" cog and the actuator "A2" together with the four short countersunk screws "S3".
Then slot the short chrome coloured pin "ST2" into the corresponding opening on the axle "AC2". Then slide the fully
mounted cog "Z2" and the the "A6" actuator onto the axle "AC2" in such a manner that the cross-shaped opening in
the actuator "A6" surrounds the "ST2" pin. Transmission of power between the axle "AC2" and the actuator "A6" is
carried out via the "ST2" pin.
Secure the actuator "A6" and the cog "Z2" using the securing ring "SR2".
Finally push the last single bearing "K3" onto the axle "AC2" and then the plastic sheath "A5" (ensure correct orientation,
the axle fits through the flattened area in one position only inside the sheath).
Then secure the plastic sheath "A5" to the axle with the long black split pin "ST1".
S3 (4x)
SR2
Z2
A5
ST1
K2
SR1 Z1
AC2
K3
A6
ST2
Here again are detailed views of both sides of the fully constructed rear drive axle:
Above all you should ensure the correct positioning of the actuator "A6" in the cog "Z2" and how this combination is
then placed on the axle "AC2".
Don't forget to insert the "ST2" pin into the corresponding hole in the axle "AC2" and then to secure the "AC6" and "Z2"
combination with the "SR2" securing ring.
50
