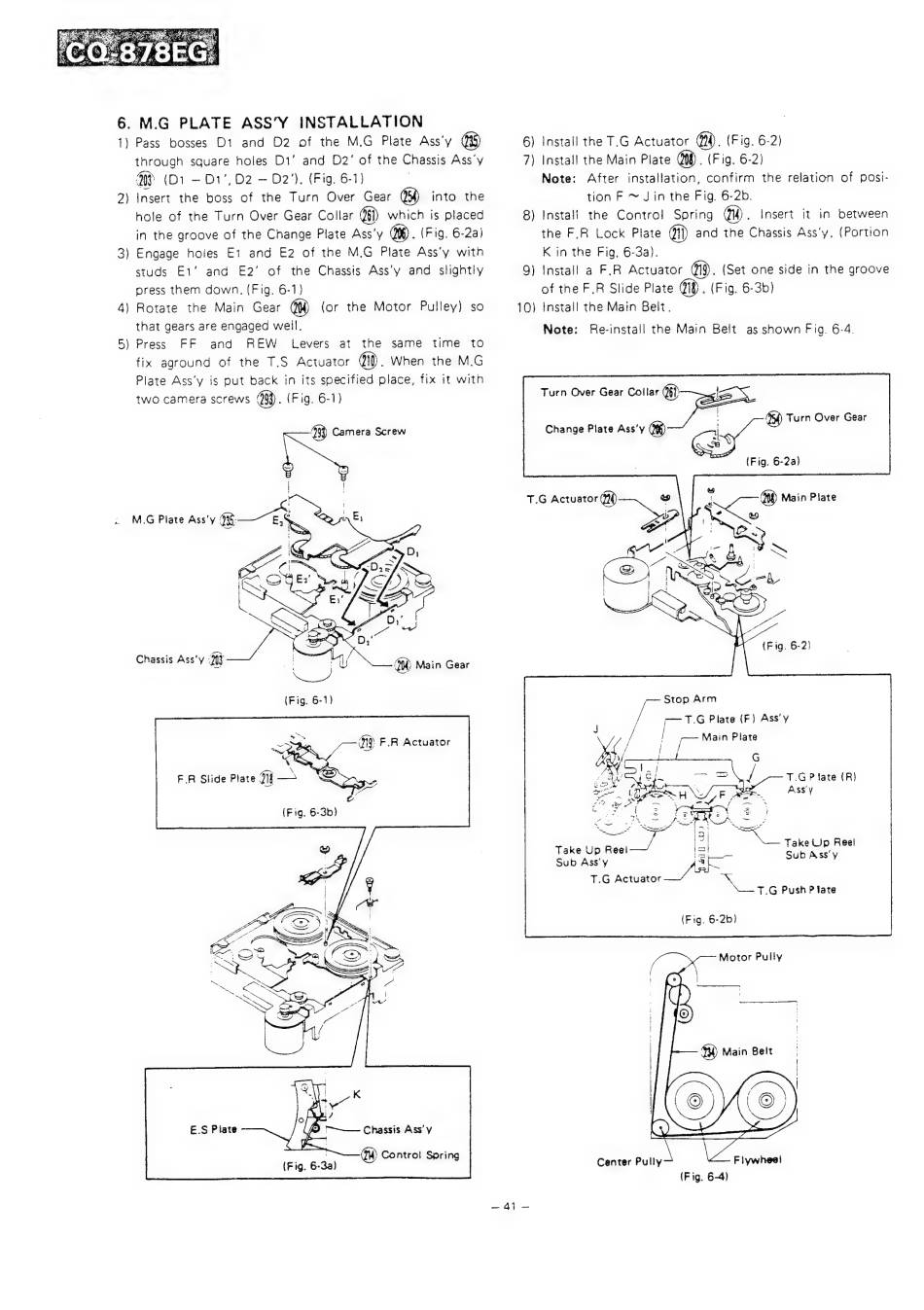

6. M.G
PLATE
ASS'YY
INSTALLATION
1) Pass
bosses
D1
and
D2 of the M.G
Plate Ass'y (5)
through square holes D1' and D2' of the Chassis Ass'y
4h (D1 — 01", 02 — D2'), (Fig. 6-1)
2) Insert the boss of the Turn Over Gear Q)) into the
hole of the Turn Over Gear Collar Q§]) which is placed
in the groove of the Change Plate Ass'y (06) (Fig. 6-2a)
3) Engage
holes
E1 and E2 of the M.G Plate Ass'y with
studs
E1' and
E2'
of the Chassis
Ass'y and
slightly
oress them down, (Fig. 6-1)
4) Rotate
the Main
Gear
QM) (or the Motor
Pulley}
so
that gears are engaged weil.
5) Press
FF
and
REW
Levers
at the
same
time
to
fix aground
of the T.S Actuator Qi . When the M.G
Plate Ass'y is put back in its specified place, fix it with
two camera screws 193). (Fig. 6-1)
0) Camera Screw
Chassis Ass'y 3
£.S Plate
™——— Chassis Ass' y
2) Control Spring
(Fig. 6-3a)
6) Install the T.G Actuator ih). (Fig. 6-2)
7) Install the Main Plate (0d). (Fig, 6-2)
Note:
After
installation, confirm
the relation of posi-
tion F ~ Jin the Fig. 6-2b.
8) Install
the
Control
Spring
MM.
Insert it in between
the F.R Lock Plate @f}) and the Chassis Ass'y. (Portion
K in the Fig, 6-3a).
Q) Install
a F.R Actuator
9). (Set one side in the groove
of the F.R Slide Plate Qi . (Fig. 6-3b)
10) Install the Main Belt.
Note:
Re-install the Main Belt
as shown Fig. 6-4.
Turn Over Gear Collar (})
{
|
/
Turn Over Gear
Change Plate Ass'y 06)
oH)
3
(Fig. 6-2a)
T.G Actuator
—
Stop Arm
Plate (F) Ass'y
-—- Main Plate
)
G
T.G Plate (R}
ASS'y
Take Up Reei
Sub Ass'y
T.G Actuator
Sub Ass'y
Ne T.G Push P fate
(Fig. 6-2b)
Motor Pully
Fiywheei
(Fig. 6-4)
Center Pully
one.
