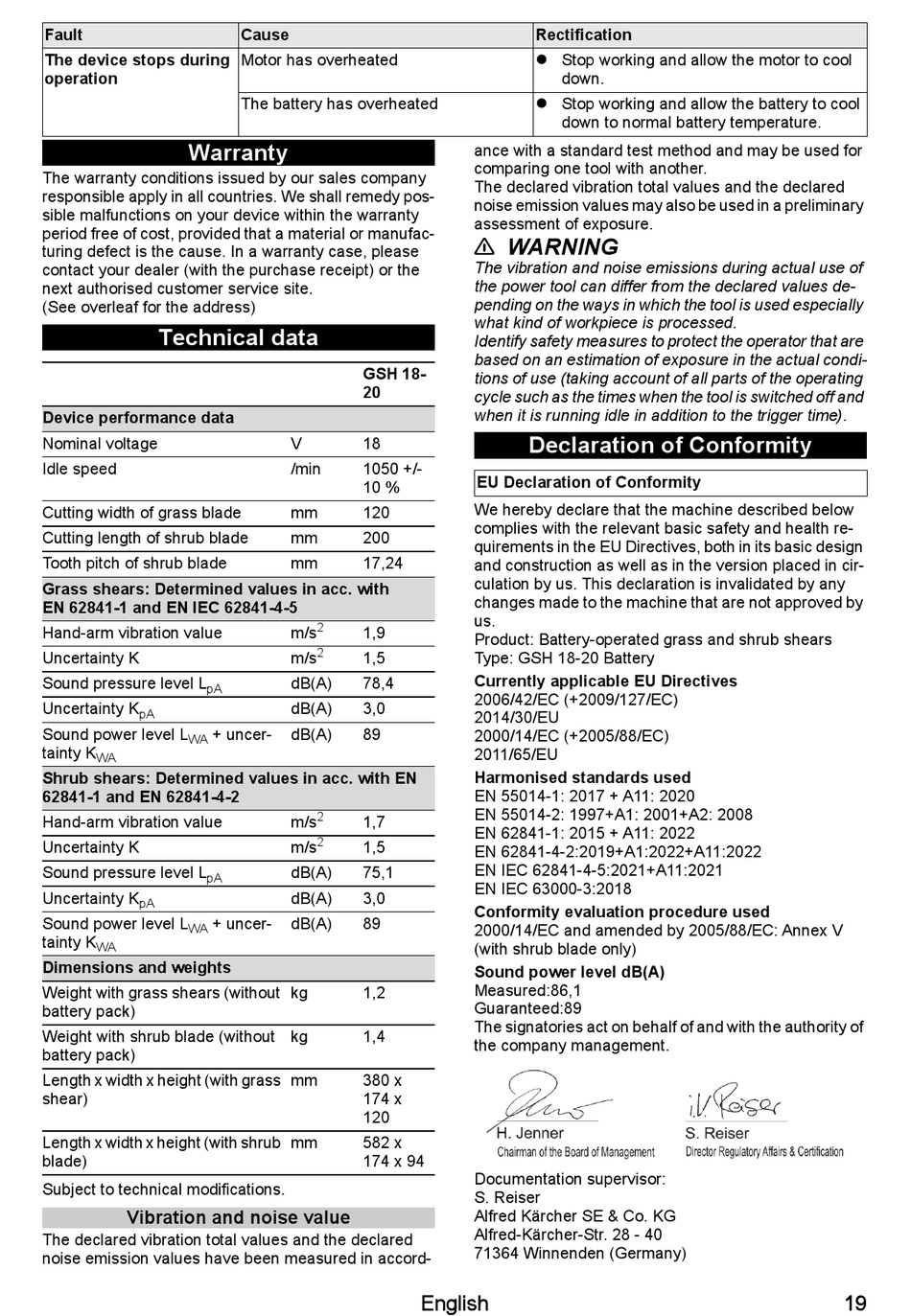

Kärcher GSH 18-20 Battery Bedienungsanleitung Seite 19

Fault
The device stops during
operation
Warranty
The warranty conditions issued by our sales company
responsible apply in all countries. We shall remedy pos-
sible malfunctions on your device within the warranty
period free of cost, provided that a material or manufac-
turing defect is the cause. In a warranty case, please
contact your dealer (with the purchase receipt) or the
next authorised customer service site.
(See overleaf for the address)
Technical data
Device performance data
Nominal voltage
Idle speed
Cutting width of grass blade
Cutting length of shrub blade
Tooth pitch of shrub blade
Grass shears: Determined values in acc. with
EN 62841-1 and EN IEC 62841-4-5
Hand-arm vibration value
Uncertainty K
Sound pressure level L
pA
Uncertainty K
pA
Sound power level L + uncer-
WA
tainty K
WA
Shrub shears: Determined values in acc. with EN
62841-1 and EN 62841-4-2
Hand-arm vibration value
Uncertainty K
Sound pressure level L
pA
Uncertainty K
pA
Sound power level L + uncer-
WA
tainty K
WA
Dimensions and weights
Weight with grass shears (without
battery pack)
Weight with shrub blade (without
battery pack)
Length x width x height (with grass
shear)
Length x width x height (with shrub
blade)
Subject to technical modifications.
Vibration and noise value
The declared vibration total values and the declared
noise emission values have been measured in accord-
Cause
Motor has overheated
The battery has overheated
GSH 18-
20
V 18
/min 1050 +/-
10 %
mm 120
mm 200
mm 17,24
2
m/s 1,9
2
m/s 1,5
dB(A) 78,4
dB(A) 3,0
dB(A) 89
2
m/s 1,7
2
m/s 1,5
dB(A) 75,1
dB(A) 3,0
dB(A) 89
kg 1,2
kg 1,4
mm 380 x
174 x
120
mm 582 x
174 x 94
Rectification
 Stop working and allow the motor to cool
down.
 Stop working and allow the battery to cool
down to normal battery temperature.
ance with a standard test method and may be used for
comparing one tool with another.
The declared vibration total values and the declared
noise emission values may also be used in a preliminary
assessment of exposure.
WARNING
The vibration and noise emissions during actual use of
the power tool can differ from the declared values de-
pending on the ways in which the tool is used especially
what kind of workpiece is processed.
Identify safety measures to protect the operator that are
based on an estimation of exposure in the actual condi-
tions of use (taking account of all parts of the operating
cycle such as the times when the tool is switched off and
when it is running idle in addition to the trigger time).
Declaration of Conformity
EU Declaration of Conformity
We hereby declare that the machine described below
complies with the relevant basic safety and health re-
quirements in the EU Directives, both in its basic design
and construction as well as in the version placed in cir-
culation by us. This declaration is invalidated by any
changes made to the machine that are not approved by
us.
Product: Battery-operated grass and shrub shears
Type: GSH 18-20 Battery
Currently applicable EU Directives
2006/42/EC (+2009/127/EC)
2014/30/EU
2000/14/EC (+2005/88/EC)
2011/65/EU
Harmonised standards used
EN 55014-1: 2017 + A11: 2020
EN 55014-2: 1997+A1: 2001+A2: 2008
EN 62841-1: 2015 + A11: 2022
EN 62841-4-2:2019+A1:2022+A11:2022
EN IEC 62841-4-5:2021+A11:2021
EN IEC 63000-3:2018
Conformity evaluation procedure used
2000/14/EC and amended by 2005/88/EC: Annex V
(with shrub blade only)
Sound power level dB(A)
Measured:86,1
Guaranteed:89
The signatories act on behalf of and with the authority of
the company management.
Documentation supervisor:
S. Reiser
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
English 19
