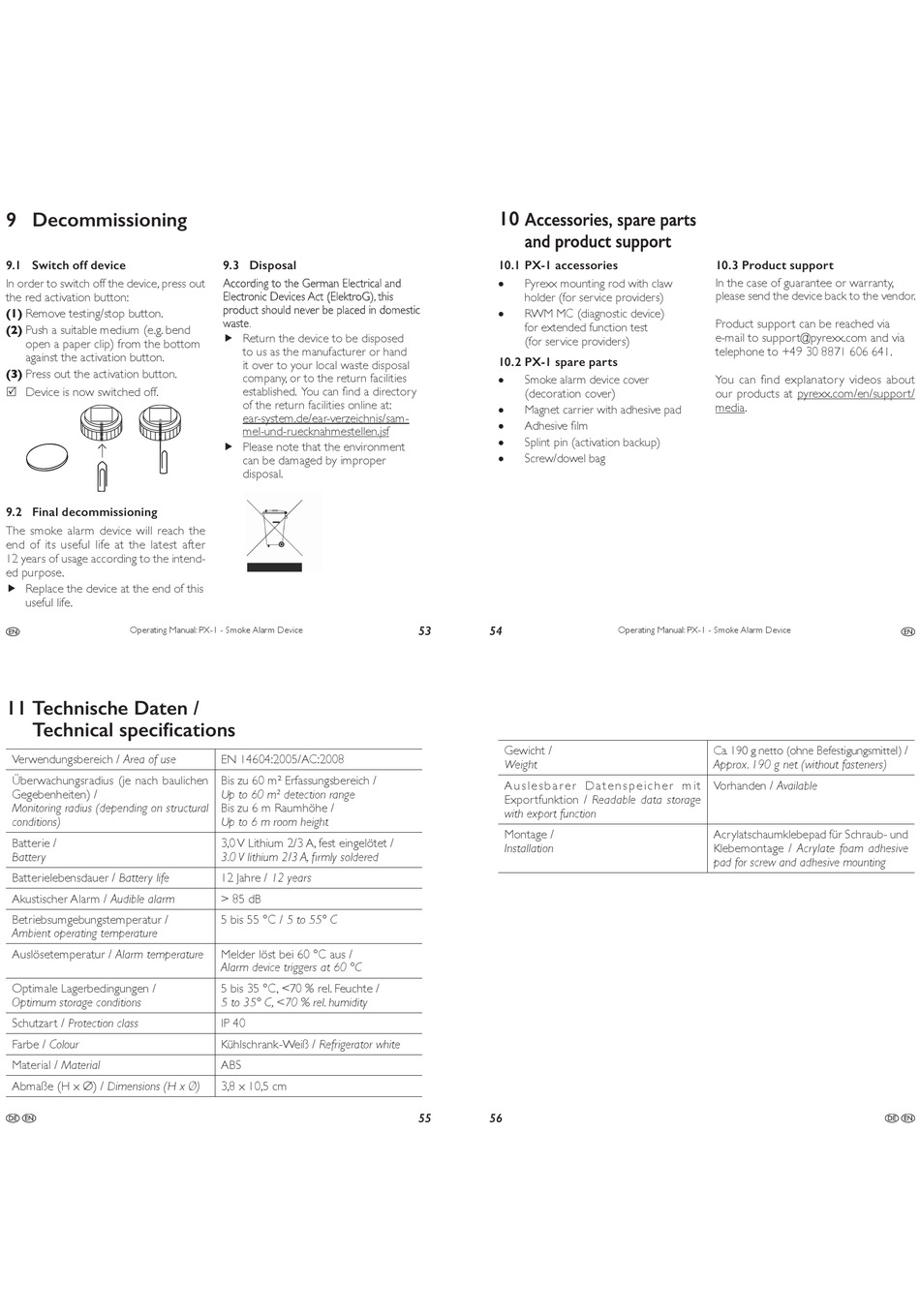

9 Decommissioning
9.1 Switch off device
In order to switch off the device, press out
the red activation button:
(1) Remove testing/stop button.
(2) Push a suitable medium (e.g. bend
open a paper clip) from the bottom
against the activation button.
(3) Press out the activation button.
5 Device is now switched off.
9.2 Final decommissioning
The smoke alarm device will reach the
end of its useful life at the latest after
12 years of usage according to the intend-
ed purpose.
f Replace the device at the end of this
useful life.
Operating Manual: PX-1 - Smoke Alarm Device
11 Technische Daten /
Technical speci cations
Verwendungsbereich / Area of use
Überwachungsradius (je nach baulichen
Gegebenheiten) /
Monitoring radius (depending on structural
conditions)
Batterie /
Battery
Batterielebensdauer / Battery life
Akustischer Alarm / Audible alarm
Betriebsumgebungstemperatur /
Ambient operating temperature
Auslösetemperatur / Alarm temperature
Optimale Lagerbedingungen /
Optimum storage conditions
Schutzart / Protection class
Farbe / Colour
Material / Material
Abmaße (H x Ø) / Dimensions (H x Ø)
9.3 Disposal
f Return the device to be disposed
to us as the manufacturer or hand
it over to your local waste disposal
company, or to the return facilities
established. You can nd a directory
of the return facilities online at:
ear-system.de/ear-verzeichnis/sam-
mel-und-ruecknahmestellen.jsf
f Please note that the environment
can be damaged by improper
disposal.
EN 14604:2005/AC:2008
Bis zu 60 m² Erfassungsbereich /
Up to 60 m² detection range
Bis zu 6 m Raumhöhe /
Up to 6 m room height
3,0 V Lithium 2/3 A, fest eingelötet /
3.0 V lithium 2/3 A, frmly soldered
12 Jahre / 12 years
> 85 dB
5 bis 55 °C / 5 to 55° C
Melder löst bei 60 °C aus /
Alarm device triggers at 60 °C
5 bis 35 °C, <70 % rel. Feuchte /
5 to 35° C, <70 % rel. humidity
IP 40
Kühlschrank-Weiß / Refrigerator white
ABS
3,8 x 10,5 cm
10
10.1 PX-1 accessories
•
Pyrexx mounting rod with claw
holder (for service providers)
•
RWM MC (diagnostic device)
for extended function test
(for service providers)
10.2 PX-1 spare parts
•
Smoke alarm device cover
(decoration cover)
•
Magnet carrier with adhesive pad
•
Adhesive lm
•
Splint pin (activation backup)
•
Screw/dowel bag
53
54
Gewicht /
Weight
A u s l e s b a r e r D a t e n s p e i c h e r m i t
Exportfunktion / Readable data storage
with export function
Montage /
Installation
55
56
10.3 Product support
In the case of guarantee or warranty,
please send the device back to the vendor.
Product support can be reached via
e-mail to support@pyrexx.com and via
telephone to +49 30 8871 606 641.
You can nd explanatory videos about
our products at pyrexx.com/en/support/
media.
Operating Manual: PX-1 - Smoke Alarm Device
Ca. 190 g netto (ohne Befestigungsmittel) /
Approx. 190 g net (without fasteners)
Vorhanden / Available
Acrylatschaumklebepad für Schraub- und
Klebemontage / Acrylate foam adhesive
pad for screw and adhesive mounting
