WARNING: Ensure that any hose supplying water to the
machine is of a suitable length. Hoses should be routed in
such a way as not to pose a trip or any other form of hazard.
WARNING: Keep liquid away from the tool and any people
in the working area.
Note: The Maximum permitted pressure of the liquid supply
is 5.5 BAR.
Note:
When not in use drain the hose of any residual water. Keep
the tank and parts clean and free of debris.

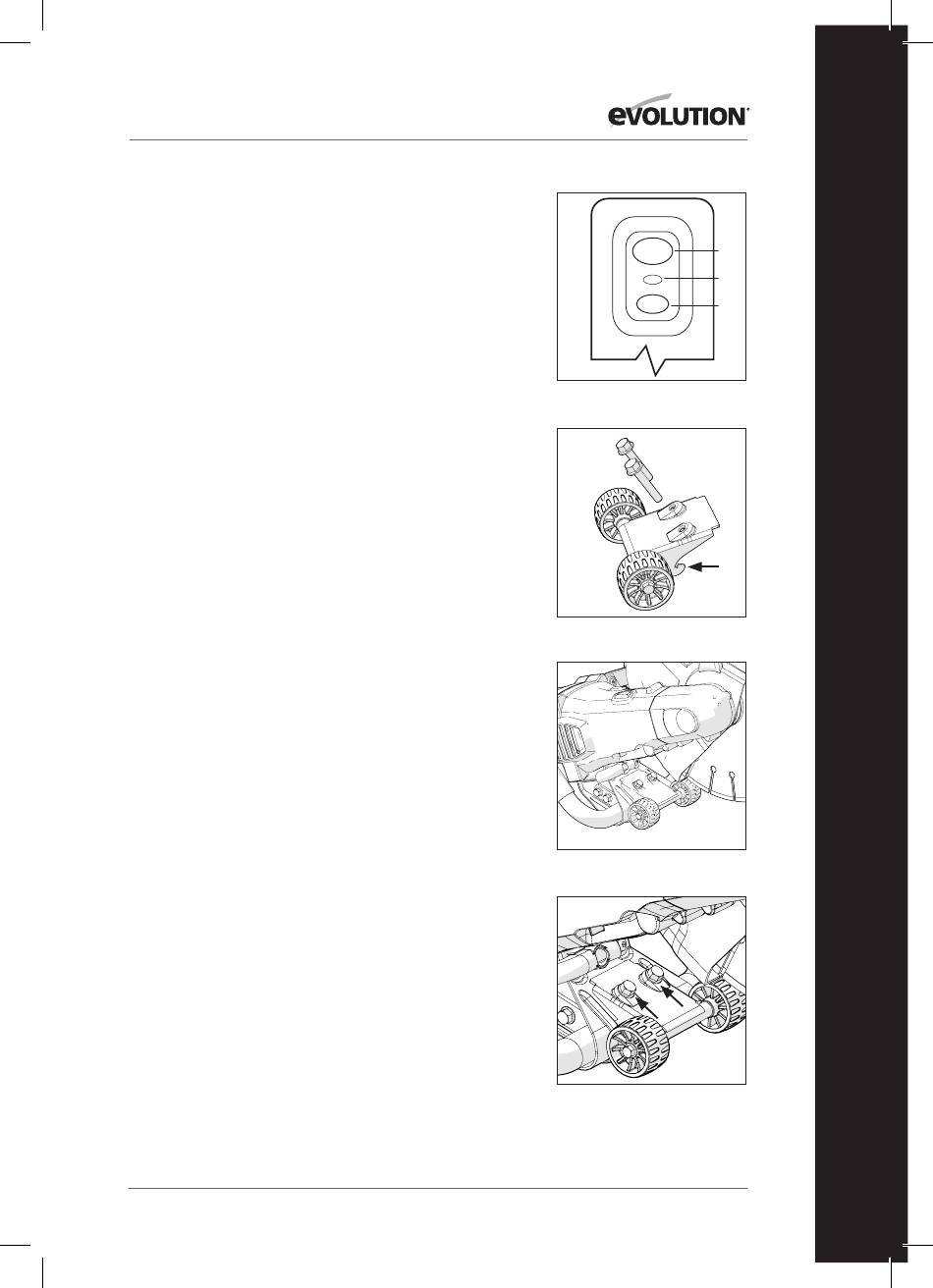

A Residual Current Device (RCD) is fitted to the
R300DCT+ for RCD operation please follow these
instructions:
• When plugging the saw in the RCD will need to be reset
before the saw will power on.
• Plug the saw in, press the reset button on the RCD, there
will be a click. (Fig. 7a)
• The indicator window will change to RED to show the
power is on. (Fig. 7b)
• To test, press the TEST button. Again, there will be a click
and the indicator window will switch to black showing
the power is off. (Fig. 7c)
• Press the reset button again to reset and use the saw.
If the RCD trips during use, simply press RESET.
Note:
TWIN WHEELED UNDERCARRIAGE
(All Evolution machines)
A twin wheeled undercarriage (Fig. 8) is supplied with all
machines. When fitted (Fig. 9) this can provide useful extra
stability (and operator comfort) particularly when cutting
horizontally and at ground level.
It will also ensure that the cutting blade does not touch the
ground surface etc when the machine is laid down to rest
between cuts.
To fit the Undercarriage:
• Insert the hooks (Fig 8a) into the slots on the underside
of the Skid Plate.
• Use the supplied undercarriage bolts to secure the
carriage to the machine. (Fig. 10)
WARNING TEST BEFORE USE
FIG. 7
FIG. 8
FIG. 9
FIG. 10
17
(a)
RESET
(b)
(c)
TEST
(a)
