Schaltplan Hauptplatine; Digital Input - Pluggit Avent D160 Betriebs Und Installationsanleitung

4.6.6.

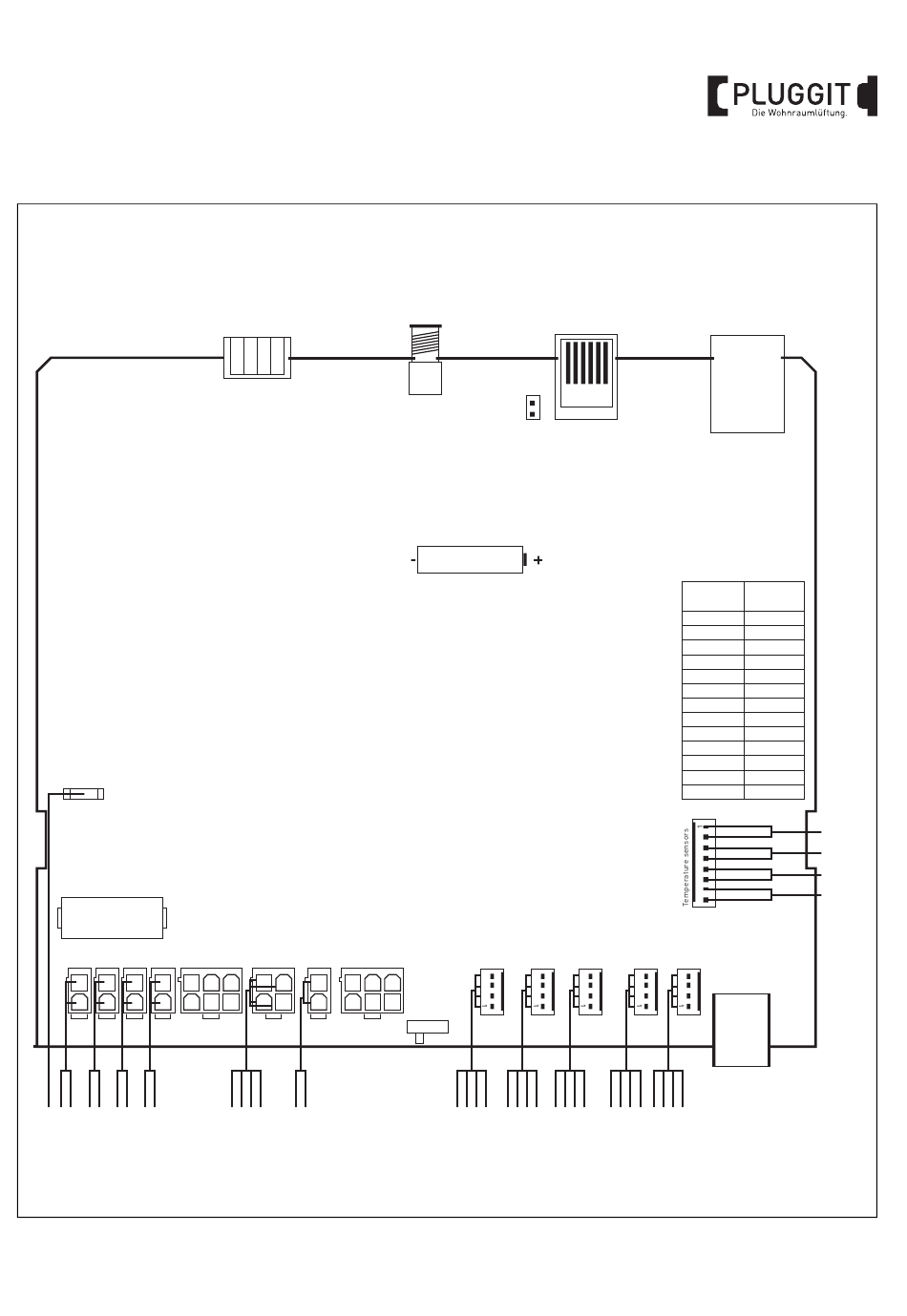

Schaltplan Hauptplatine

J22
PE
F1
T2A
FACTORY ONLY
J2 J3 J6 J7
1 1 1 1
2 2 2 2
230V Pre- FAN1 FAN2 ByPass jumper
AC Heater
PE 1: L 1: L 1: L 1: L
2: N 2: N 2: N 2: N
1: 12vDC/750mA out
2: Input 1
3: Input 2
4: GND
4 3 2 1
J1

Digital input

FACTORY ONLY
J21 J8 J10
1 2 3 1 2 1 1
4 5 6 3 4 2 4
ByPass ByPass ByPass jumper
240VAC 230VAC 12VDC
1: L open 1: 12/0V
2: L close 2: 0/12V
3: Neutral
4: -
ANT
J19
BT1
J20 J16 J17
2 3
5 6
SW2
Control Control
12VDC A R Fan 1
1: Tacho 1: Tacho
2: V Fan 2: V Fan
3: V Ref 3: V Ref
4: GND 4: GND
1: Power
2: Gnd
3: Shield
4: RS485_A
5: RS485_B
6: Gnd
6 1
RS485
Temp C°
J9
J18 J23 J5
Pressure VOC RH%
Fan 2
1: Power 1: Power 1: Power
2: PR 1 2: SCK 2: SCK
3: PR 2 3: SDA 3: SDA
4: GND 4: GND 4: GND
LAN
Resistance
(+/- 1%)
-30 25.388
-25 19.402
-20 14.961
-15
11.644
-10
9.133
-5 7.198
0 5.716
5 4.571
10
3.682
15
2.987
20
2.437
25 2.000
30 1.651
a:S1 / b:S3
a:S2 / b:S4
a:S3 / b:S1
a:S4 / b:S2
USB
M+P-26A-1141
19
BIA Avent D160
